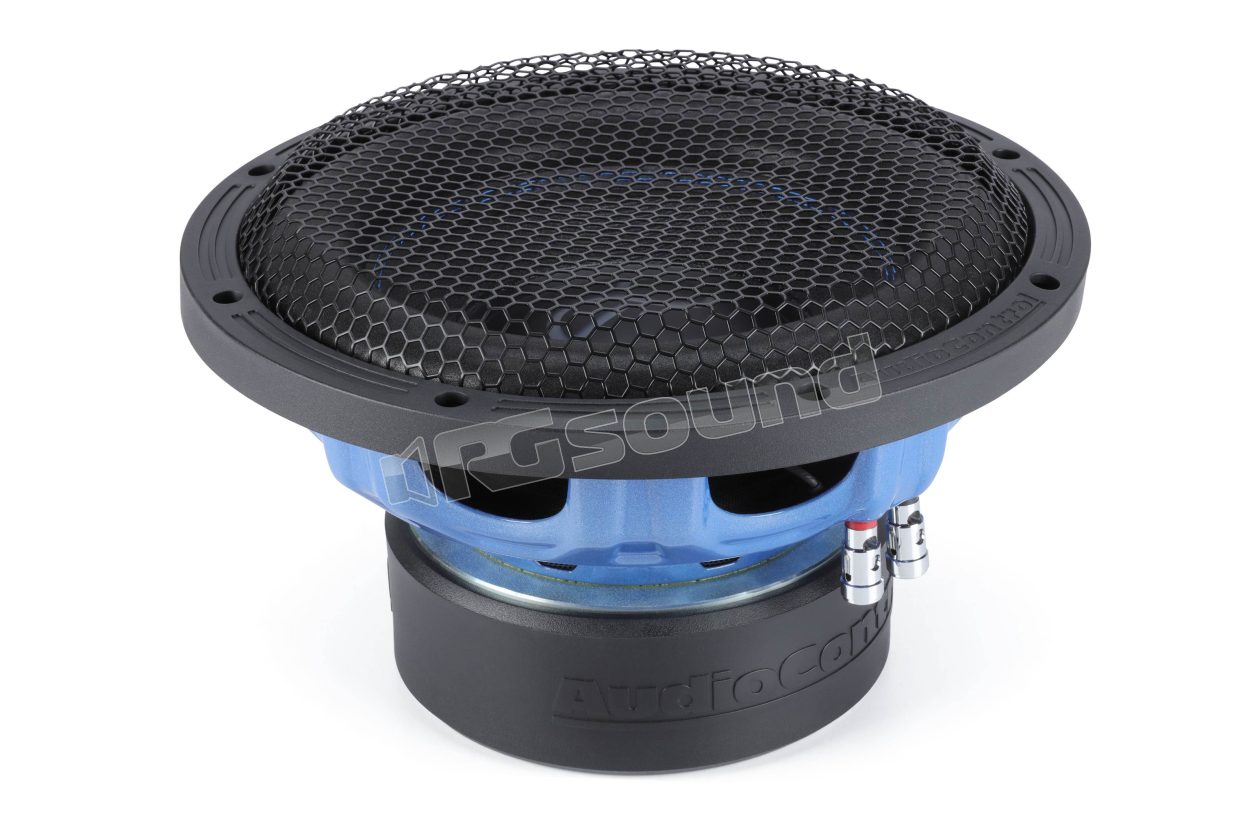

SPK-10S2 25cm subwoofer, 2 Ohm, Spike series

Audiocontrol
Your price:
€ 284,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
700 Watt
RMS Power
500 Watt
Frequency Response
20 - 200 Hertz
Impedance
2 Ohm
Installation Depth
135 mm
Woofer Material
Cellulosa trattata

AudioControl SPK-10S2 subwoofer 25cm 2 Ohm high performance 500W RMS

Are you a music enthusiast who loves the rumble of bass frequencies? Then look no further: the subwoofers in the Spike series are exactly what you need! For over 45 years AudioControl has helped people bring their car audio to the next level, and this line of speakers will surely improve the audio system of any vehicle.

AudioControl is proud to present the ultimate in versatility and durability with the AudioControl Spike series subwoofers. These high-performance subwoofers are available in a variety of sizes and power ratings to meet your audio needs. Whatever music genre you prefer, the Spike series will take your listening experience to the next level. These subwoofers have been designed to deliver clear and precise bass, ensuring an engaging listening experience: why wait? Fill your trunk today with Spike series subwoofers and maximize your listening pleasure!

Spike series subwoofers feature a 3-layer voice coil support capable of handling high power. This means you can turn up the volume and continue to enjoy thrilling bass.

SPK-10S2 Features

  • Wide excursion design for ultra-deep bass
  • Paper cone with fiber matrix and mica coating
  • 3-layer heat-resistant voice coil holder
  • Dual damping system for linear bass reproduction
  • Dual dust cap system for enclosure compression control
  • Efficient and durable motor design
  • Removable subwoofer grille included

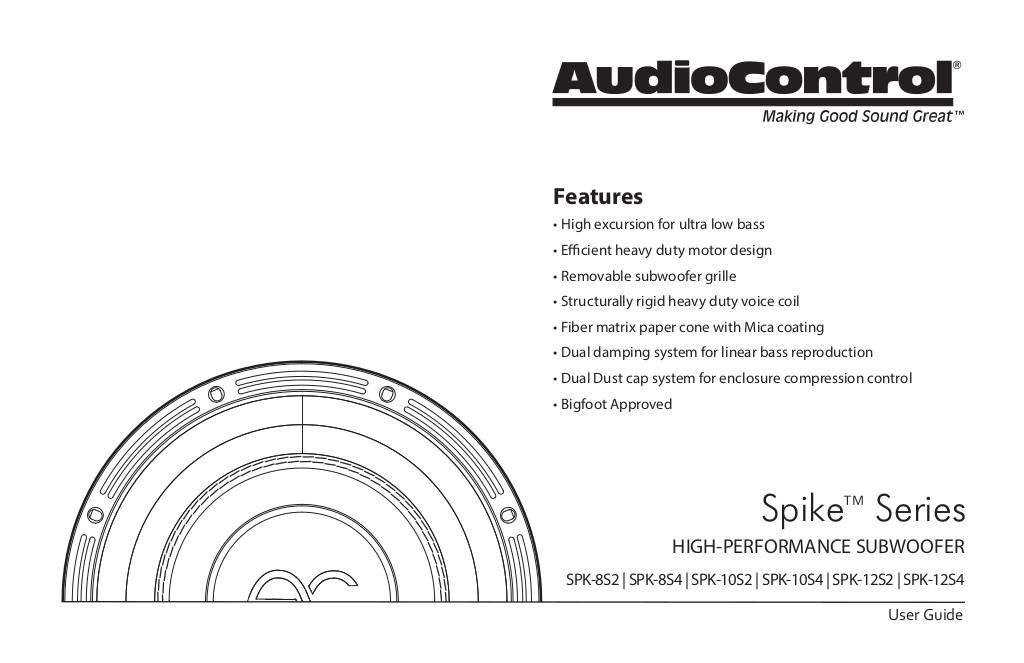

Manuale utente

n-20260720171727-spike-series-ug-913-178-0-rev-b-22-spk-v1.pdf

AudioControl SPK-10S2 Technical Specifications

  • Impedance 2 Ohm
  • Power (Pe) 500 W RMS / 700 W max
  • Frequency response 20-200 Hz
  • Voice coil diameter 2.5 inches/63.5 mm
  • Displacement 0.0626 cu ft/ 1.771 Ltr

Dimensions

  • Overall dimensions: 10.748 in/ 273 mm
  • Mounting hole diameter: 9.25 in/ 234 mm
  • Mounting depth: 5.32 inches / 135 mm
  • Mounting height (without grille): 0.59 inches / 15 mm
  • Mounting height (with grille): 1.30 inches / 33 mm
  • Motor diameter (with cover): 6.41 inches / 163 mm

PACKAGE CONTENTS: SPK-10S2 or SPK-10S4, manual, warranty

Recommended ported enclosure

  • External dimensions: 24.00″ L × 13.00″ H × 11.25″ D
  • Net internal volume: 1.01 ft³
  • Total internal volume: 1.36 ft³
  • Gross external volume: 2.03 ft³
  • Material thickness: 0.75″
  • Resonance frequency: 37 Hz
  • Port area: 17.25 square inches
  • Port inlet: 1.50″ L × 11.50″ H
  • Port length: 28.50″
  • F3 (Hz): 30

Recommended sealed enclosure

  • External dimensions: 20.00″ L × 13.00″ H × 11.00″ D
  • Net internal volume: 1.11 ft³
  • Total internal volume: 1.17 ft³
  • Gross external volume: 1.66 ft³
  • Material thickness: 0.75″
  • F3 (Hz): 45.96
  • Qtc: 0.705
