SPG-17CS

Alpine

Discontinued

Your price:
€ 115,90
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
68 - 20000 Hertz
Woofer Size
165 mm
Tweeter Size
20 millimetri
MAX Power
280 Watt
RMS Power
70 Watt
Sensitivity
88,5 dB
Impedance
4 Ohm
Woofer Material
Polypropylene Cone Pearl Mica Injection
Tweeter Material
Silk Soft Dome

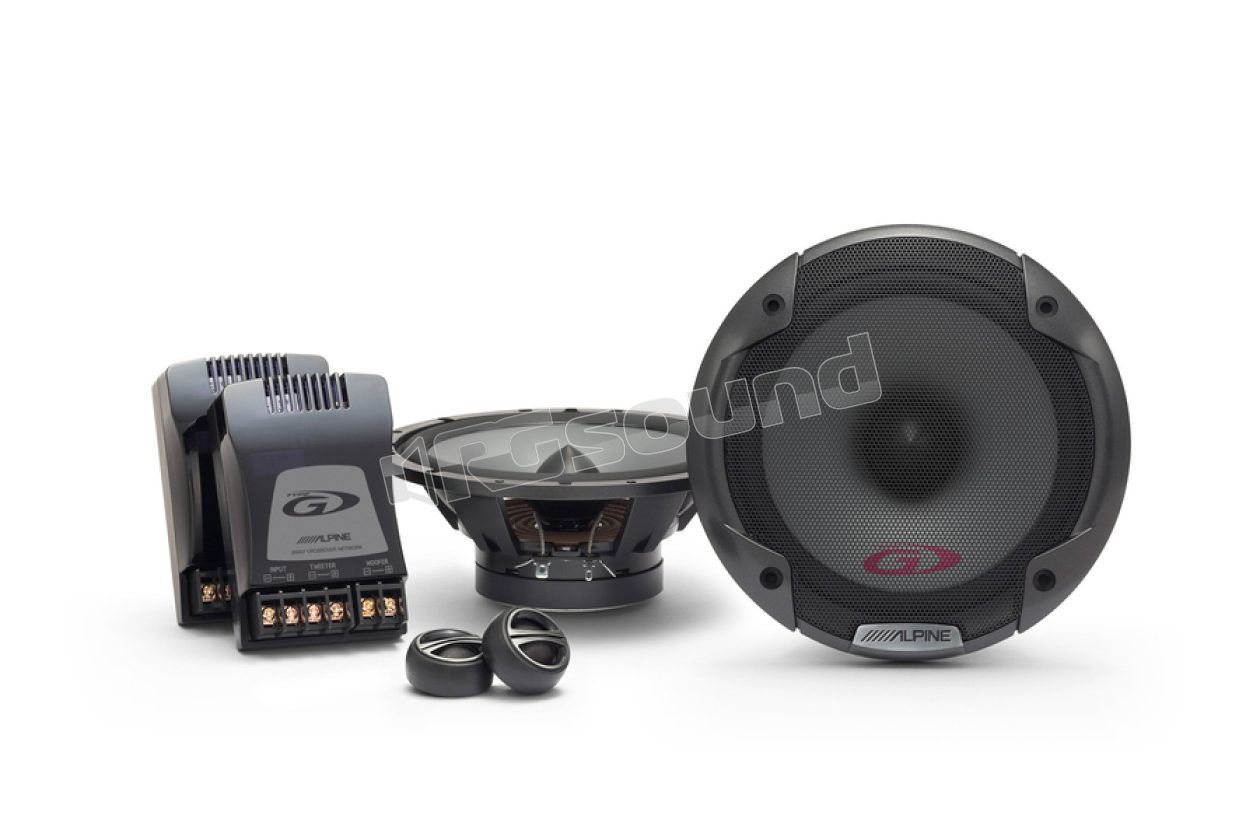

Two-way separate kit with 165 mm midwoofer and 20 mm soft dome tweeter

The new Type-G systems are designed and built to handle maximum power levels. These, thanks to the soft dome tweeter with kapton voice coil wire and the specifically tuned capacitor, offer first-class audio quality.

Easy Installation

These speakers are easier to install compared to other speakers thanks to the rotatable Snap Fit tweeter and a flush-mount bracket that is very simple to install. Additionally, the crossover is very small and can be split into two parts to further reduce size and allow use in the limited spaces found in the latest generation vehicles.

Specifications:

Power Specifications

  • Maximum Power: 280 W
  • RMS Power: 70 W

Dimensions

  • Woofer Installation Diameter: 14.1 cm
  • Woofer Mounting Depth: 6.1 cm

General

  • Frequency Response: 68 Hz to 20 kHz
  • Impedance: 4 Ω
  • Sensitivity: 88.5dB / W (1m)

Tweeter

  • Tweeter Type: 20mm Silk Soft Dome Tweeter
  • Application Type: Flush/Surface Swivel Mount
  • Magnet Material: Neodymium Magnet

Woofer

  • Cone Material: Polypropylene Cone Pearl Mica Injection
  • Voice Coil Type: Square Voice Coil Wire
  • Magnet: Ferrite Magnet
  • Frame: Injection Mold Frame
  • Design: Long Excursion Design

Crossover Network

  • Design: Separated Network Design Possibility
  • Attenuation Control: 3-Level
  • Mounting: Easy-Mount Screw Terminals
Discontinued
