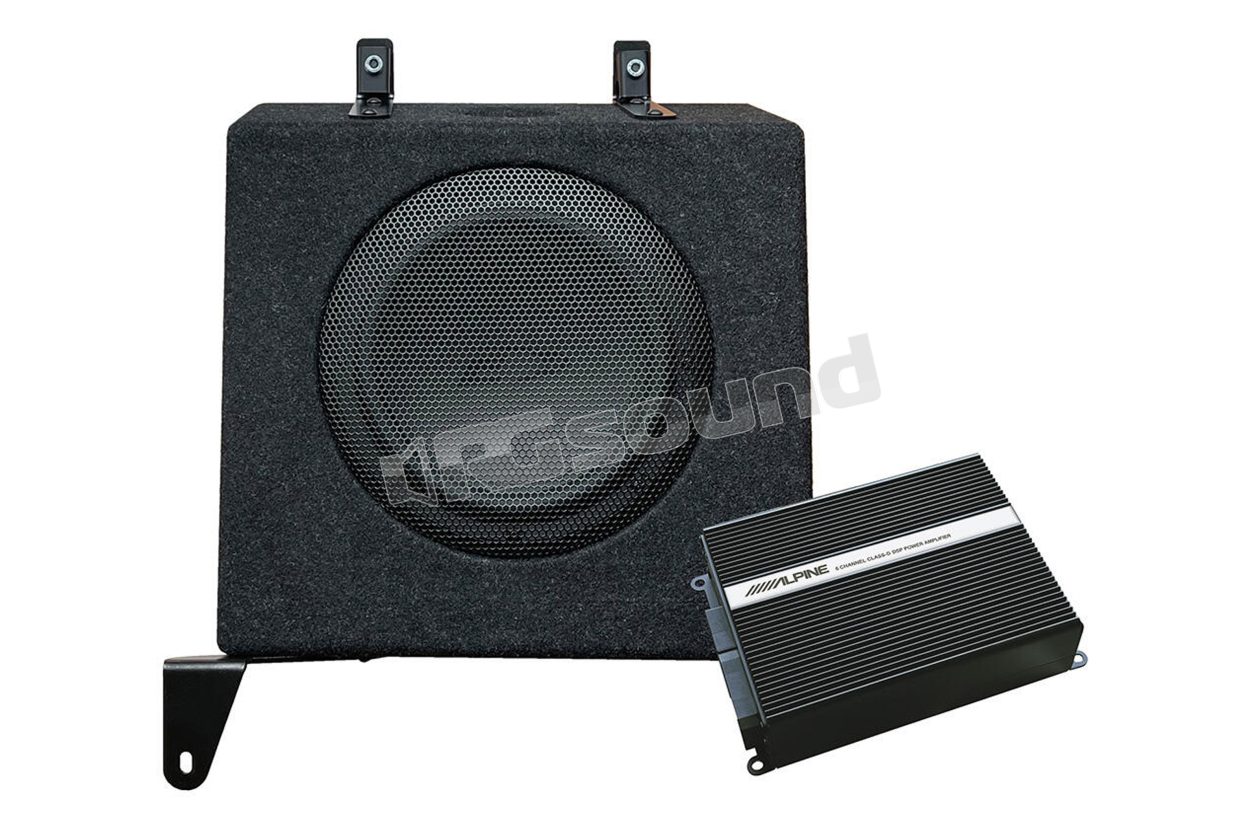

SPC-W84ATRA7-2 enclosed subwoofer and 6-channel DSP amplifier for Ford Transit,Tourneo

Alpine
Your price:
€ 949,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
200 mm
MAX Power
180 Watt
RMS Power
60 Watt
Frequency Response
34 - 1500 Hertz
Sensitivity
91 dB
Impedance
2 + 2 Ohm
Enclosure Size
355 x 330 x 170 mm
Enclosure Type
Sealed Enclosure

Alpine SPC-W84ATRA7-2 subwoofer DSP amplifier 6 channels for Ford Transit 7, Transit 7 Custom, Tourneo 7 Custom

Improve your Alpine Adventure Audio speaker system for Ford Transit 7, Transit 7 Custom, Tourneo 7 Custom with the new 6-channel DSP amplifier SPC-W84AT6-2 PDA-S560 and subwoofer system.

This audio upgrade will add power, dynamics and bass to your existing Alpine speaker system to give you an unprecedented listening experience in your vehicle.

The DSP amplifier is pre-programmed to perfectly adapt to the sound characteristics of Ford Transit 7, Transit 7 Custom and Tourneo 7 Custom models, ensuring perfect audio quality, while the wiring included for original Ford or aftermarket radios with RCA preamp outputs allows quick plug-and-play installation in your vehicle.

The included 180 W subwoofer with wooden enclosure for installation under the passenger seat adds powerful bass.

Enjoy the second generation of Alpine Status audio systems with an even more powerful amplifier.

Alpine SPC-W84ATRA7-2 technical specifications

DSP Amplifier:

  • 6-channel Class D DSP amplifier
  • Rated RMS power CH 1-4 at 4 Ω: 80 W RMS x4 (14.4 V at 1% THD+N)
  • Rated RMS power CH 5-6 at 2 Ω: 120 W RMS x2 (14.4 V at 1% THD+N)
  • Class AB amplification circuits (channels 1-4) and Class D (channels 5+6)
  • 4 high-level inputs
  • Power requirements: 12 V
  • Dimensions: 142 x 40 x 122 mm (176 mm with connectors inserted)
  • Pre-programmed audio settings Ford Transit 7, Transit 7 Custom, Tourneo 7 Custom with EQ and digital time correction
  • Adjustments for vehicles with left-hand or right-hand drive
  • Designed to work with retrofit radios (RCA)
  • Designed to work with original Ford Transit 7, Transit 7 Custom, Tourneo 7 Custom radios (high-power)

Subwoofer:

  • 20 cm (8") dual voice coil subwoofer (2 Ω + 2 Ω)
  • Max power 180 W / RMS power 60 W
  • Frequency response: 34 Hz - 1.5 kHz
  • Includes mounting brackets for installation under the seat
  • 4-pin connection cable included
  • Dimensions: 355 x 330 x 170 mm
  • Sensitivity: 91 dB/W (1 m)
  • Subwoofer grille and installation brackets included

Compatible vehicles:

  • Ford Transit 7 from 2014
  • Ford Transit 7 Custom from 2014
  • Ford Tourneo 7 Custom from 2014
€ 949,00 Price incl. VAT
