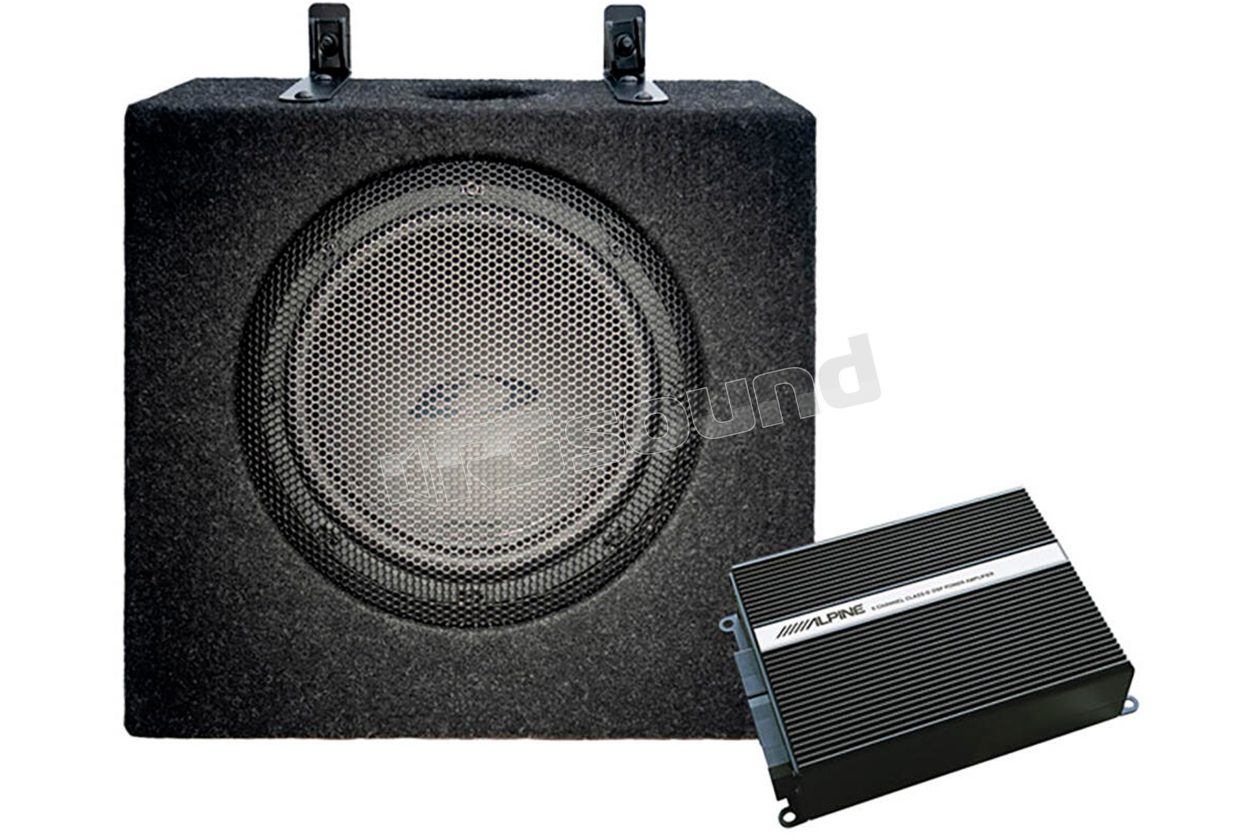

SPC-W84AT6-2 Subwoofer and 6-channel amplifier with DSP for Volkswagen T6.1 and T6

Alpine
Your price:
€ 899,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
200 mm
MAX Power
180 Watt
RMS Power
60 Watt
Frequency Response
10 - 22000 Hertz
Sensitivity
91 dB
Impedance
2 + 2 Ohm
Enclosure Size
355 x 330 x 170 mm
Enclosure Type
Sealed Enclosure

Alpine SPC-W84AT6-2 System composed of subwoofer and 6-channel amplifier with DSP for Volkswagen T6.1 / T6

Upgrade your Alpine Adventure Audio speaker system for Volkswagen T6.1 or T6 to the Concert Ensemble with the new 6-channel DSP amplifier SPC-W84AT6-2 PDA-S560 and subwoofer system. This sound upgrade will add plenty of power, dynamics and bass to your existing Alpine speaker system to achieve optimal listening experience in your vehicle.

The DSP amplifier is pre-programmed to perfectly adapt to the sound characteristics of the Volkswagen T6.1 and T6, to ensure perfect sound quality, while the included wiring for original Volkswagen radios or for aftermarket radios equipped with RCA preamplified outputs allows for quick plug-and-play installation in the vehicle. The included 180 Watt subwoofer, with wooden enclosure to be installed under the passenger seat, adds powerful bass and is even compatible with the California camper bus rotating seat. Enjoy the second generation of Alpine Status audio systems with an even more powerful amplifier.

NOTE: Compatible with rotating seats and front bench for 2 people. Wiring designed for connection to original VW radio systems (high-level input) or to aftermarket radios equipped with RCA preamplified outputs.

Alpine SPC-W84AT6-2 Technical specifications

DSP Amplifier

  • 6-channel Class D DSP amplifier
  • RMS Power CH 1-4 at 4 Ω: 80 W RMS x 4 (14.4 V at 1% THD+N)
  • RMS Power CH 5-6 at 2 Ω: 120 W RMS x 2 (14.4 V at 1% THD+N)
  • Amplification circuits in Class AB (channel 1-4) and Class D (channel 5+6)
  • 4 high-level inputs
  • Power requirements: 12 V
  • Dimensions: 142 x 40 x 122 mm (176 mm with connectors inserted)
  • Pre-programmed audio settings for VW T6.1 / T6 with EQ and digital time correction
  • Settings for LHD or RHD vehicles
  • Designed to work with retrofit radios (RCA)
  • Designed to work with original Volkswagen T6.1 / T6 radios (high-level)

Subwoofer

  • 20 cm (8") dual voice coil subwoofer (2 Ω + 2 Ω)
  • 180 Watt peak power handling / 60 Watt RMS power handling
  • Frequency response: 10 Hz - 22 000 Hz
  • Includes mounting brackets for installation under the VW T6.1 / T6 seat
  • Dimensions: 355 x 330 x 170 mm
  • Sensitivity: 91 dB 1 W / W
  • Subwoofer grille included

Compatible vehicles

Volkswagen

  • T6 California 07/2015 - 10/2019
  • T6.1 California 2019 →
  • T6 Multivan 07/2015 - 10/2019
  • T6.1 Multivan 2019 →
  • T6 Transporter 07/2015 - 10/2019
  • T6.1 Transporter 2019 →
  • T6 Caravelle 07/2015 - 10/2019
  • T6.1 Caravelle 2019 →
