SMC-280N 1" compression driver, 8 ohm, 105 dB, 50 W, ferrite

Beyma
Your price:
€ 82,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

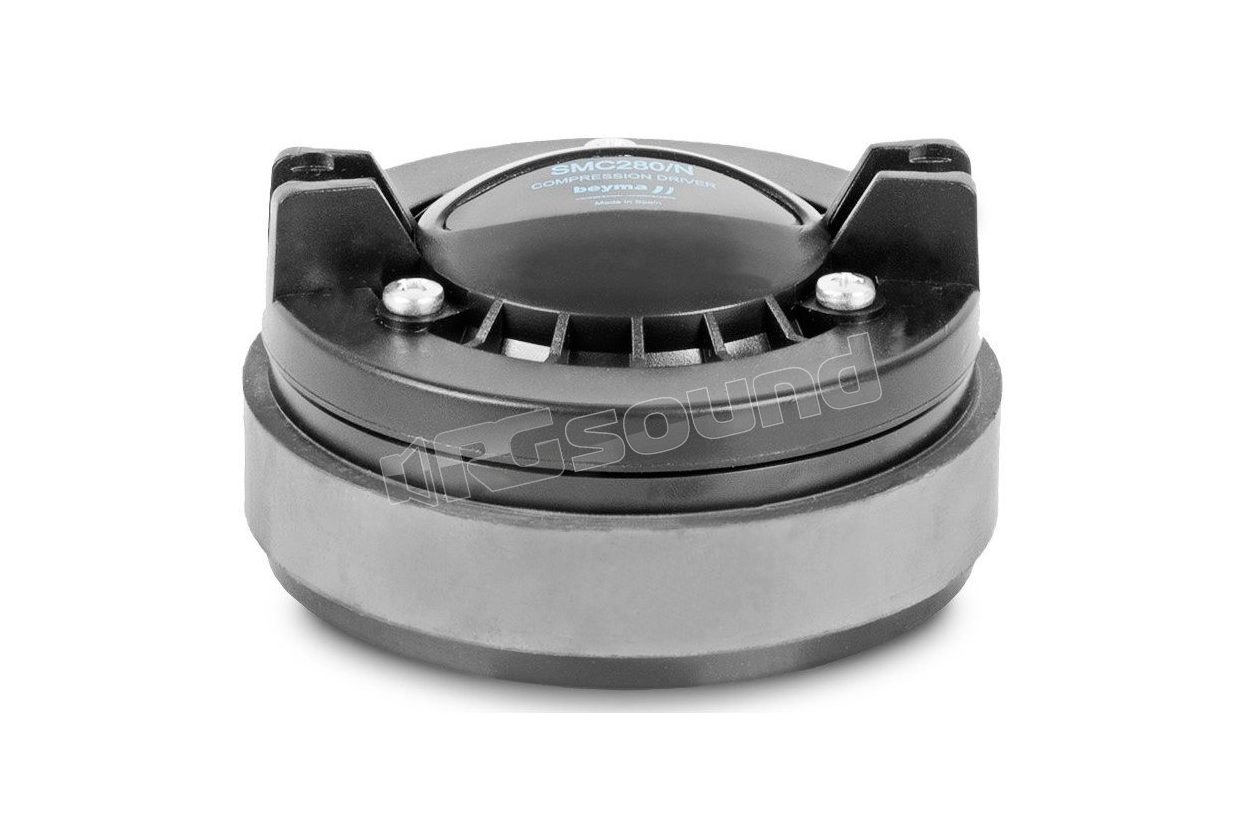

Beyma SMC-280N 1" Compression Driver, 8 ohm, 105 dB, 50 W, ferrite

25 mm compression driver

SMC-280N Features

  • Rated power: 50 WAES above 1.5 kHz
  • High sensitivity: 105 dB (1 W / 1 m)
  • Extended frequency range: 0.8 - 18 kHz
  • Low harmonic distortion
  • Aluminum voice coil wound on 1.75" edge
  • Light polyester diaphragm
  • Ferrite magnet

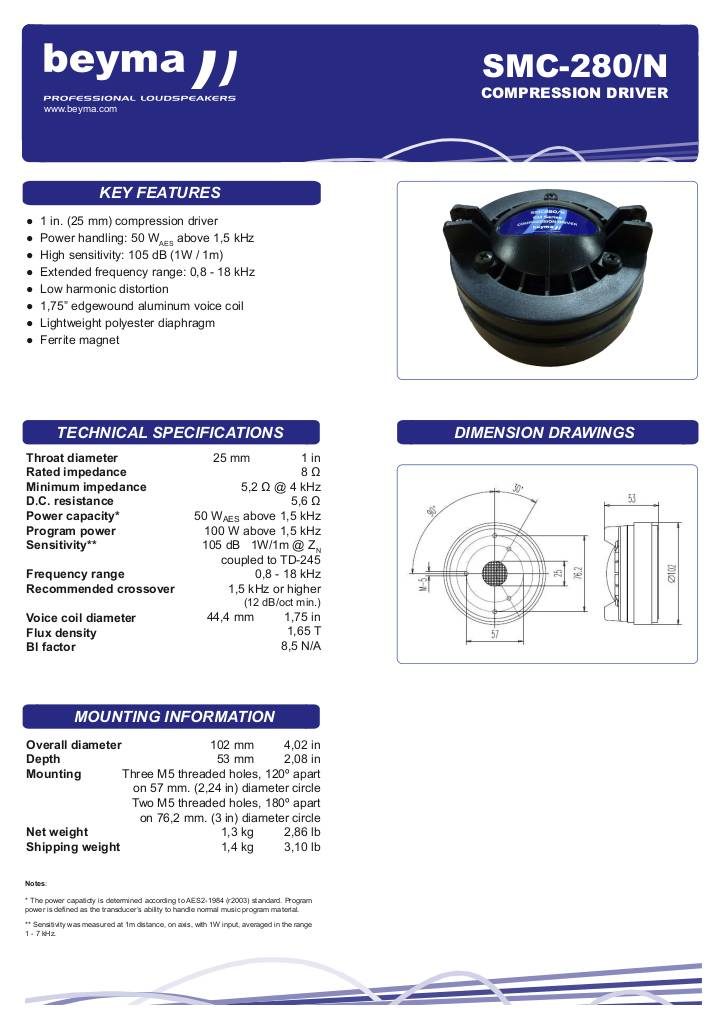

Scheda tecnica

n-20260623093826-smc280n.pdf

Beyma SMC-280N Technical Specifications

  • Throat diameter 25 mm
  • Nominal impedance 8 Ω
  • Minimum impedance 5.2 Ω at 4 kHz
  • DC resistance 5.6 Ω
  • Rated power* 50 WAES above 1.5 kHz
  • Program power 100 W above 1.5 kHz
  • Sensitivity** 105 dB 1 W/1 m @ ZN coupled to TD-245
  • Frequency range 0.8 - 18 kHz
  • Recommended crossover 1.5 kHz or higher (min. 12 dB/oct.)
  • Voice coil diameter 44.4 mm 1.75 in
  • Flux density 1.65 T
  • Bl factor 8.5 N/A
