SL-C6.3 16.5cm three-way kit Sound line

Rainbow

Discontinued

Your price:
€ 299,00
Price per single item (VAT included)
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
80 millimetri
Tweeter Size
25 millimetri
MAX Power
150 Watt
RMS Power
100 Watt
Frequency Response
50 -30.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Cestello in acciaio

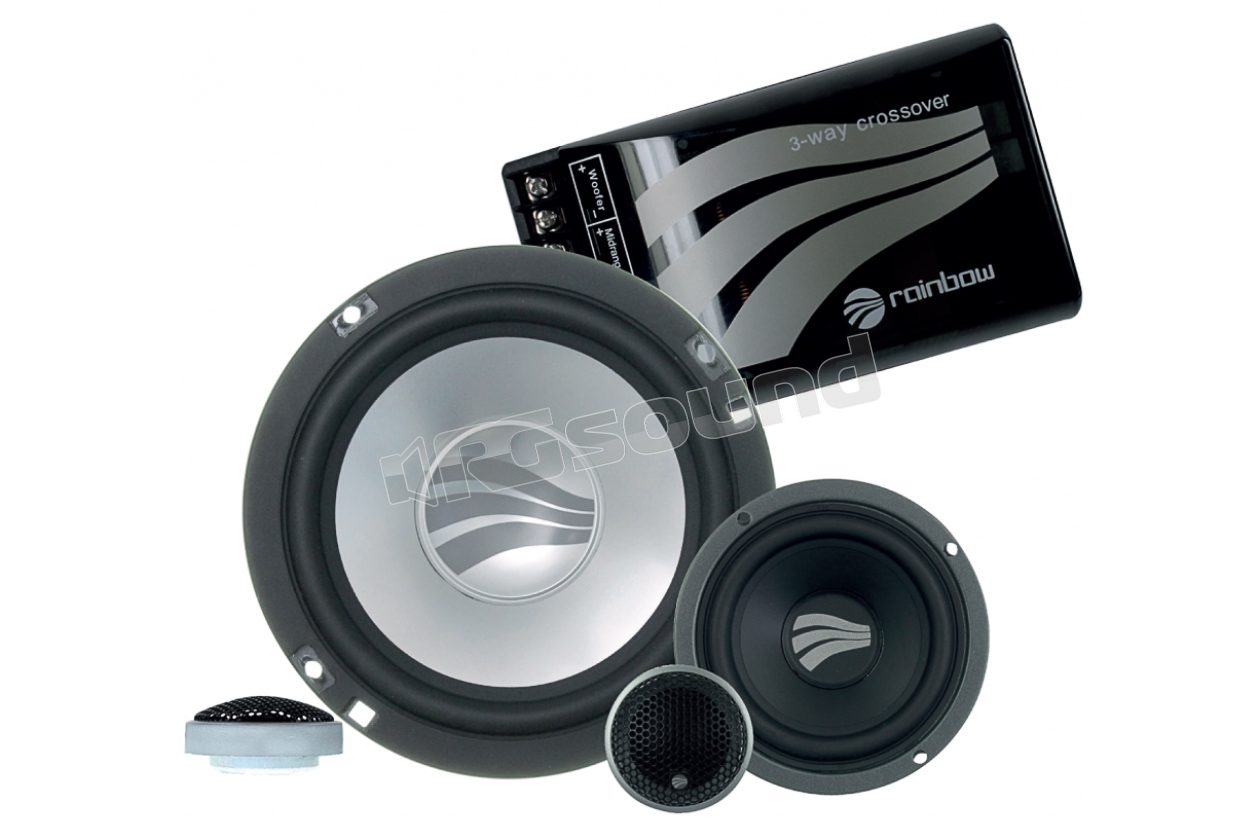

Rainbow SL-C6.3 three-way Sound series kit composed of a pair of 165mm woofers SL-W6, a pair of 80mm midrange drivers SL-M3, a pair of 25mm tweeters SL-T25 and dedicated crossovers.

The Sound series combines technical features and new materials to improve sound, with new installation and configuration options.

The SL-W6 woofer features a high-strength steel basket, with the surround specially designed for optimal air flow. Butyl rubber edge for controlled cone movement made of aluminum. Powerful, vented magnet in ferrite-ceramic for best magnet motor cooling.

The SL-M3 midrange boasts an 80mm cellulose fiber cone, steel basket to eliminate resonances, 20mm Kapton voice coil.

The 25 mm SL-T25 tweeters feature a silk dome and a powerful neodymium magnet.

SL-C6.3 Features

Maximum power 150 Watt

Nominal power 100 Watt

Minimum amplifier power 50 Watt

Sensitivity 90 dB 1W/1m

Frequency response 50 - 30,000 Hz

Impedance 4 Ohm

Slope 3 x 12 dB/Oct.

Crossover frequency 350 / 3,600 Hz

Tweeter attenuation 3x

Midrange attenuation 1x

Component features:

Woofer SL-W6

Maximum power 150 Watt

RMS power 100 Watt

Minimum amplifier power 50 Watt

Sensitivity 90 dB 1W/1m

Frequency response 50 - 60,000 Hz

Impedance 4 Ohm

Diameter Ø 166 mm

External diameter Ø 180 mm

Mounting hole Ø 143 mm

Mounting depth 65 mm

Midrange SL-M3

Maximum power 80 Watt

Nominal power 60 Watt

Minimum amplifier power 30 Watt

Sensitivity 90 dB 1W/1m

Frequency response 100 - 10,000 Hz

Impedance 4 Ohm

Diameter Ø 90 mm

External diameter Ø 90 mm

Mounting hole Ø 70 mm

Mounting depth 40 mm

Tweeter SL-T25

Maximum power 150 Watt

Nominal power 100 Watt

Sensitivity 90 dB 1W/1m

Frequency response 1,600 - 30,000 Hz

Impedance 4 Ohm

Slope 12 dB/Oct. / 24 dB/Oct.

Crossover frequency 3,400 Hz

Tweeter attenuation (4x)

Diameter Ø 46 mm

External diameter Ø 57 mm

Mounting hole Ø 32 / 49² mm

Mounting depth 5/15 mm
