SG8 1.4" 13dB waveguide

Beyma
Your price:
€ 82,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

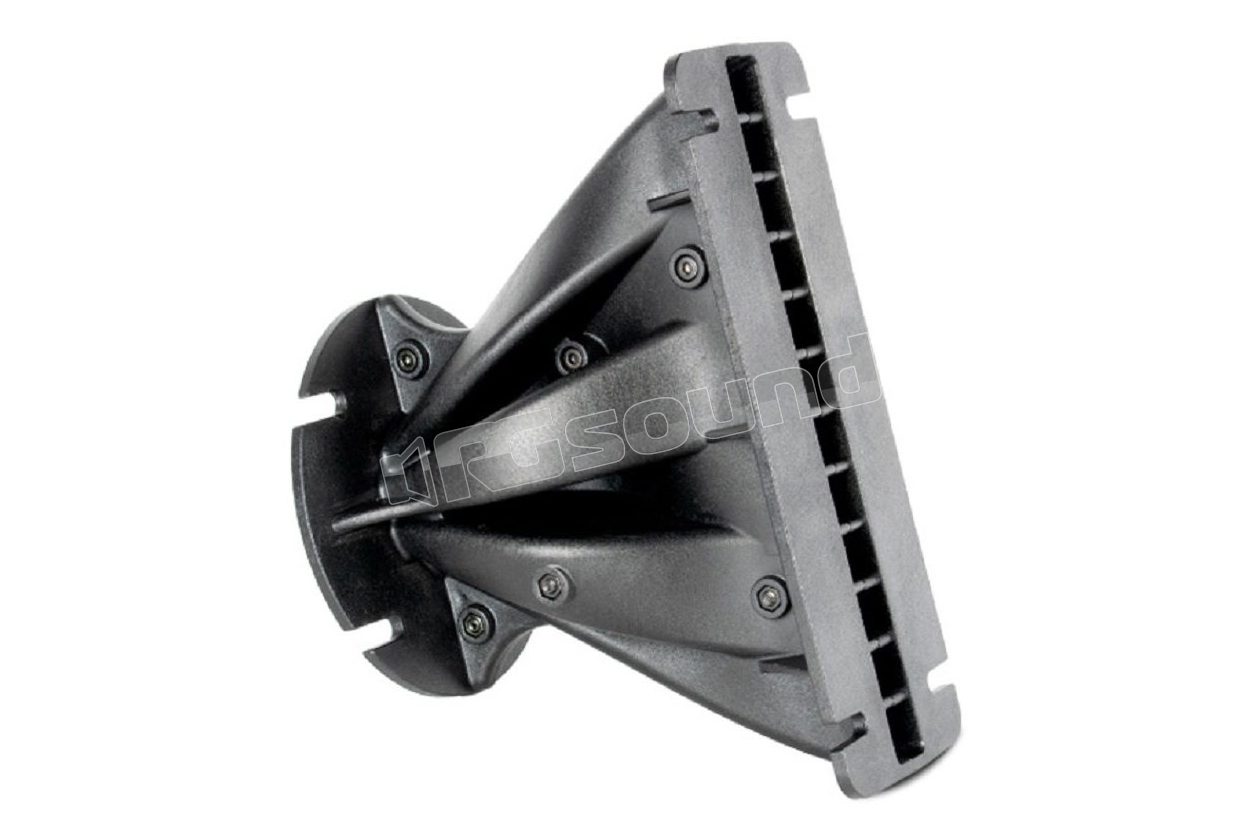

Beyma SG8 Waveguide 1.4" 13dB

Designed for compression drivers with 1.4" (36 mm) throat diameter

SG8 Features

  • Maximum coverage angles of 120° on the horizontal plane and 10° on the vertical plane
  • Precise directivity control in the passband
  • Reinforced polycarbonate structure for heavy-duty applications
  • Optimized with F.E.M. method for in-phase output and
  • Homogeneous SPL along the entire length of the rectangular mouth

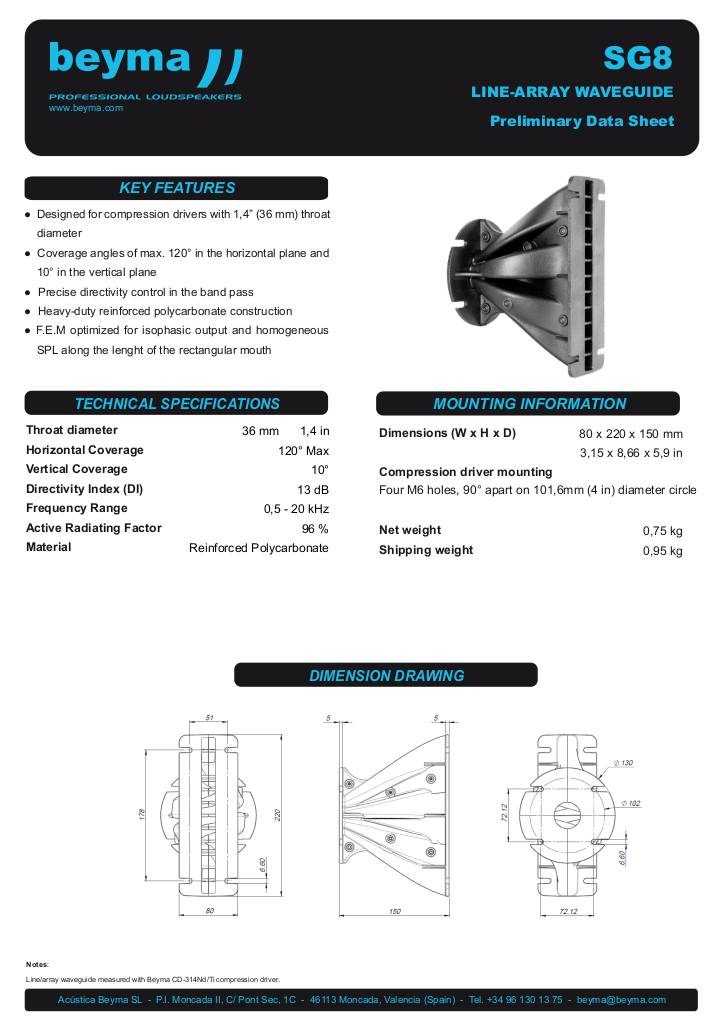

Scheda tecnica

n-20260623094147-sg8.pdf

Beyma SG8 Technical Specifications

  • Throat diameter 36 mm 1.4 inches
  • Horizontal beam width 120º
  • Vertical beam width 10º
  • Directivity index (DI) 13 dB
  • Crossover frequency 500-20000 Hz
  • Construction details
  • Dimensions (L×W×D) 80×220×150 mm
  • Net weight 0.75 kg
  • Total weight 0.95 kg
  • Material: reinforced polycarbonate
  • Structure: four M6 holes, spaced 90° on a 101.6 mm (4 inches) diameter circle.
€ 82,00 Price incl. VAT
