SG6 1.4" waveguide

Beyma
Your price:
€ 68,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

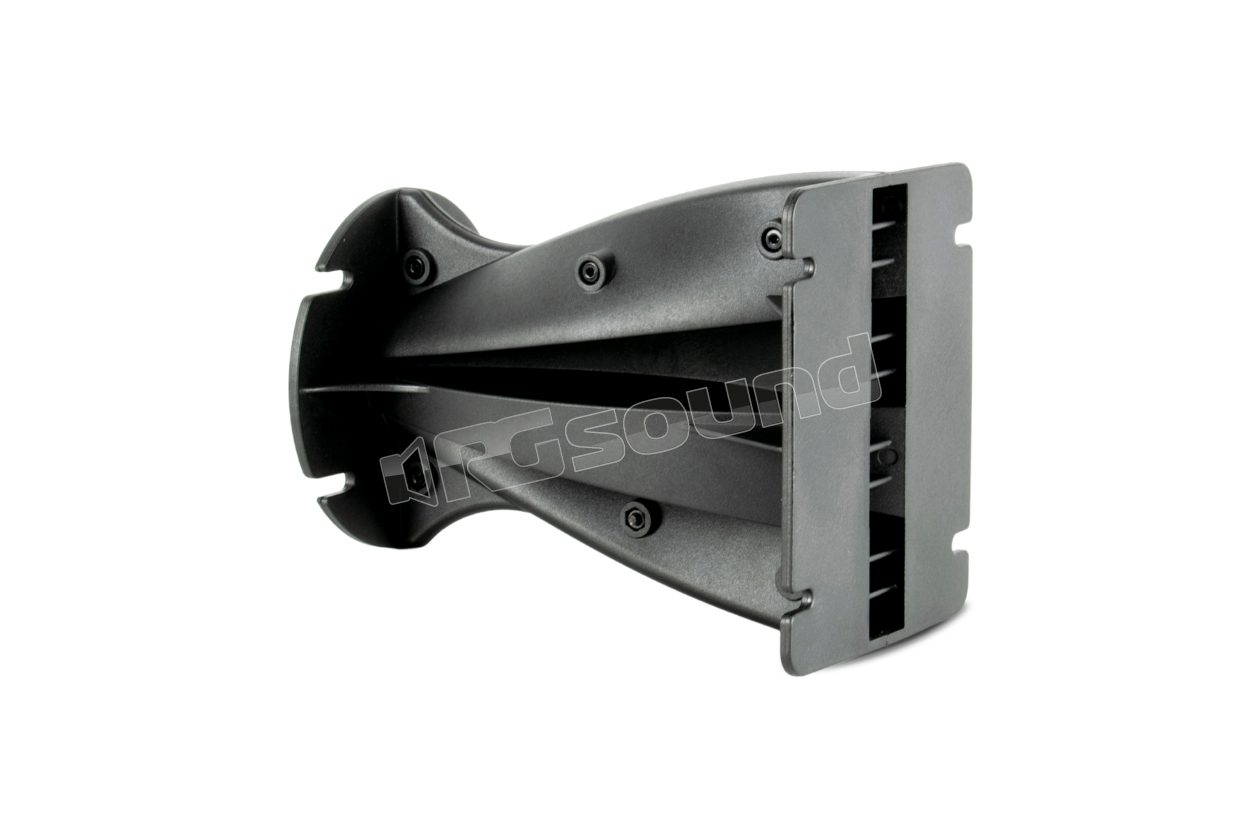

Beyma SG6 1.4" Wave guide

Designed for compression drivers with 1.4" (36 mm) throat diameter

SG6 Features

  • Maximum coverage angles of 120° on the horizontal plane and 10° on the vertical plane
  • Precise directivity control in the passband
  • Reinforced polycarbonate structure for heavy-duty applications
  • Optimized with F.E.M. method for isophase output and
  • homogeneous SPL along the entire length of the rectangular mouth

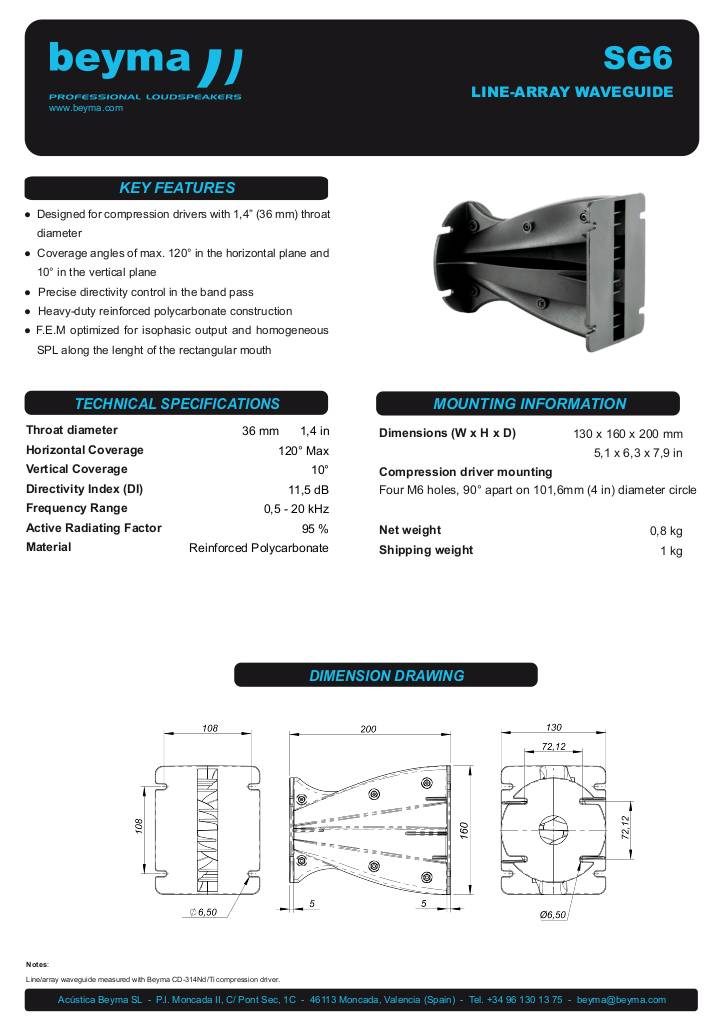

Scheda tecnica

n-20260623095259-sg6.pdf

Beyma SG6 Technical specifications

  • Throat diameter 36 mm
  • Horizontal beam width 120º
  • Vertical beam width 10º
  • Directivity index (DI) 11.5 dB
  • Crossover frequency 500-20000 Hz
  • Dimensions (WxHxD) 130x160x200 mm
  • Net weight 0.8 kg
  • Total weight 1 kg
  • Material: reinforced polycarbonate
  • Structure Four M6 holes, spaced 90° apart on a circle of 101.6 mm (4 inches) diameter.
€ 68,00 Price incl. VAT
