SE650C 165 mm 2-way speaker kit 120W

Steg

Discontinued

Your price:
€ 284,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
48-60000 Hertz
Woofer Size
165 mm
Tweeter Size
55 millimetri
MAX Power
50 Watt
Sensitivity
89 dB
Impedance
2 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Neodimio

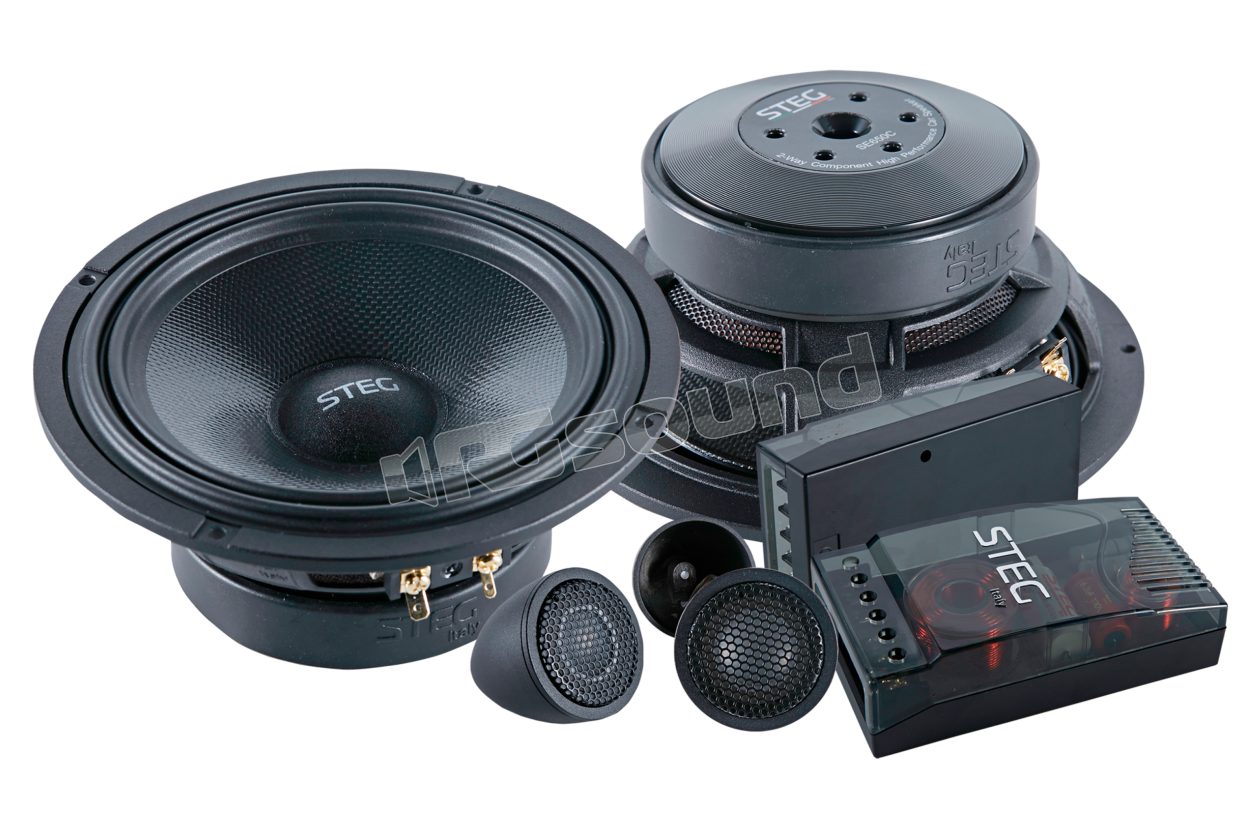

SE 650 C2-way kit composed of a pair of 165mm woofers + pair of 60mm tweeters with bracket + crossover

Woofer with rubber suspension and cone in cotton and fiberglass. The tweeter features a very light composite metal diaphragm, the voice coil wound on a double layer and the high density neodymium magnet.

The delicate and precious appearance reveals a series of intelligent details such as the new hemispherical-shaped dustcap for optimized frequency response in the mid-high area, the perfectly linear magnet structure for minimum possible distortion, the multiple ventilated moving coil for high power handling as well as the rigid die-cast basket and aerodynamically efficient.

Caratteristiche prodotto

n-20181214102819-1e7b8f-96ab6f0c91f94d0eb563b628c00e10f7.pdf

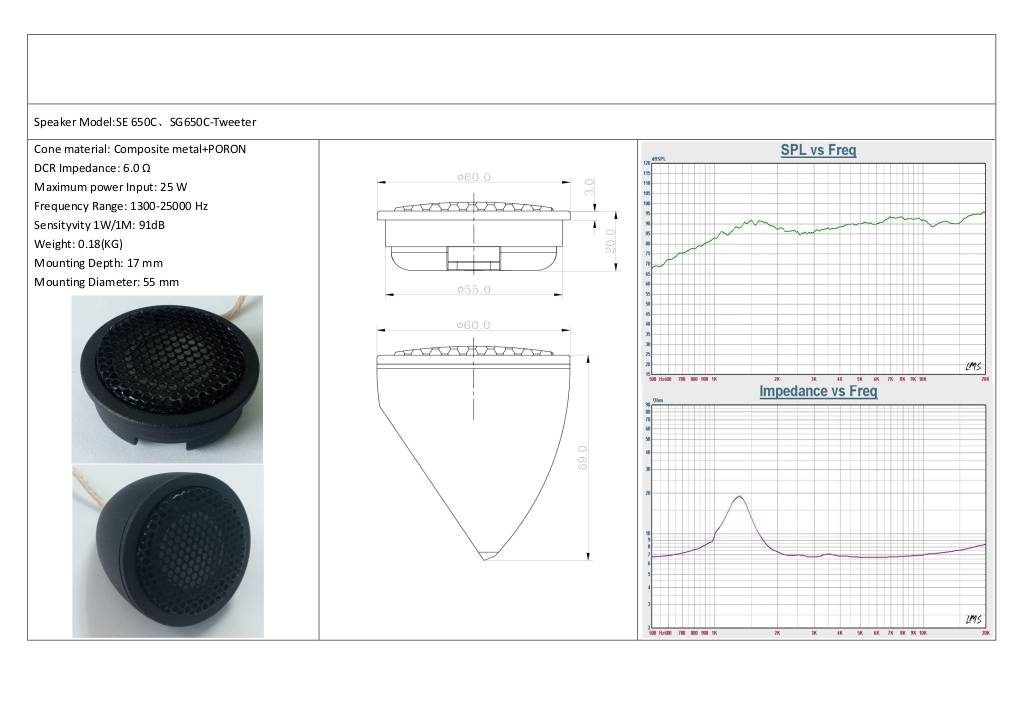

Steg SE650C technical specifications

Tweeter features
Cone material: composite metal + PORON
DCR impedance: 6.0Ω
Maximum power input: 25W
Frequency range: 1300-25000Hz
Sensitivity 1W/1M: 91dB
Weight: 0.18 (KG)
Mounting depth: 17 mm
Mounting diameter: 55 mm

Woofer features
Cone material: special bulletproof fabric + rubber side
DCR impedance: 2.0Ω
Maximum power: 50W
Frequency range: 48-6000Hz
Sensitivity 1W/1M: 89dB
Qms:2.39
Qes:0.39
Qts:0.34
Weight: 1.48 (KG)
Mounting depth: 69 mm
Mounting diameter: 147 mm

Discontinued
