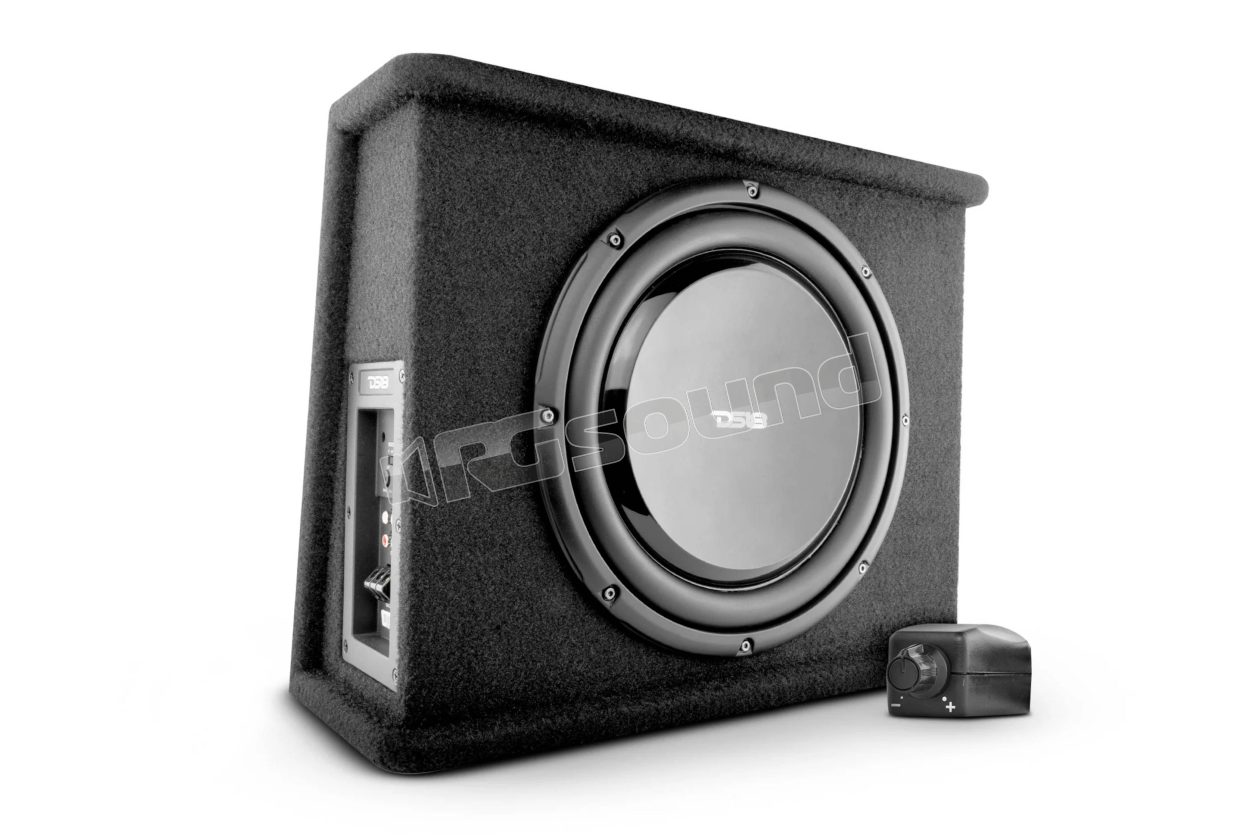

SB12A 12” shallow-mount powered subwoofer

DS18
Your price:
€ 303,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
Other sizes
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
30 - 250 Hertz
Sensitivity
87 dB
Impedance
2 Ohm
Enclosure Type
Sealed Enclosure

DS18 SB12A 12" Powered Shallow Subwoofer

For all audio enthusiasts who demand exceptional sound but have limited space, DS18 offers the perfect solution. Introducing the DS18 SB12A, a slim 12 inch subwoofer housed in a compact and sealed enclosure, designed to deliver the most powerful bass even in the tightest spaces. With the SB12A, DS18 has engineered a subwoofer that defies every expectation, delivering powerful and thunderous bass in a compact container that fits perfectly into any vehicle.Housed in a sturdy 0.6 inch MDF sealed enclosure, the SB12A is built to withstand the rigors of daily use while maintaining optimal sound quality. The included high-power amplifier, boasting 350 W RMS and an impressive 700 W MAX, ensures that every beat is precise and intense.The enclosure housing the SB12A has an internal volume of 16 liters (0.56 ft3), allowing this subwoofer to achieve the perfect balance between compactness and performance. The SB12A offers an impressive frequency response from 30Hz to 250Hz, delivering rich and deep bass that resonates throughout the vehicle.

Safety and protection features are at the heart of the SB12A design.Thermal protection protects against overheating, while overload, DC output and short circuit protections ensure complete peace of mind during high-performance audio sessions.Level control remote, selectable crossover and bass boost range from 0 to 6 dB at 50 Hz allow you to fine-tune the bass to your preferences, effortlessly transforming your driving experience into a concert on wheels.The SB12A offers versatile connectivity options, providing high-level inputs or RCA jacks to seamlessly integrate with any existing audio system.Simply connect it, sit back and let the bass take control.

SB12A Features

  • 1 X 12" surface mount
  • Amplified with subwoofer control knob
  • RMS Power: 350 Watt (700 Watt peak)
  • Impedance: 2 Ohm - 87dB
  • 1/2" MDF with black carpet

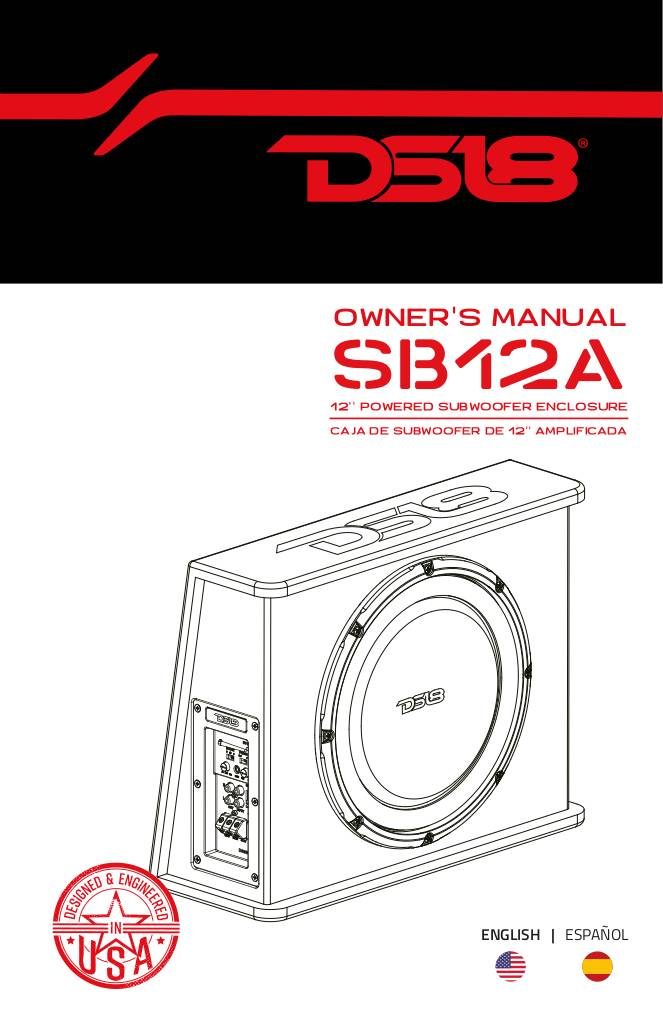

Scheda tecnica

n-20250303123915-sb12a-scheda-tecnica.pdf

DS18 SB12A Technical Specifications

  • Speaker Type / Size 12" / 312 mm
  • Total Impedance 2 Ohm
  • Total RMS Power 350W
  • Total MAX Power 700W
  • Sensitivity (1w/1m) 87dB
  • Frequency Response 30-250Hz

Speaker

  • Voice Coil Diameter 1.75" / 44.43 mm
  • Voice Coil Material: aluminum
  • Winding Material EISV
  • Cone Material IPP
  • Dust Cap Material N/A
  • Rubber Surround Material
  • Basket Material SPCC
  • Magnet Material Ferrite
  • Magnet Weight 50 oz

Amplifier

  • Amplifier Class Digital
  • Amplifier Type Subwoofer monoblock
  • Number of Channels 1CH
  • Minimum Impedance 2 Ohm
  • Signal to Noise Ratio 75 dB
  • Efficiency at 4ohm 75%
  • Total Harmonic Distortion (THD) 0.30%
  • Low Level Input Range 0.1-0.6 V
  • High Level Input
  • X-Over Fixed Selectable LPF
  • X-Over Filter Range 51 - 200 Hz
  • Bass Boost Range 0-6 dB
  • Bass Boost Frequency 50 Hz
  • Phase Selector 0-180
  • LED Indicator Power/Protection
  • Power Input Terminal 8 Ga
  • Fuse 30 A
  • Remote Level Control
  • Thermal Protection
  • Overload Protection
  • DC Output Protection
  • Output Short Circuit Protection
  • Voltage Input Protection Yes (<8v, >16v)

Box

  • Internal Volume 16L / 0.56ft3
  • Port Tuning Fb N/A
  • Parallel Load Configuration
  • Box Type sealed
  • Box Material 0.59" MDF
  • Finish Material Non-woven fabric
  • -3Db Drop Point F3 45Hz

Measurements

  • Height 14.96" / 380 mm
  • Width 19.3" / 490 mm
  • Depth 1 4.92" / 125 mm
  • Depth 2 7.4" / 188 mm
  • Gross Weight Single Unit 18.7Lb / 8.5KG
