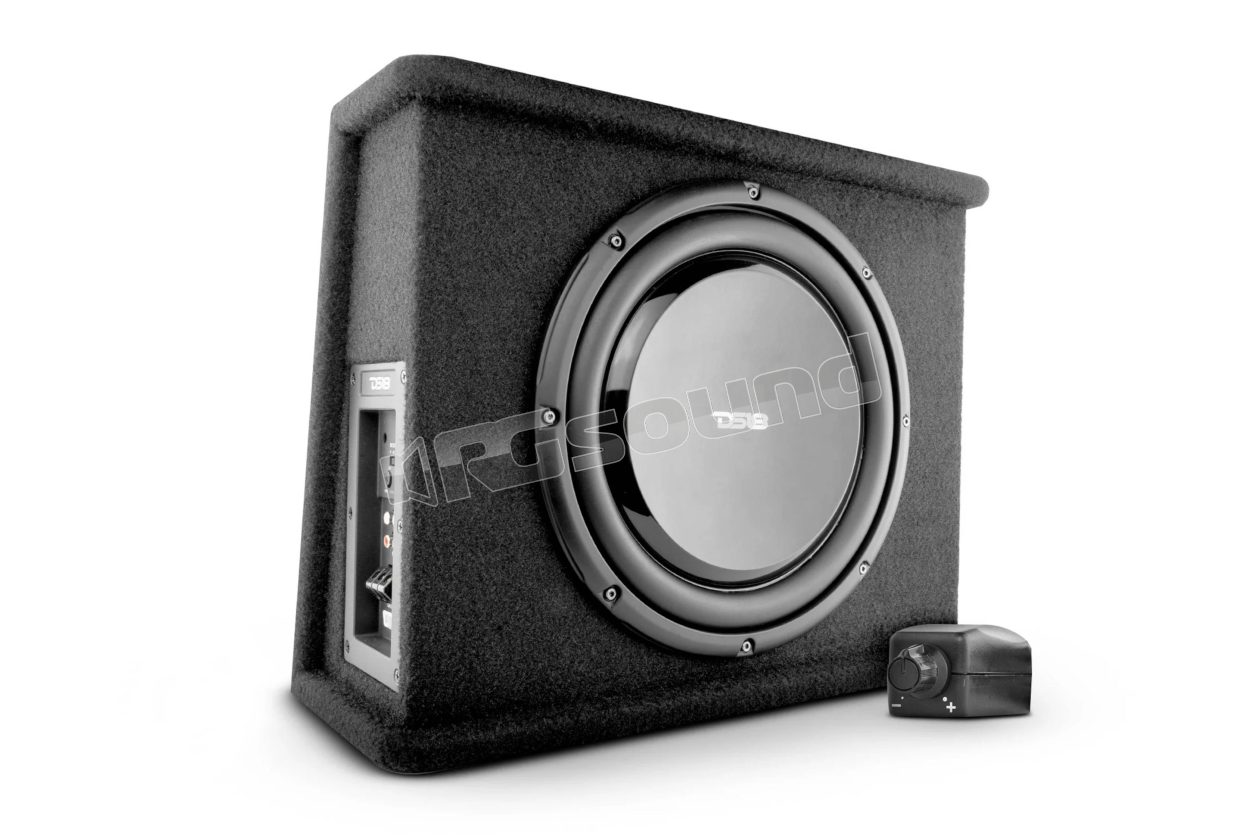

SB10A 10” shallow-mount powered subwoofer

DS18
Your price:
€ 284,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
100 mm
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
38 - 250 Hertz
Sensitivity
87 dB
Impedance
2 Ohm
Enclosure Type
Sealed Enclosure

DS18 SB10A 10" Powered Shallow Mount Subwoofer

For all audio enthusiasts who demand exceptional sound but have limited space, DS18 offers the perfect solution. The DS18 SB10A, a slim 10 inch subwoofer enclosed in a compact and sealed box, designed to deliver earth-shaking bass even in the tightest spaces. Housed in a sturdy 0.6 inch MDF sealed enclosure, the SB10A is built to withstand daily use while maintaining optimal sound quality. The included high-power amplifier, boasting 350W RMS and 700W MAX, ensures that every beat is precise and intense.


The enclosure housing the SB10A has an internal volume of 12 liters (0.42 ft3), allowing this subwoofer to achieve the perfect balance between compactness and performance. The SB10A offers an impressive frequency response ranging from 38Hz to 250Hz, guaranteeing rich and deep bass notes that resonate in the vehicle. Safety and protection features are at the heart of the SB10A design. Thermal protection protects against overheating, while overload, DC output and short circuit protections ensure maximum peace of mind during high-performance audio sessions. Remote level control, selectable crossover and bass boost range from 0 to 6 dB at 50 Hz allow you to precisely adjust the bass according to your preferences, effortlessly transforming your driving experience into a concert on wheels. The SB10A offers versatile connectivity options, providing high-level inputs or RCA jacks to integrate perfectly with any existing audio system. Just plug it in, sit back and let the bass take control.

SB10A Features

  • Subwoofer enclosure
  • 1 X 10" Shallow mount
  • Powered with subwoofer control knob
  • RMS Power: 350 Watt (700 Watt peak)
  • Impedance: 2 Ohm - 83dB
  • 1/2" MDF with black carpet

Scheda tecnica

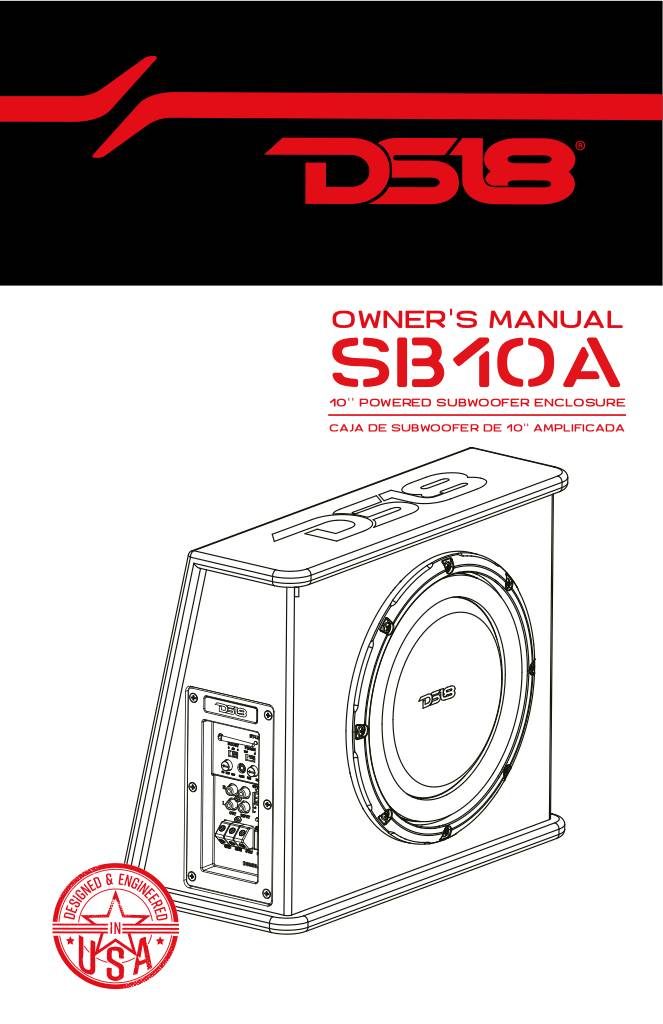

n-20250303122815-sb10a-scheda-tecnica.pdf

DS18 SB10A Technical Specifications

  • Speaker Type / Size 10" / 261 mm
  • Total Impedance 2 Ohm
  • Total RMS Power 350W
  • Total MAX Power 700W
  • Sensitivity (1w/1m) 83dB
  • Frequency Response 38-250Hz

Speaker

  • Voice Coil Diameter 1.5" / 38.6 mm
  • Voice Coil Material: aluminum
  • Winding Material EISV
  • Cone Material IPP
  • Dustcap Material N/A
  • Surround Material rubber
  • Basket Material SPCC
  • Magnet Material Ferrite
  • Magnet Weight 40 Oz

Amplifier

  • Amplifier Class Digital
  • Amplifier Type Subwoofer monoblock
  • Number of Channels 1CH
  • Minimum Impedance 2 Ohm
  • Signal to Noise Ratio 75 dB
  • Efficiency at 4ohm 75%
  • Total Harmonic Distortion (THD) 0.30%
  • Low Level Input Range 0.1-0.6 V
  • High Level Input
  • X-Over Fixed Selectable LPF
  • X-Over Filter Range 50 - 200 Hz
  • Bass Boost Range 0-6 dB
  • Bass Boost Frequency 50 Hz
  • Phase Selector 0-180
  • Led Indicator Power/Protection
  • Power Input Terminal 8 Ga
  • Fuse 30 A
  • Remote Level Control
  • Thermal Protection
  • Overload Protection
  • DC Output Protection
  • Output Short Circuit Protection
  • Input Voltage Protection Yes (<8v, >16v)

Box

  • Internal Volume 12L / 0.42ft3
  • Port Tuning Fb N/A
  • Parallel Load Configuration
  • Box Type sealed
  • Box Material 0.59" MDF
  • Finish Material non-woven fabric
  • -3Db Drop Point F3 48Hz

Dimensions

  • Height 13.6" / 345.4 mm
  • Width 16.7" / 424 mm
  • Depth 1 4.82" / 122.6 mm
  • Depth 2 7.9" / 201 mm
  • Single Unit Gross Weight 15.4 Lb / 7 KG
  • Single Unit Box Dimensions L x W x H 480 mm x 260 mm x 405 mm
  • Quantity of Units in Master Carton 1 Pz
  • Master Carton Gross Weight 8.5 KG
  • Master Carton Dimensions L x W x H 500 mm x 280 mm x 425 mm
