SAN184.51 45 cm subwoofer, 3,400 W power at 2 Ohm

LaVoce
Your price:
€ 897,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
3400 Watt
RMS Power
1700 Watt
Frequency Response
30 - 1000 Hertz
Sensitivity
97,6 dB
Impedance
2 Ohm
Weight
14 Kg
Installation Depth
224 mm
Woofer Material
Cellulosa trattata

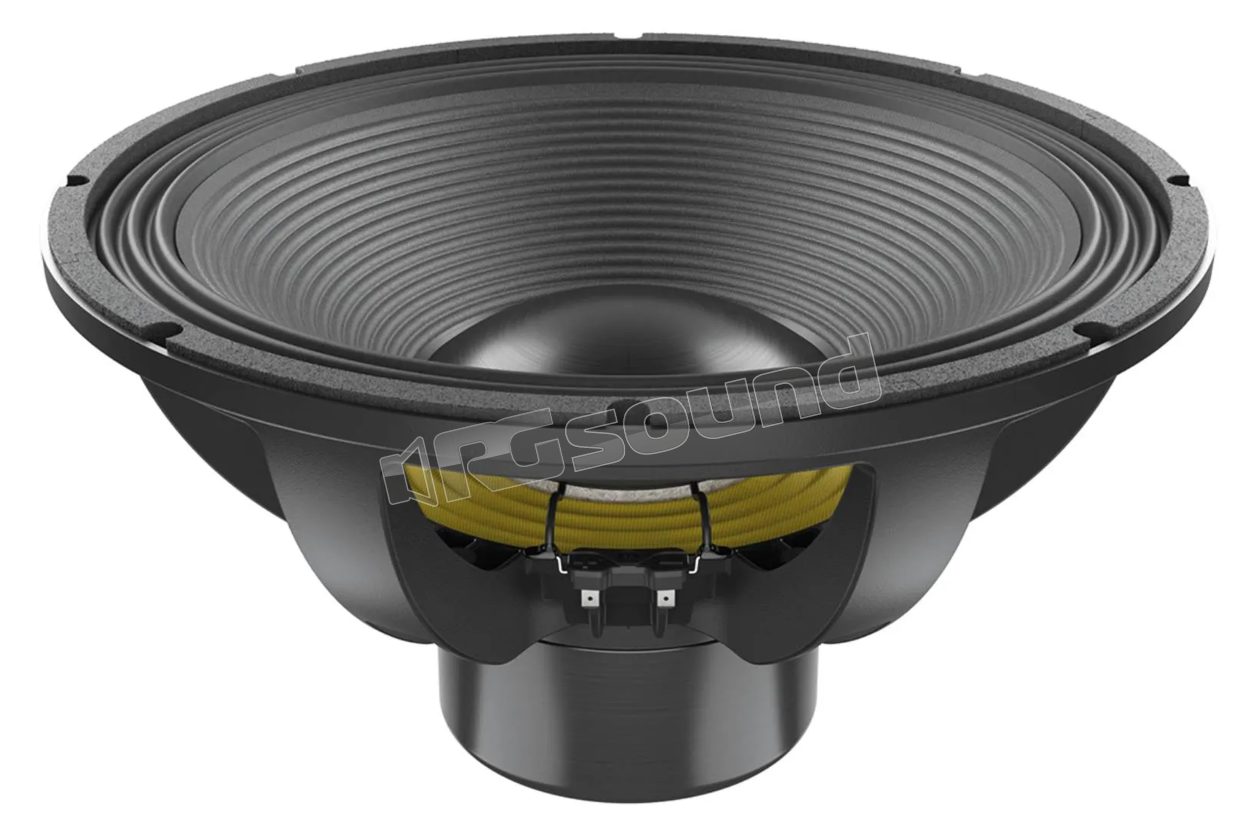

LaVoce SAN184.51 18" subwoofer with neodymium magnet and aluminum basket

Main features

  • 4.5 inch CCAW voice coil
  • 97.6 dB/SPL sensitivity
  • 3400 watts program power handling
  • ultra-low distortion design
  • reduced power compression thermal design
  • motor and suspensions optimized with FEM
  • 53 mm (2.1 inch) maximum peak-to-peak excursion
  • optimized cooling system
  • aluminum demodulation ring and dual silicon spider
  • triple surround

Scheda tecnica

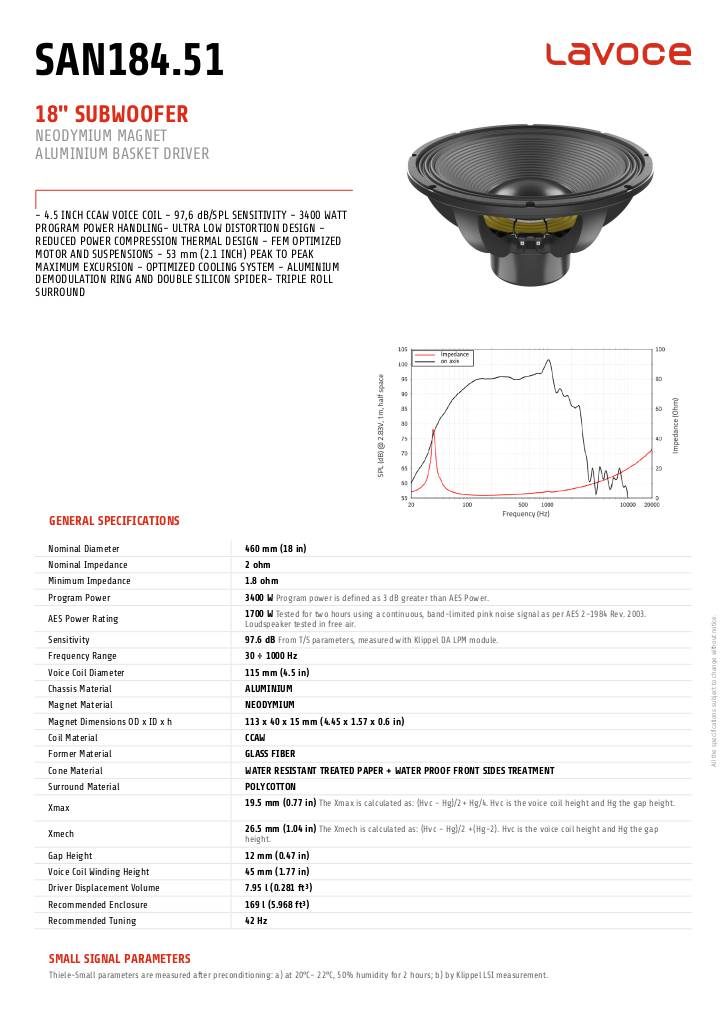

n-20260904112614-lavoce-san184-51.pdf

LaVoce SAN184.51 technical specifications

  • Nominal diameter 460 mm (18 in)
  • Nominal impedance 2 ohm
  • Minimum impedance 1.8 ohm
  • Musical power (program) 3400 W
  • AES nominal power 1700 W
  • Sensitivity 97.6 dB
  • Frequency range 30 ÷ 1000 Hz
  • Voice coil diameter 115 mm (4.5 in)
  • Basket material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 113 x 40 x 15 mm (4.45 x 1.57 x 0.6 in)
  • Voice coil wire material CCAW
  • Voice coil former material FIBERGLASS
  • Cone material WATER RESISTANT TREATED PAPER + WATERPROOF TREATMENT OF FRONT SIDES
  • Suspension material POLYCOTTON
  • Xmax 19.5 mm (0.77 in)
  • Xmech 26.5 mm (1.04 in)
  • Air gap height 12 mm (0.47 in)
  • Voice coil winding height 45 mm (1.77 in)
  • Speaker occupied volume 7.95 l (0.281 ft³)
  • Recommended loading volume 169 l (5.968 ft³)
  • Recommended tuning frequency 42 Hz
  • DC resistance (Re) 1.2 ohm
  • Effective diaphragm area (Sd) 1220 cm² (189.1 in²)
  • Resonance frequency (Fs) 36 Hz
  • Moving mass (Mms) 306.6 g (10.815 oz)
  • Mechanical compliance (Cms) 0.063 mm/N
  • Force factor (BxL) 18.79 N/A
  • Mechanical merit factor (Qms) 5.04
  • Electrical merit factor (Qes) 0.24
  • Total merit factor (Qts) 0.23
  • Equivalent air volume (Vas) 132.7 l (4.686 ft³)
  • Voice coil inductance (Le) 0.38 mH
  • Reference efficiency (Eta 0) 2.56 %
  • EBP 150 Hz
€ 897,90 Price incl. VAT
