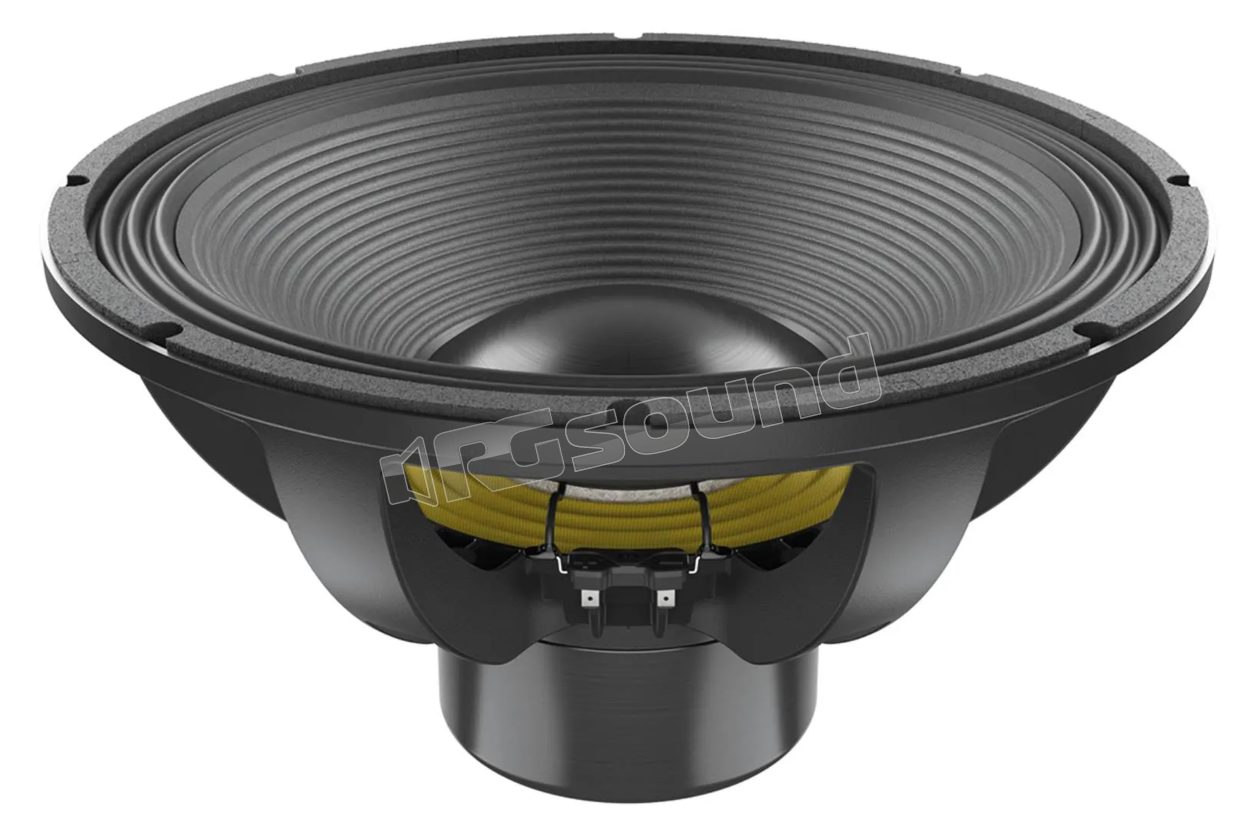

SAN184.50iP 46 cm subwoofer, 3,400 W power

LaVoce
Your price:
€ 1010,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
3400 Watt
RMS Power
1700 Watt
Frequency Response
30 - 1000 Hertz
Sensitivity
99 dB
Impedance
2 Ohm
Weight
15 Kg
Installation Depth
226 mm
Woofer Material
Cellulosa trattata

LaVoce SAN184.50iP 18" subwoofer, 2 Ohm impedance with neodymium magnet aluminum basket

Main features

  • 2 ohm impedance
  • 4.5 inch in-out CCAW voice coil
  • 99 db/spl sensitivity
  • 3400 watts program power handling
  • Powersoft compatible with ipalmod
  • ultra-low distortion design
  • reduced power compression thermal design
  • 54 mm (2.1 inch) maximum excursion peak to peak
  • dual silicon spider and triple roll surround
  • aluminum demodulation ring

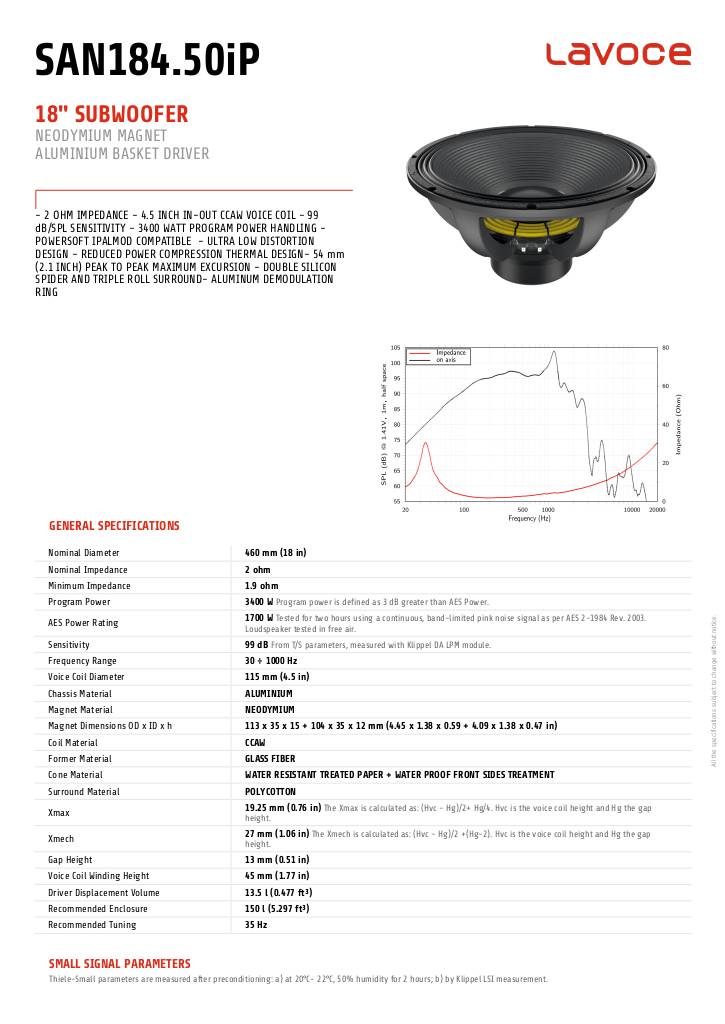

Scheda tecnica

n-20260904144849-lavoce-san184-50ip.pdf

LaVoce SAN184.50iP technical specifications

  • Nominal diameter 460 mm (18 in)
  • Nominal impedance 2 ohm
  • Minimum impedance 1.9 ohm
  • Musical power (program) 3400 W
  • Rated power AES 1700 W
  • Sensitivity 99 dB
  • Frequency range 30 ÷ 1000 Hz
  • Voice coil diameter 115 mm (4.5 in)
  • Basket material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 113 x 35 x 15 + 104 x 35 x 12 mm (4.45 x 1.38 x 0.59 + 4.09 x 1.38 x 0.47 in)
  • Voice coil wire material CCAW
  • Voice coil support material FIBERGLASS
  • Cone material WATER RESISTANT TREATED PAPER + WATERPROOF TREATMENT OF FRONT SIDES
  • Suspension material POLYCOTTON
  • Xmax 19.25 mm (0.76 in)
  • Xmech 27 mm (1.06 in)
  • Air gap height 13 mm (0.51 in)
  • Voice coil winding height 45 mm (1.77 in)
  • Volume occupied by speaker 13.5 l (0.477 ft³)
  • Recommended load volume 150 l (5.297 ft³)
  • Recommended tuning frequency 35 Hz
  • DC resistance (Re) 1.2 ohm
  • Effective diaphragm area (Sd) 1220 cm² (189.1 in²)
  • Resonance frequency (Fs) 34 Hz
  • Moving mass (Mms) 339.5 g (11.976 oz)
  • Compliance (Cms) 0.064 mm/N
  • Force factor (BxL) 25.2 N/A
  • Mechanical Q factor (Qms) 3.61
  • Electrical Q factor (Qes) 0.14
  • Total Q factor (Qts) 0.13
  • Equivalent air volume (Vas) 134.81 l (4.761 ft³)
  • Voice coil inductance (Le) 0.35 mH
  • Reference efficiency (Eta 0) 3.75 %
  • EBP 243 Hz
