SAN184.50iP-1 46 cm subwoofer, 3,400 W power at 1 Ohm

LaVoce
Your price:
€ 1010,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
3400 Watt
RMS Power
1700 Watt
Frequency Response
30 - 1000 Hertz
Sensitivity
98 dB
Impedance
1 Ohm
Weight
15 Kg
Installation Depth
225 mm
Woofer Material
Cellulosa trattata

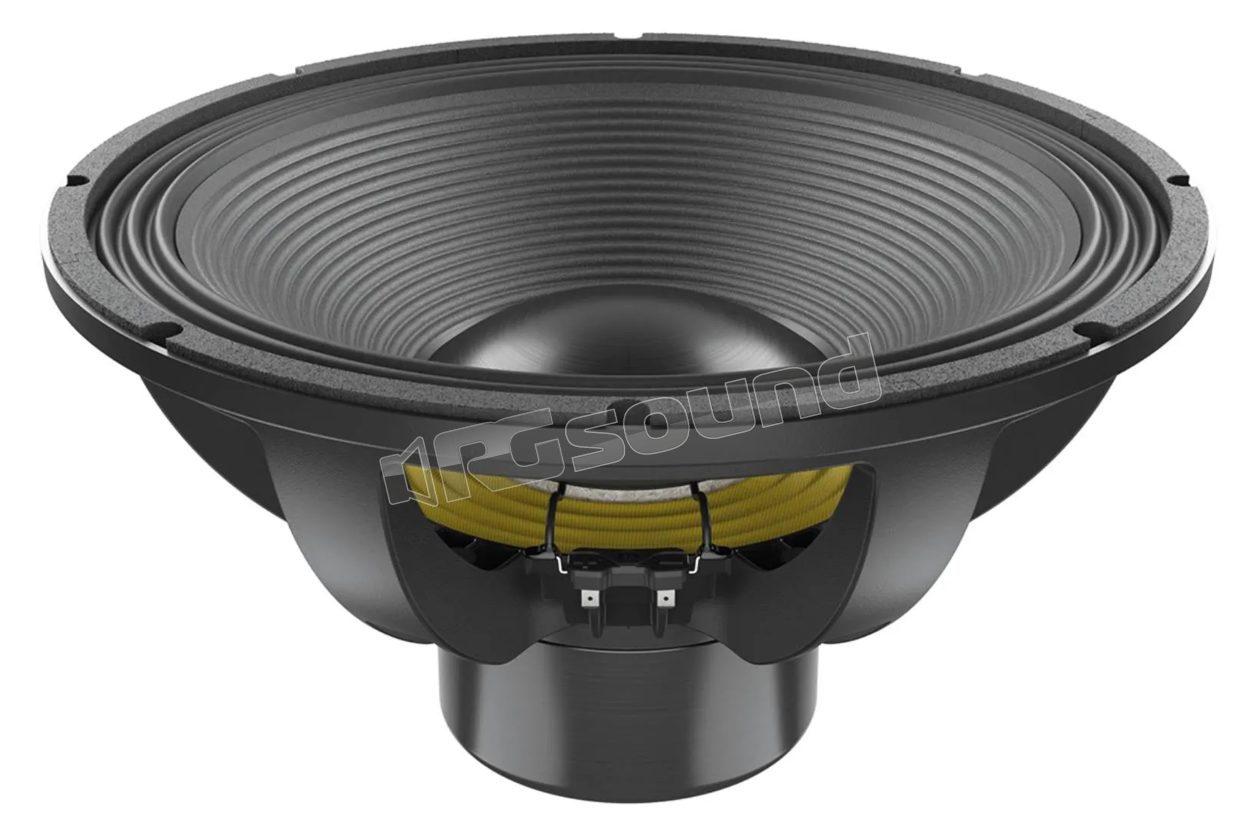

LaVoce SAN184.50iP-1 18" subwoofer, 1 ohm impedance with neodymium magnet aluminum basket

Main features

  • 1 ohm impedance
  • 4.5 inch voice coil in-out ccaw
  • 98 db/spl sensitivity
  • 3400 watt program power handling
  • powersoft compatible with ipalmod
  • very low distortion design
  • reduced power compression thermal design
  • 64 mm (2.1 inch) maximum excursion from small to small
  • dual silicone spider and triple roller surround
  • aluminum demodulation ring

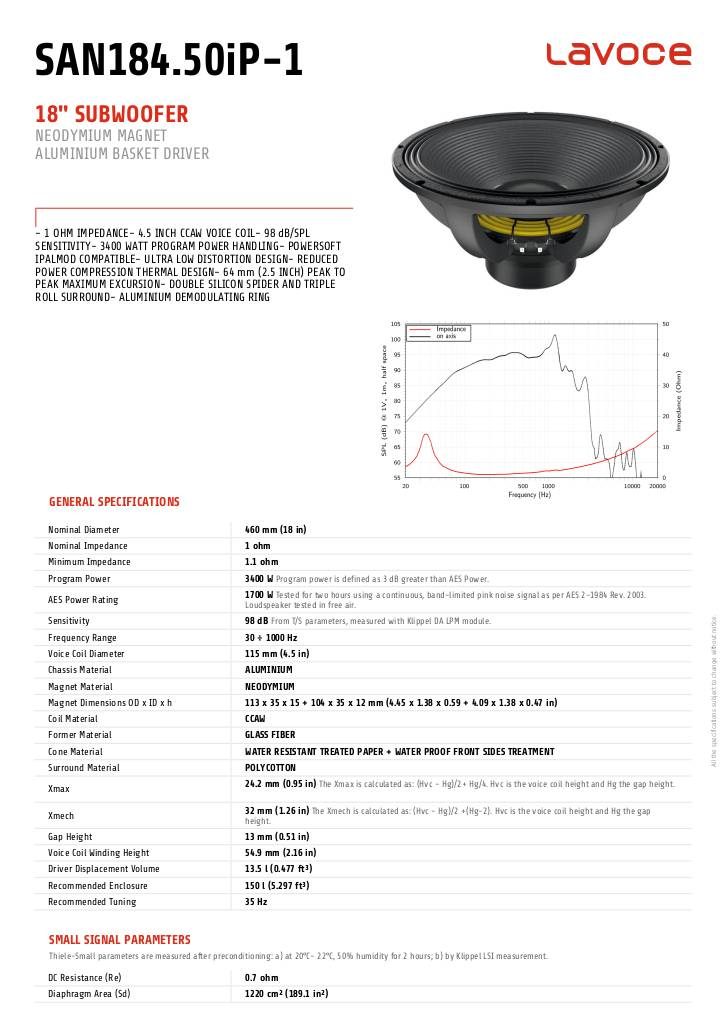

Scheda tecnica

n-20260904145231-lavoce-san184-50ip-1.pdf

LaVoce SAN184.50iP-1 technical specifications

  • Nominal diameter 460 mm (18 in)
  • Nominal impedance 1 ohm
  • Minimum impedance 1.1 ohm
  • Musical power (program) 3400 W
  • Rated power AES 1700 W
  • Sensitivity 98 dB
  • Frequency range 30 ÷ 1000 Hz
  • Voice coil diameter 115 mm (4.5 in)
  • Basket material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 113 x 35 x 15 + 104 x 35 x 12 mm (4.45 x 1.38 x 0.59 + 4.09 x 1.38 x 0.47) in)
  • Voice coil wire material CCAW
  • Coil support material FIBERGLASS
  • Cone material WATER RESISTANT TREATED PAPER + WATERPROOF TREATMENT OF FRONT SIDES
  • Suspension material POLYCOTTON
  • Xmax 24.2 mm (0.95 in)
  • Xmech 32 mm (1.26 in)
  • Gap height 13 mm (0.51 in)
  • Voice coil winding height 54.9 mm (2.16 in)
  • Speaker occupied volume 13.5 l (0.477 ft³)
  • Recommended load volume 150 l (5.297 ft³)
  • Recommended tuning frequency 35 Hz
  • DC resistance (Re) 0.7 ohm
  • Effective diaphragm area (Sd) 1220 cm² (189.1 in²)
  • Resonance frequency (Fs) 34 Hz
  • Mobile mass (Mms) 351.5 g (12.399 oz)
  • Compliance (Cms) 0.062 mm/N
  • Force factor (BxL) 17.25 N/A
  • Mechanical merit factor (Qms) 3.82
  • Electrical merit factor (Qes) 0.18
  • Total merit factor (Qts) 0.17
  • Equivalent air volume (Vas) 130.6 l (4.612 ft³)
  • Voice coil inductance (Le) 0.2 mH
  • Reference efficiency (Eta 0) 2.81 %
  • EBP 189 Hz
€ 1010,20 Price incl. VAT
