SAF184.01 18"/460mm Subwoofer

LaVoce
Your price:
€ 241,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
1400 Watt
RMS Power
700 Watt
Frequency Response
30 - 1500 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
11,9 Kg
Voice Coil Diameter
100 mm

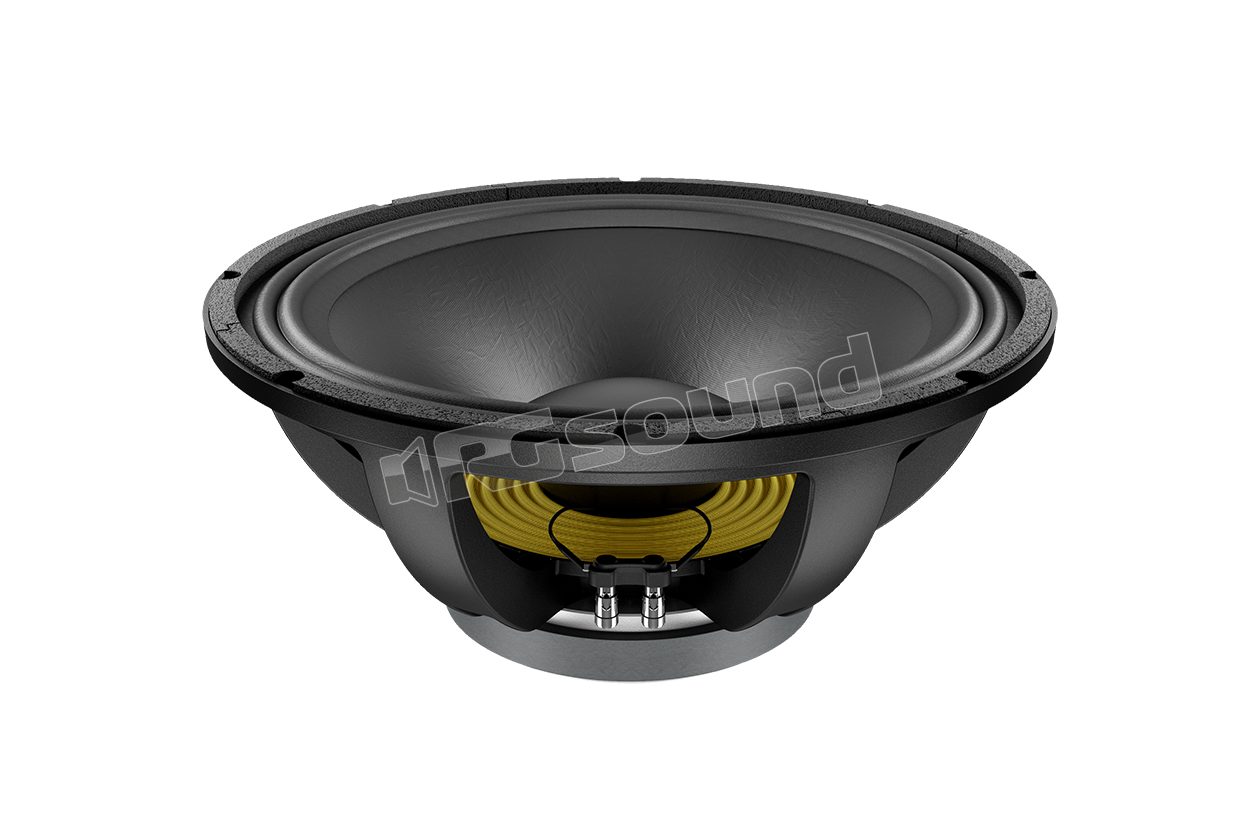

LaVoce SAF184.01 18"/460mm Subwoofer

LaVoce code 70R10182

SAF184.01 Features

  • 4 inch copper voice coil
  • Sensitivity 98 db/spl
  • Program power handling 1400 watts
  • Fem optimized motor and suspension
  • Optimized cooling system
  • Dual silicone spider
  • Non-resonant and durable basket design

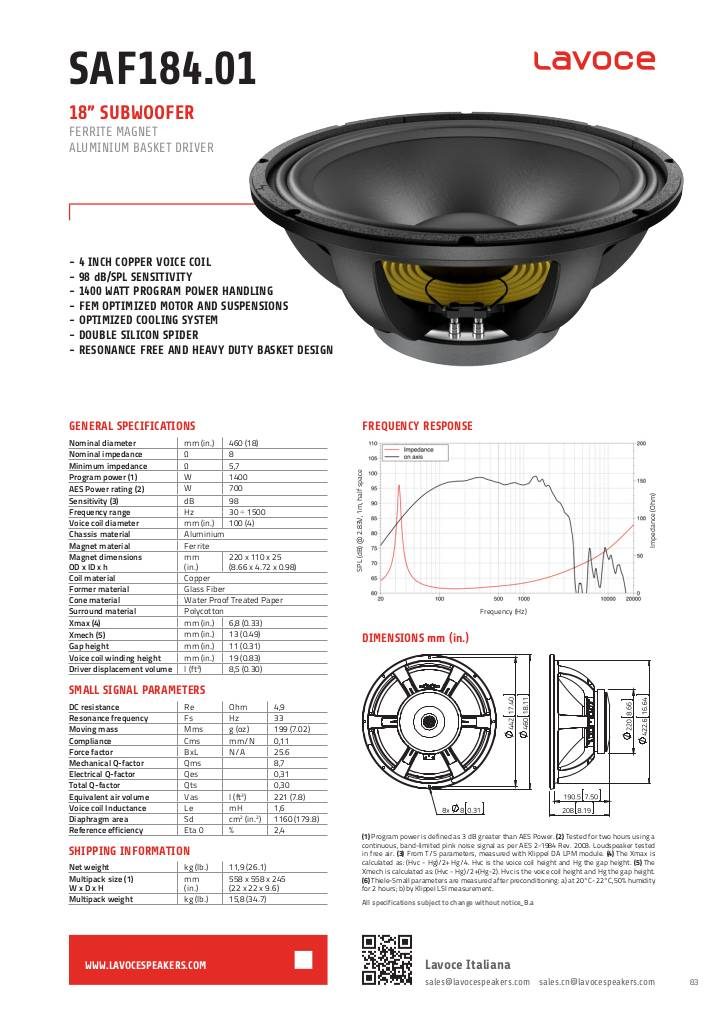

scheda tecnica

1549117050-saf18401-1.pdf

LaVoce SAF184.01 Technical Specifications

  • Nominal diameter mm (in) 460 (18)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.7
  • Program power W 1400
  • AES power W 700
  • Sensitivity dB 98
  • Frequency range Hz 30 ÷1500
  • Voice coil diameter mm (in) 100 (4)
  • Basket material Aluminum
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 220 x 110 x 25 (8.66 x 4.72 x 0.98)
  • Coil material Copper
  • Cone material Water resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 6.8 (0.33)
  • Xmech mm (in) 13 (0.49)
  • Gap height mm (in) 11 (0.31)
  • Voice coil winding height mm (in) 19 (0.83)
  • Driver displacement volume l (ft³) 8.5 (0.30)
  • DC resistance Ohm 4.9
  • Resonance frequency Hz 33
  • Moving mass g (oz) 199 (7.02)
  • Compliance mm/N 0.11
  • Force factor N/A 25.6
  • Mechanical Q factor 8.7
  • Electrical Q factor 0.31
  • Total Q factor 0.30
  • Equivalent air volume l (ft3) 221(7.8)
  • Voice coil inductance mH 1.6
  • Diaphragm area cm2 (in.2) 1160 (179.8)
  • Reference efficiency 2.4%
  • Net weight kg (lb) 11.9 (26.1)
  • Multipack dimensions L x W x H 558 x 558 x 245 (22 x 22 x 9.6)
  • Multipack weight kg (lb) 15.8 (34.7)
