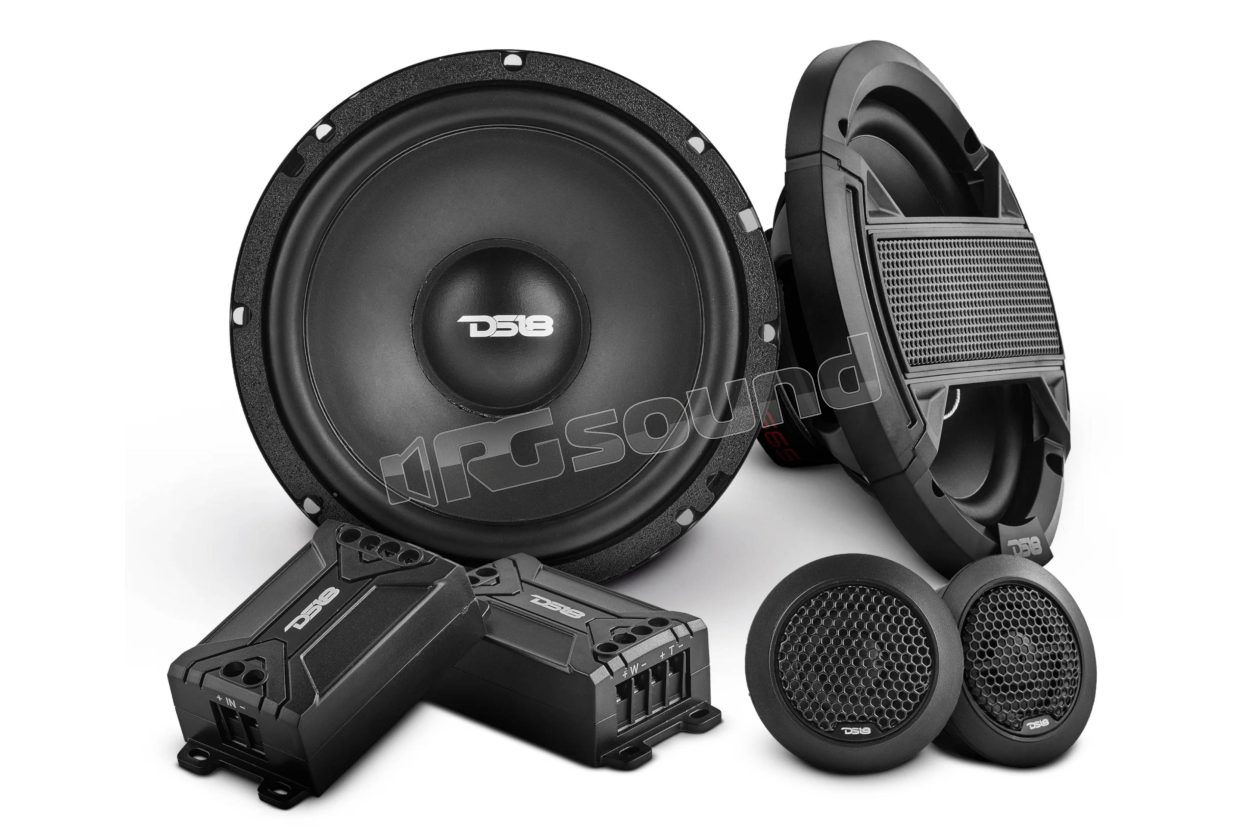

S65C 6.5” 2-Way Component Speaker Set, 200 Watts at 4 Ohms

DS18

Coming soon

Your price:
€ 60,00
Price per pair (VAT included)
Type
2-way separate kit
Frequency Response
35-20KHz Hertz
Woofer Size
165 mm
MAX Power
200 Watt
RMS Power
65 Watt
Sensitivity
87 dB

DS18 S65C 2-way 6.5" component speaker set 200 watts at 4 ohm

This premium component speaker system has been designed to deliver exceptional sound and elevate your car's audio to new levels. Featuring two 6.5" woofers, two 1.5" tweeters and two 2-way passive crossovers, the S65C offers a complete audio solution for your vehicle.

The S65 woofers fit perfectly into any vehicle's audio system. The nominal impedance of 4 Ohm ensures compatibility with a wide range of amplifiers, allowing you to customize your audio system to your preferences. With a maximum power of 180 W, these speakers are capable of handling even the most demanding audio configurations. The included grille provides an additional layer of protection against impacts and scratches.

The neodymium tweeter is designed to ensure precision and exceptional response. The neodymium magnet guarantees excellent efficiency and power handling, while the lightweight design ensures that the tweeter can respond with precision to sound changes. Also included are two 2-way passive crossovers that accurately separate the wattage and frequencies for your component set, ensuring a long-lasting and great sound experience.

With a nominal impedance of 4 OHM and RMS power handling of 65W (MAX power handling of 200W) for each passive crossover, this component set offers powerful and balanced sound across a wide frequency range of 35Hz-20KHz. Experience the power of the DS18 S65C 2-way component set and transform your car's audio today.

Scheda tecnica

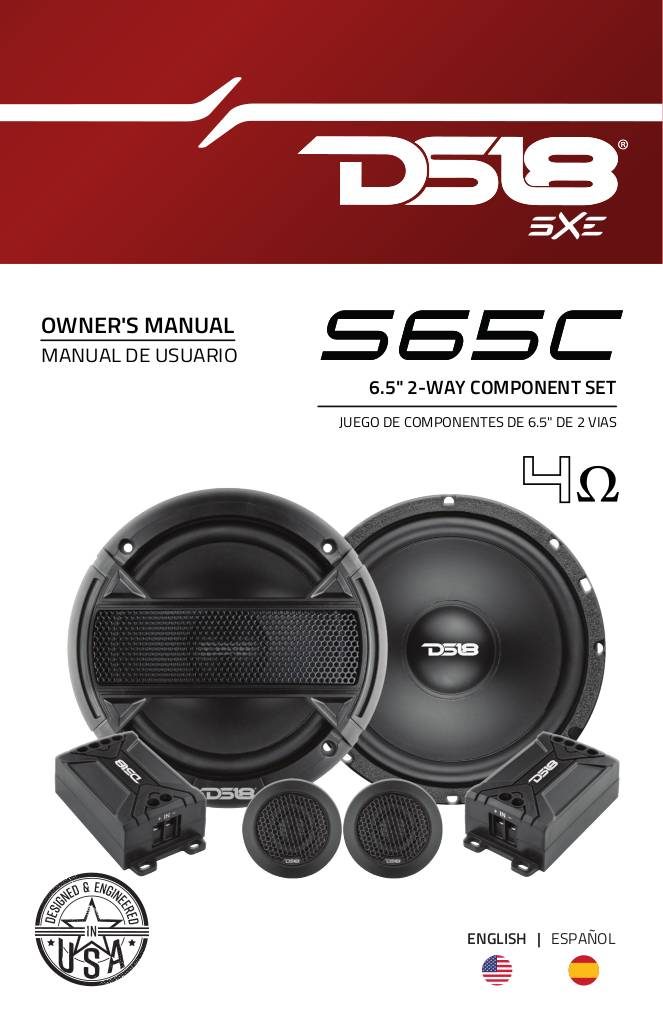

n-20241030151545-s65c-scheda-tecnica.pdf

DS18 S65C Technical Specifications

  • Nominal diameter 6.5" / 165 mm
  • Nominal impedance 4 Ohm
  • RMS power handling 65W
  • Maximum available power 200 W
  • Sensitivity (1w/1m) 87dB
  • Frequency response 35Hz-20KHz
  • Recommended high-pass crossover 60Hz
  • Number of ways 2
  • Pair or single pair
  • Grille included Yes

Woofer specifications

  • Voice coil diameter 1" / 25.5 mm
  • Voice coil material ASV
  • Winding material EISV
  • Cone material PPI
  • Rubber surround material
  • Basket material Steel
  • Basket color/finish Matte black
  • Magnet material Barium ferrite
  • Magnet weight 9.87oz / 280g

Woofer measurements

  • Overall diameter 6.5" / 165.5 mm
  • Overall depth 2.44" / 62 mm
  • Overall diameter (with grille) 7" / 179 mm
  • Overall depth (with grille) 3.22" / 82mm
  • Baffle cutout for front mounting 5.6" / 143mm
  • Mounting depth 2.24" / 57mm / 57 mm
  • Motor diameter 3.15" / 80 mm

Tweeter specifications

  • Voice coil diameter 0.52" / 13 mm / 13 mm
  • Voice coil material KAPTON
  • Winding material EISVM
  • Diaphragm material MYLAR
  • Magnet material Neodymium
  • Magnet weight 1.8 g
  • Overall diameter 1.5" / 39 mm
  • Overall depth 0.66" / 17 mm
  • Overall diameter with adapter 1.96" / 50 mm
  • Overall depth with adapter 0.98" / 25 mm
  • Baffle cutout for front mounting with adapter 1.77" / 45mm
  • Mounting depth with adapter 0.76" / 19.5 mm

Crossover specifications

  • Passive crossover modes 2 (Woofer / Tweeter)
  • Crossover point frequency 3.5KHz
  • Cutoff slope 12dB/Oct
  • Tweeter attenuation N/A
  • Capacitor type Metal film
  • Coil type Inductor
  • Terminal type mScrew
  • Housing material ABS
  • Overall length 1.88" / 48 mm
  • Overall width 2" / 52 mm
  • Overall height 1.18" / 30mm / 30 mm
  • Gross weight of single unit 1.3 KG
