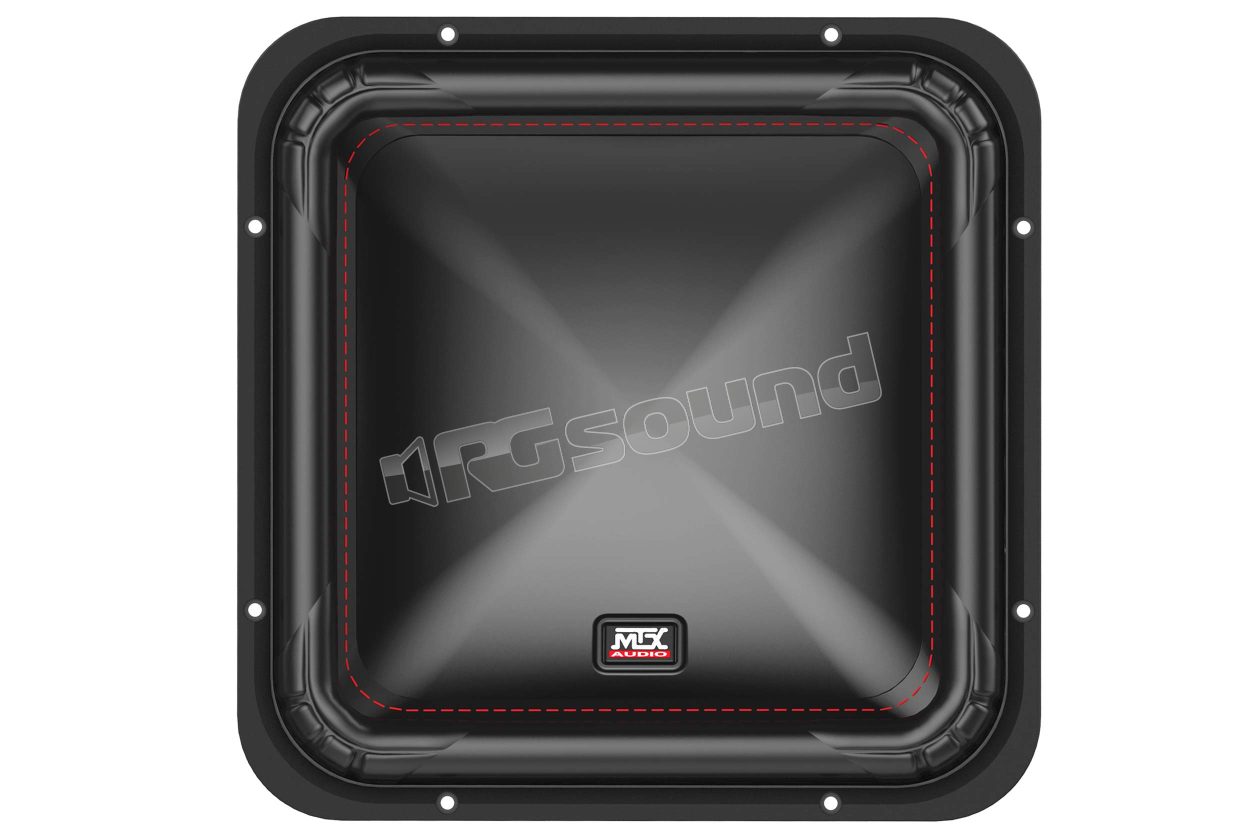

S6512-44 30 cm sub with dual 4 Ohm voice coil

MTX audio

Discontinued

Your price:
€ 299,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
23 - 130 Hertz
Sensitivity
86.7 dB
Impedance
4 + 4 Ohm
Installation Depth
176 mm

MTX Audio S6512-44 square subwoofer 300 mm (12"), 500W RMS, with dual 4 Ohm voice coil

Patented technology that delivers more SPL
The S65 series square subwoofers are built to deliver exceptional bass SPL. S6512-44 has a 2" dual voice coil, designed for enthusiasts who want to add extreme bass to their system. It has more surface area compared to a standard round subwoofer and a patented angular geometry that increases Xmax, the S6512-44 square subwoofer delivers exceptional volume displacement that translates into exceptional SPL.

Equipped with advanced cooling technology (Spider Plateau Venting which is a mechanical cooling process that directs cold air onto the voice coil) to dissipate heat away from the voice coil through the back plate, thus preventing overheating during intense work sessions.

This is a very high efficiency speaker that reproduces the amount of bass equivalent to that of a traditional subwoofer with 380 mm diameter.

The regularity of cone movement is ensured by a patented suspension, with progressive compliance, which increases its travel and keeps third-order distortion under control.

The lower plate of the magnet is designed as a true radiator for optimal heat dissipation.

MTX SQUARE has a contained working volume, which is 35 liters in closed enclosure (recommended) and 65 liters in reflex enclosure.

MTX Audio S6512-44 technical specifications

RMS Power (Watts) 500

Recommended Amp Power (RMS) 250 - 500

Peak Power (Watts) 1000

Impedance Dual 4Ω

Frequency Response 23Hz - 130Hz

Sensitivity 86.7dB (1W/1m)

Volume Displacement (cu in) 68.47

Voice Coil 2" (5.08 cm)

Mounting Depth 6.9375" (17.62cm)

Cut Out Diameter 11.125" (28.26cm)

Manuale utente

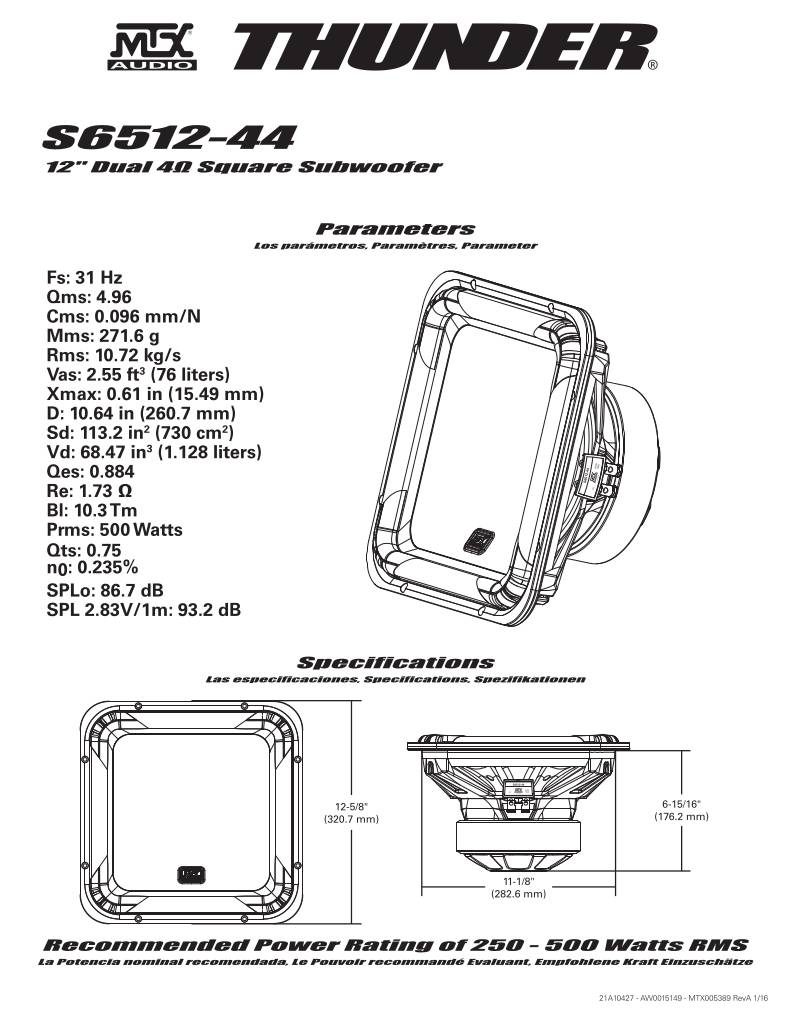

n-20170918171618-s6512-44-data-sheet.pdf
Discontinued
