S3-1224 2 or 4 Ohm impedance selector

JBL

Discontinued

Your price:
€ 209,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1500 Watt
RMS Power
500 Watt
Frequency Response
25 -175 Hertz
Sensitivity
92 dB
Impedance
2 - 4 Ohm
Installation Depth
175 mm

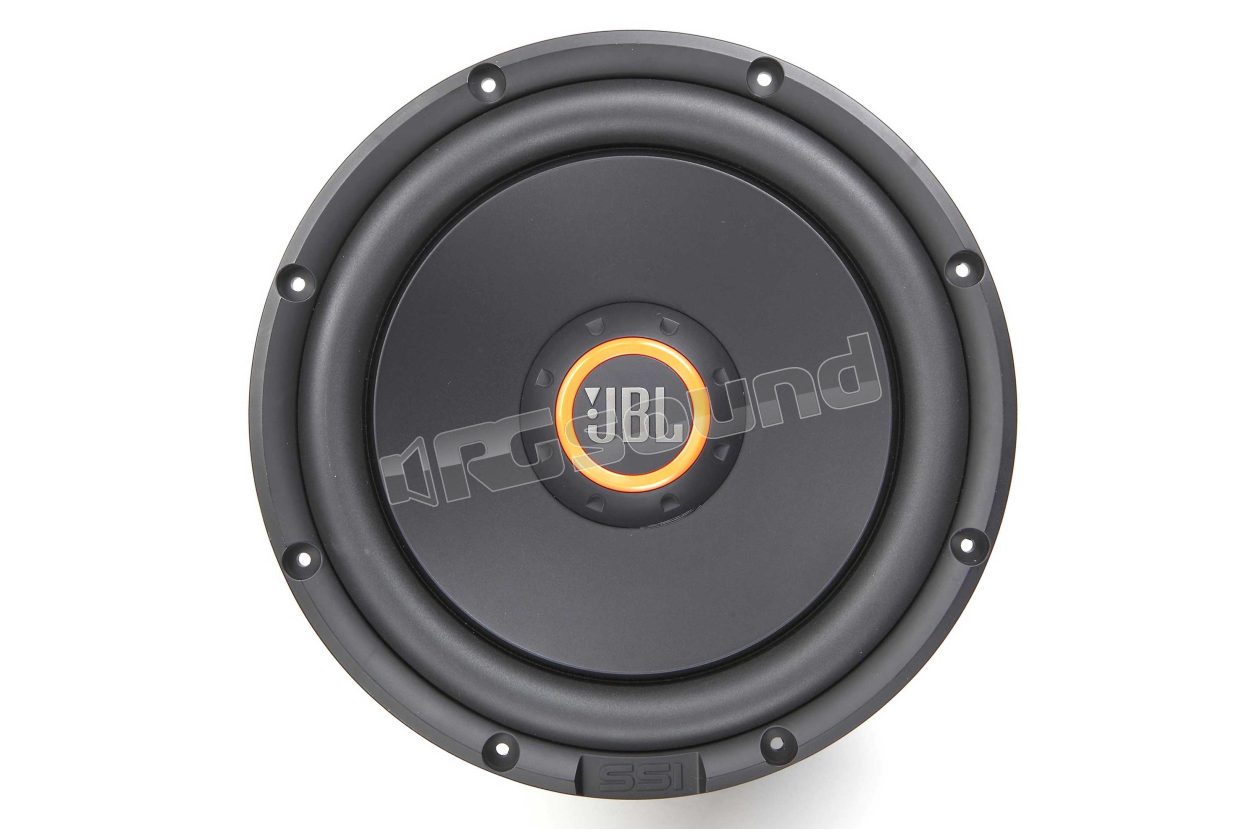

JBL S3-1224 high-performance 300mm subwoofer with 2 - 4 ohm impedance selector, 500W RMS power, 1500W peak

The JBL Series III subwoofers ensure good sound quality combined with high performance. Each sub in this series features the exclusive SSI (smart impedance selection), a switch that allows you to select the optimal impedance at 2 or 4 Ohm. Special aero-cooling design in the voice coil increases power handling and reliability. An oversized voice coil capable of handling more power compared to common two-inch voice coils, and an aero-cooled design for efficient voice coil cooling. More power, greater reliability, greater flexibility.

S3-1224 Technical Features

Description: 12" (300mm) car audio subwoofer
Power Handling: 500W RMS, 1500W peak
Sensitivity (@ 2.83V): 92dB
Frequency Response: 25Hz - 175Hz
Voice Coil Diameter: 3" (75mm)
Impedance: 2 or 4 ohms
Cutout Diameter: 9-7/16" (239mm)
Mounting Depth: 6-15/16" (175mm)

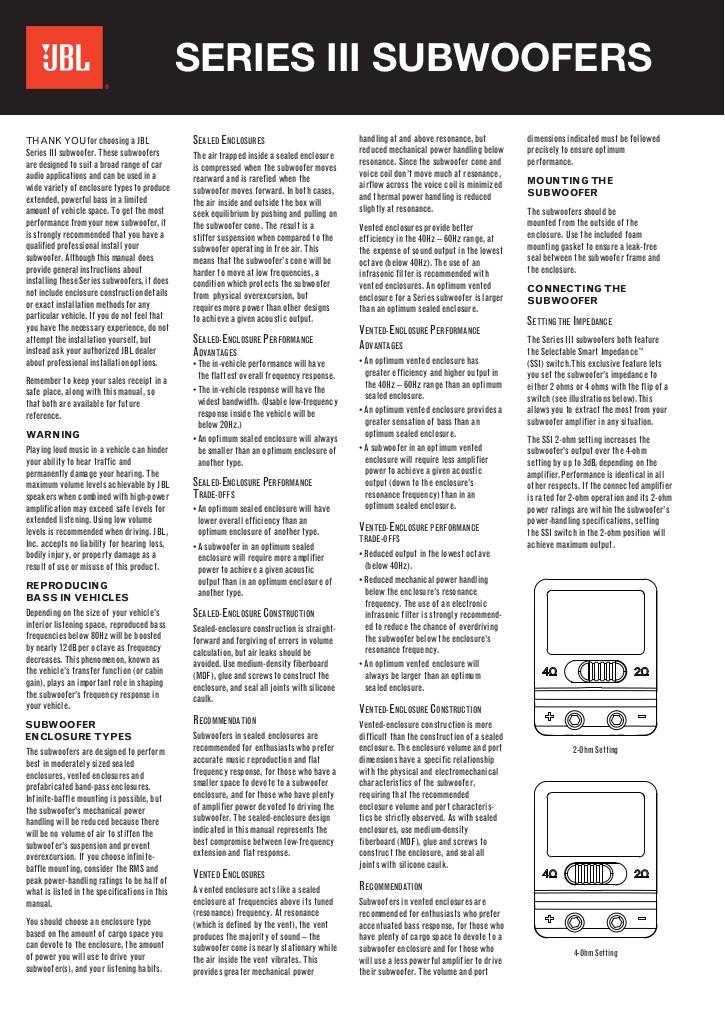

Manuale utente

n-20160912175350-seriesiii-om-en.pdf

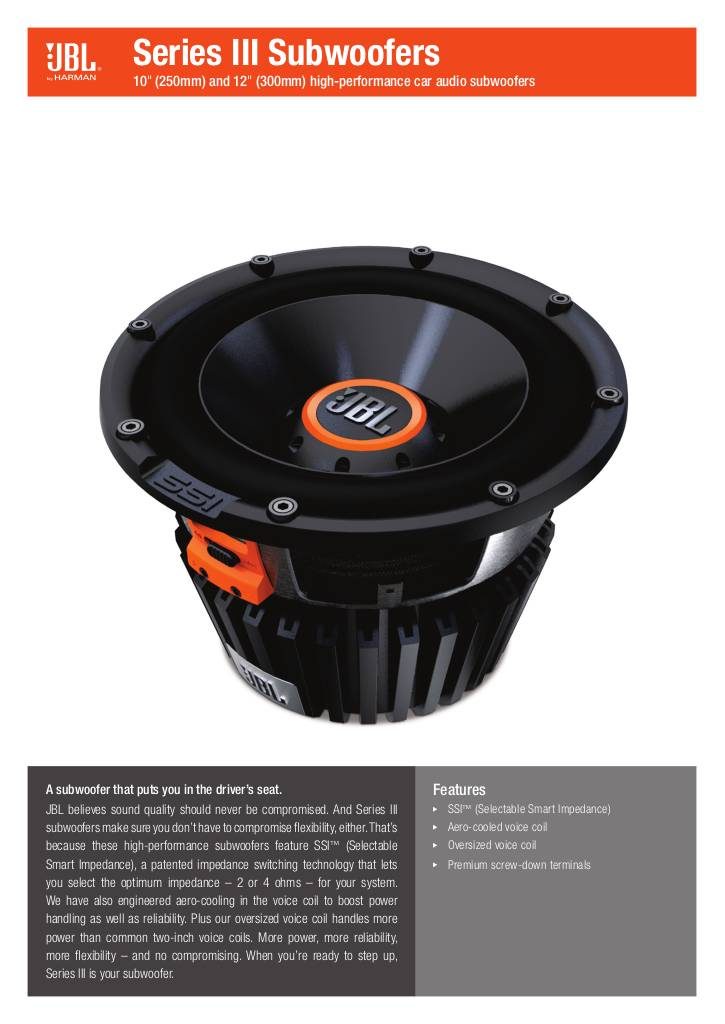

Scheda tecnica

n-20160912175350-jbl-series-iii-woofers-specsheet-updated.pdf
