S3-1024 2 or 4 Ohm impedance selector

JBL

Discontinued

Your price:
€ 189,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1350 Watt
RMS Power
450 Watt
Frequency Response
30 - 175 Hertz
Sensitivity
91 dB
Impedance
91 Ohm
Installation Depth
175 mm

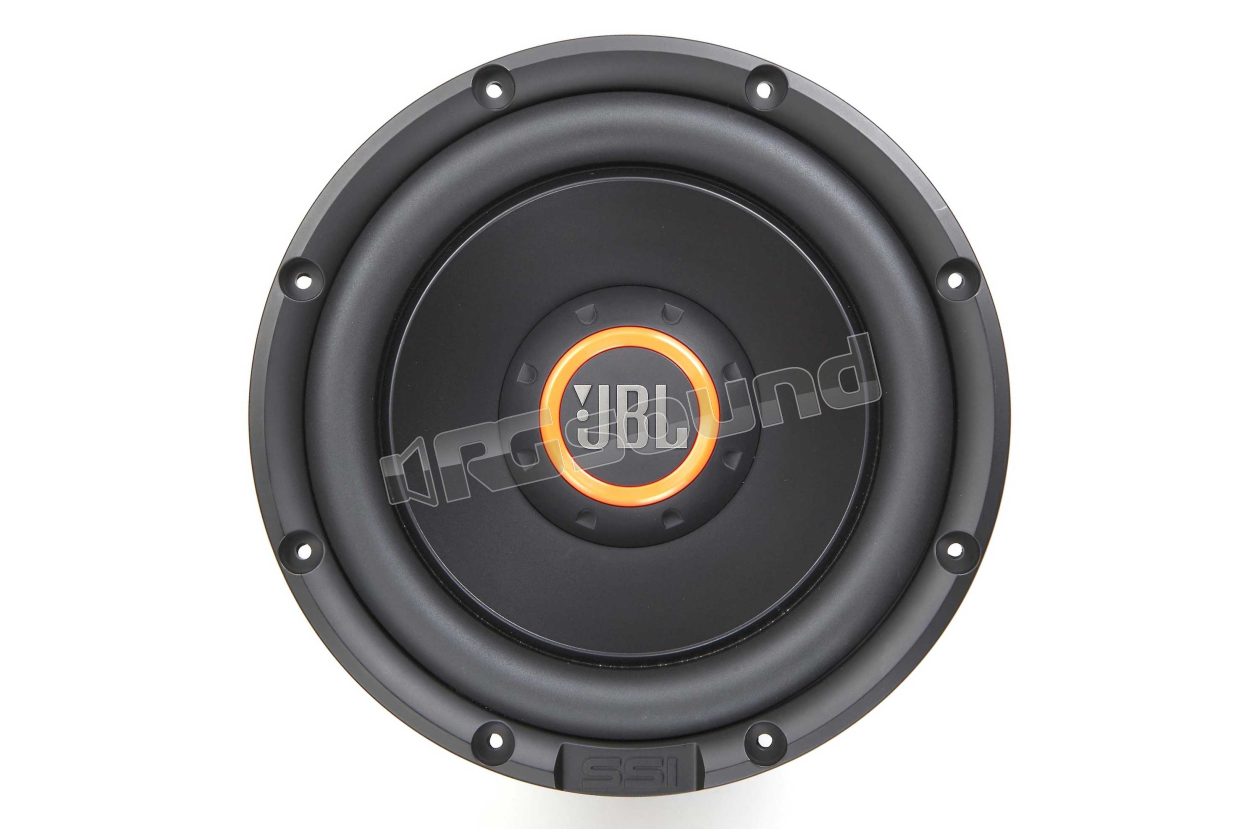

JBL S3-1024 250mm high-performance subwoofer with 2 - 4 ohm impedance selector, 450W RMS power, 1350W peak

The JBL Series III subwoofers ensure good sound quality combined with high performance. Each sub in this series is equipped with the exclusive SSI (smart impedance selection), a switch that allows you to select the optimal impedance at 2 or 4 Ohm. Special aero-cooling design in the voice coil increases power handling and reliability. An oversized voice coil capable of handling more power than common two inch voice coils, and an Aero-cooled design for efficient voice coil cooling. More power, greater reliability, greater flexibility.

S3-1024 Technical Features

Description: 10" (250mm) car audio subwoofer
Power Handling: 450W RMS, 1350W peak
Sensitivity (@ 2.83V): 91dB
Frequency Response: 30Hz - 175Hz
Voice Coil Diameter: 3" (75mm)
Impedance: 2 or 4 ohms
Cutout Diameter: 9-7/16" (239mm)
Mounting Depth: 6-15/16" (175mm)

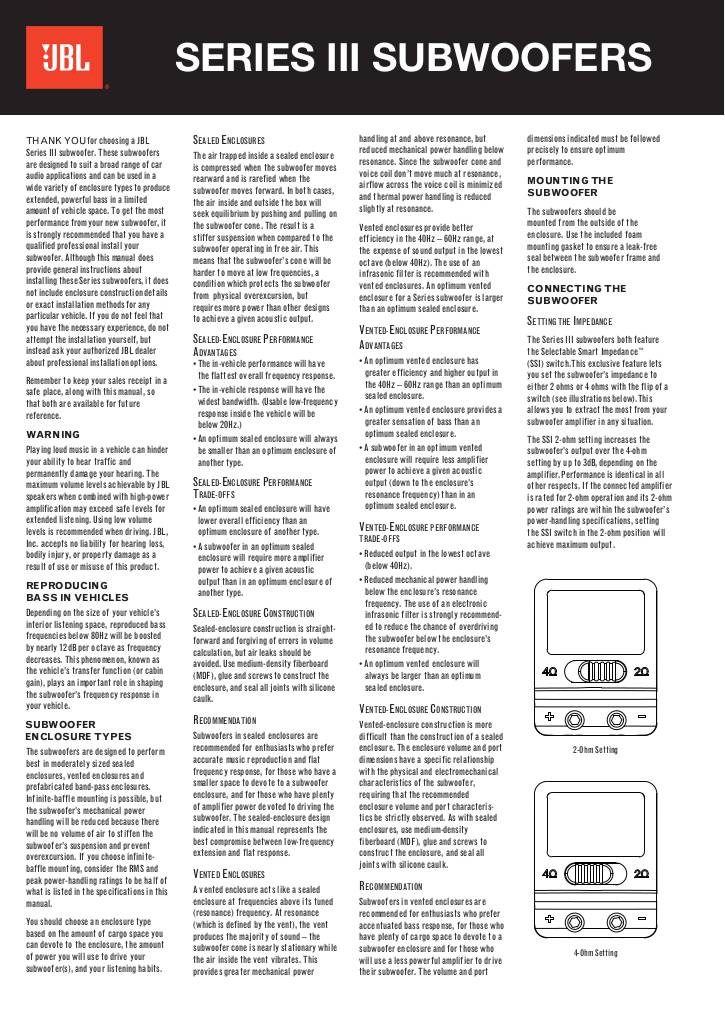

Manuale utente

n-20160912160159-seriesiii-om-en.pdf

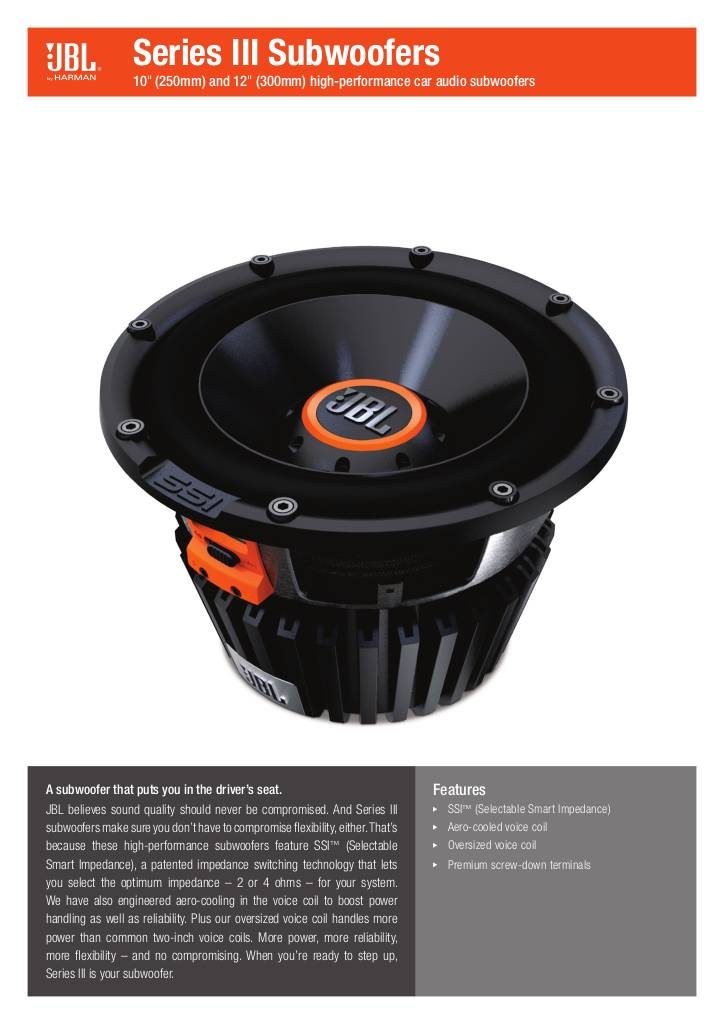

Scheda tecnica

n-20160912160159-jbl-series-iii-woofers-specsheet-updated.pdf
