S 62C

Helix

Discontinued

Your price:
€ 265,00
Price per single item (VAT included)

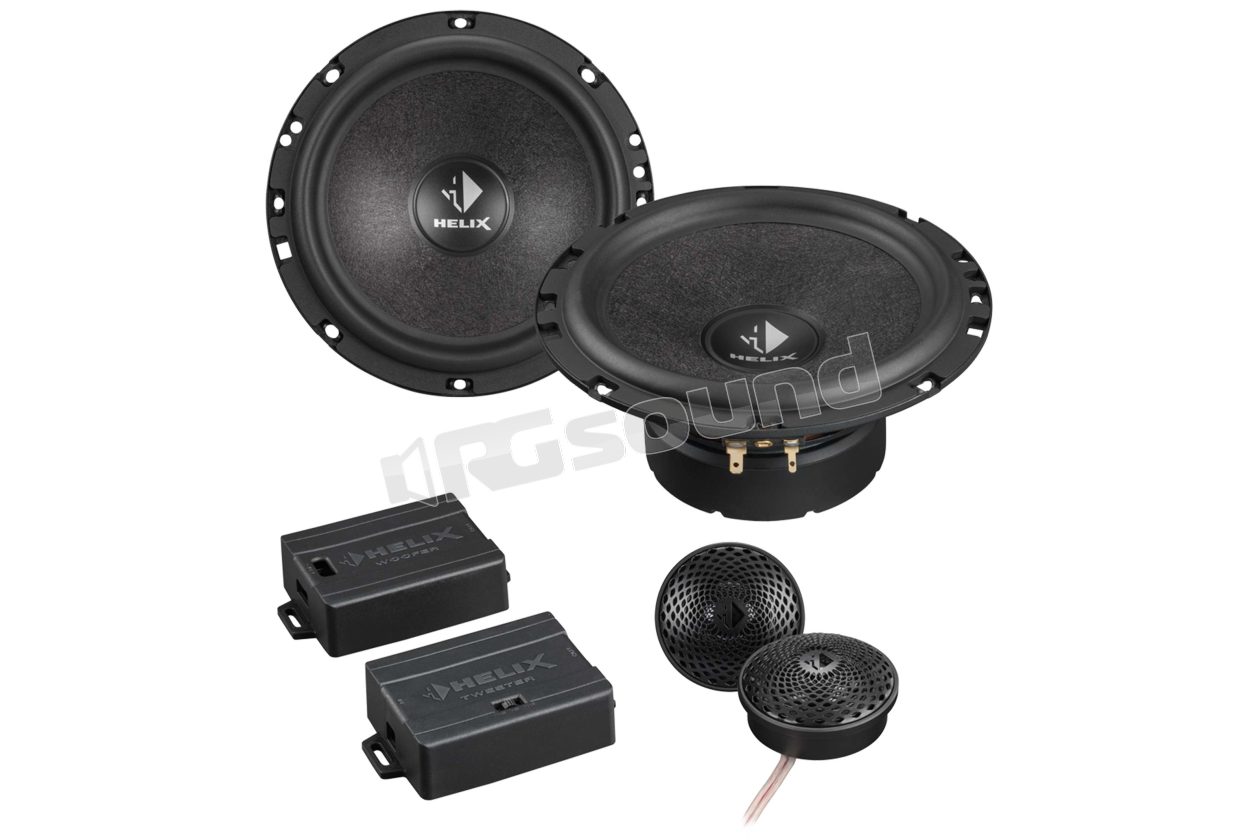

Helix S 62C 2-way speaker kit consisting of a pair of 165mm woofers, a pair of 25mm tweeters and dedicated crossovers

6.5"/165 mm woofer with cone made of basalt-paper fiber compound: a perfect combination of reduced weight, high rigidity and internal damping.

1"/25 mm silk dome tweeter in an aluminum housing for balanced and natural sound reproduction and minimal compression effects.

Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling.

Separate "Flex-Crossover", two-part design with 6/12 dB slope, band-pass filter and three-stage tweeter level adjustment suitable for installation in vehicles with separate tweeter and woofer mounting positions.

Crossovers equipped exclusively with high-quality components, e.g. low-distortion air-core coils and Audiotec foil capacitors with minimal losses for tweeter crossovers.

Woofer grilles USG 6 sold separately.

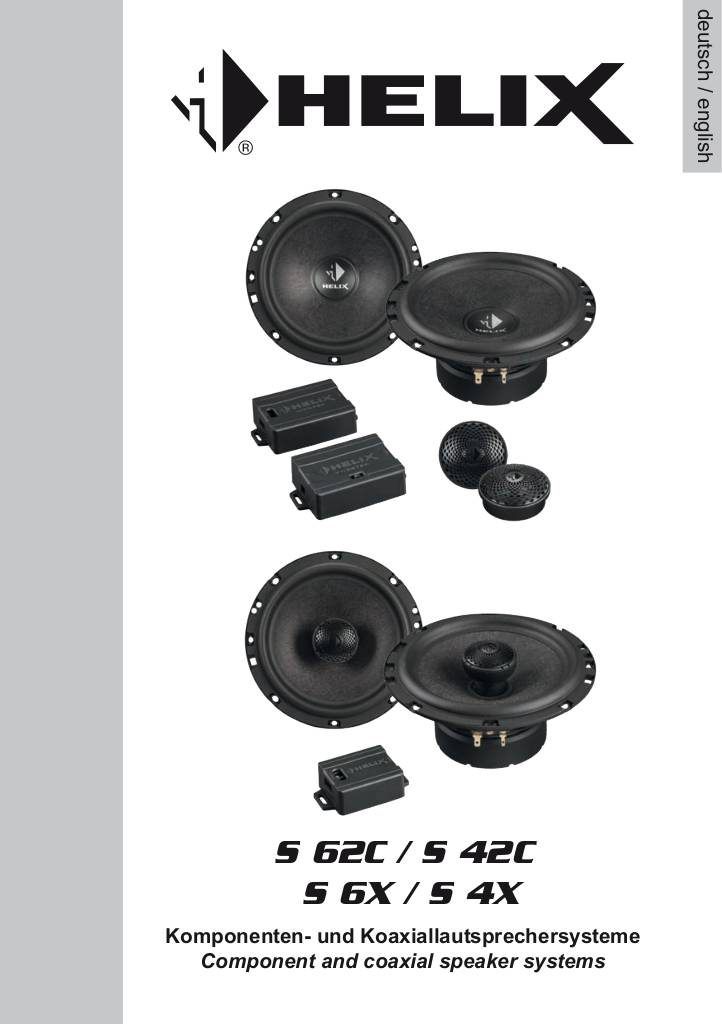

Manuale utente

n-20191106123031-ba-s-series-speaker-2019.pdf

Helix S 62C technical specifications

RMS / max. power 100/200 watts
Frequency response 45 Hz - 25,000 Hz
Impedance 4 Ω
Efficiency 1 W / 1 m 90 dB
Crossover 6/12 dB with band-pass filter, tweeter protection and tweeter level adjustment

Cone material
TW: Coated silk dome
W: Basalt fiber paper compound

External diameter
TW: 51 mm / 2.0 "
W: 165 mm / 6.50 "

Installation diameter
TW: 45 mm / 1.77 "
W: 143 mm / 5.63 "

Installation depth
TW: 14 mm / 0.55 "
W: 65 mm / 2.56 "

Crossover dimensions
TW: 88 x 68 x 28 mm / 3.46 x 2.67 x 1.10 "
W: 88 x 68 x 28 mm / 3.46 x 2.67 x 1.10 "

Discontinued
