S 62C.2

Helix

Discontinued

Your price:
€ 281,10
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
50 - 25.000 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
220 Watt
RMS Power
75 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Cupola in seta

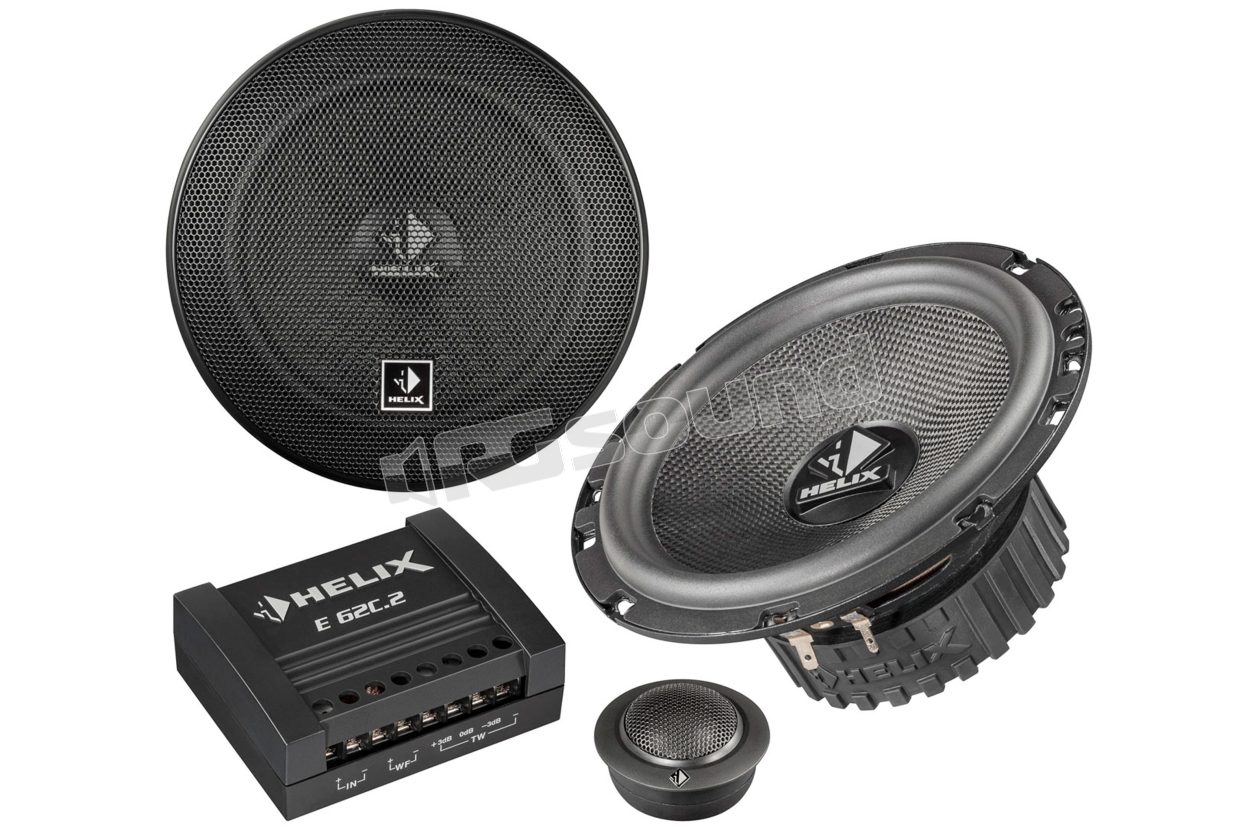

Helix S 62C.2 new speakers from the E series, a benchmark for exceptional build quality and acoustic performance. This kit consists of a pair of 165mm woofers, a pair of 25mm tweeters, a pair of dedicated crossovers and speaker grilles.

Skillful construction combined with selected materials ensures an exceptional listening experience and maximum reliability. The woofer cones of this speaker series are made of woven fiberglass. The structure provides essential rigidity with high internal damping, so no annoying resonance. The result: powerful and clear reproduction of low frequencies.

A rigid basket with additional ventilation holes and our proprietary HELIX design ensure maximum voice coil cooling and high power handling. Their sound characteristics and reliability are the result of our specially shaped butyl surrounds.

The extensive tuning of the crossover brings with it precise frequency division. The tweeter has also been upgraded. Its beautiful high-frequency resolution will ensure bright and well-balanced highs. It guarantees a flat frequency response and unprecedented harmonic sound. The classic design underscores the high-end appearance of this speaker series.

Helix S 62C.2 main features

6.5"/165 mm woofer with very rigid and non-resonant woofer cone in woven fiberglass
Specially shaped butyl surround for greater effective cone area and greater maximum excursion
1"/25 mm silk dome tweeter with neodymium magnet for bright and smooth treble response
Tweeters are tiltable by 25° for perfect alignment with the listening position
Individual HELIX design basket with additional ventilation holes for better voice coil cooling and high power handling
Complex separate crossover with 6/12 dB slope, bandstop filter, tweeter protection and adjustable tweeter level
Included grille

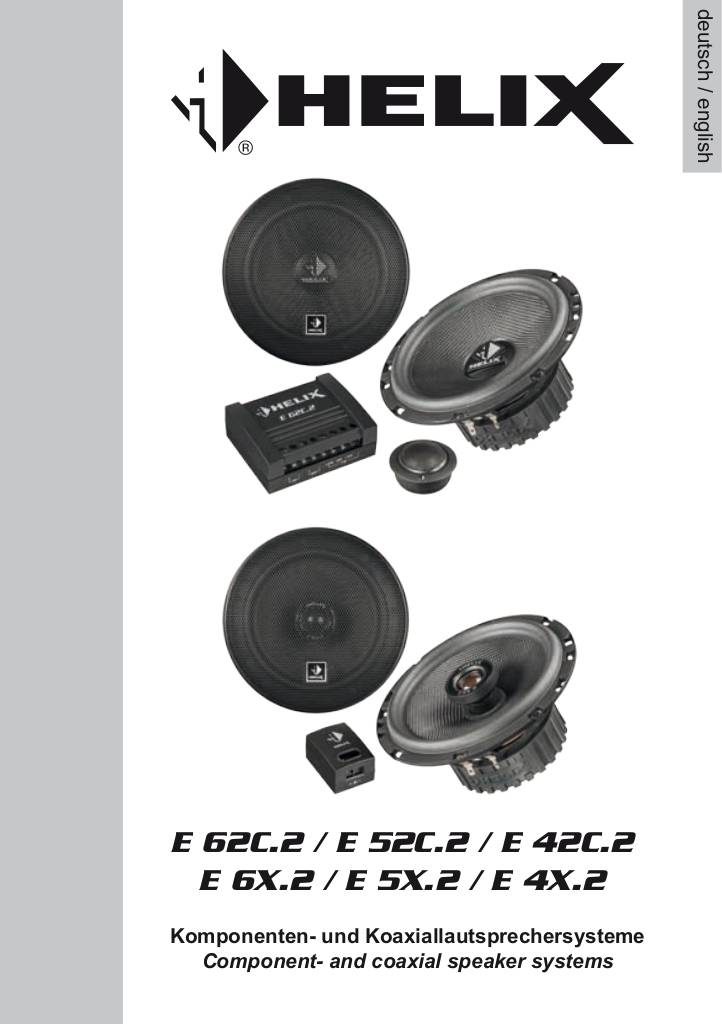

Manuale utente

n-20221117153444-ba-e-2-series-speaker.pdf

Helix S 62C.2 technical specifications

RMS / max. power 75/220 Watt
Frequency response 50 Hz - 25,000 Hz
Impedance 4Ω
Efficiency 1 W / 1 m 91 dB
Separate crossover, 6/12 dB slope, bandstop filter, tweeter protection and adjustable tweeter level

Cone material
TW: silk dome
WF: woven fiberglass

External diameter
TW: 54.7 mm
WF: 165.5 mm

Installation diameter
TW: 47 mm / 1.85"
WF: 143 mm / 5.63"

Installation depth
TW: 17.5 mm / 0.70"
WF: 65 mm / 2.56"
