S 42C 2-way speaker system with 10cm woofer

Helix

Discontinued

Your price:
€ 234,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
100 Hertz
Woofer Size
100 mm
Tweeter Size
25 millimetri
MAX Power
140 Watt
RMS Power
70 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Cellulosa e fibra di basalto
Tweeter Material
Cupola in seta

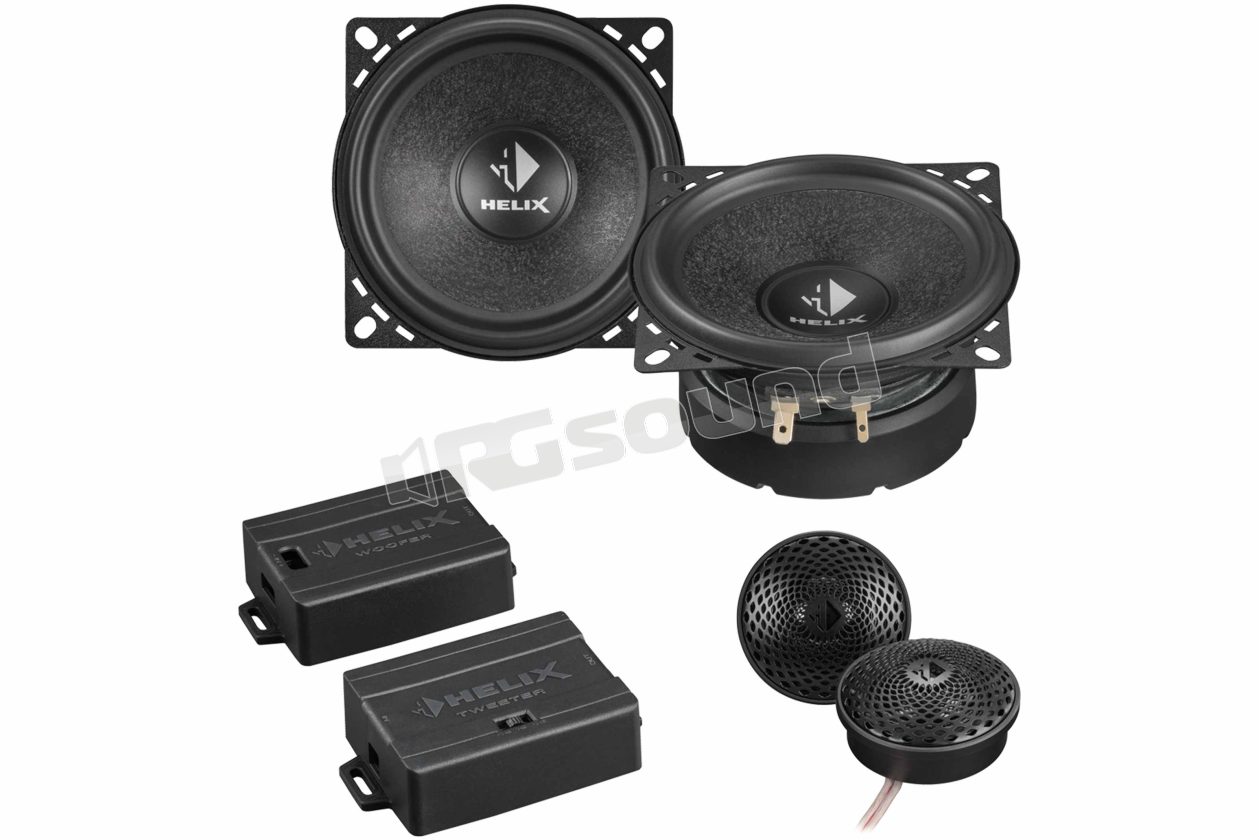

Helix S 42C 2-way speaker kit composed of a pair of 100mm woofers, a pair of 25mm tweeters and dedicated crossovers

4" / 100 mm woofer with cone composed of paper fiber and basalt: a perfect combination of reduced weight, high rigidity and internal damping.

1" / 25 mm silk dome tweeter in an aluminum housing for balanced and natural sound reproduction and minimal compression effects.

HELIX basket with additional ventilation holes for better coil cooling and high power handling.

Separate "Flex-Crossover", with 12/12 dB slope, band-pass filter and three-stage tweeter level adjustment - suitable for installation in vehicles with separate tweeter and woofer mounting positions.

Crossovers equipped exclusively with high quality components, e.g. low distortion air core coils and Audiotec film capacitors with minimal losses for tweeter crossover.

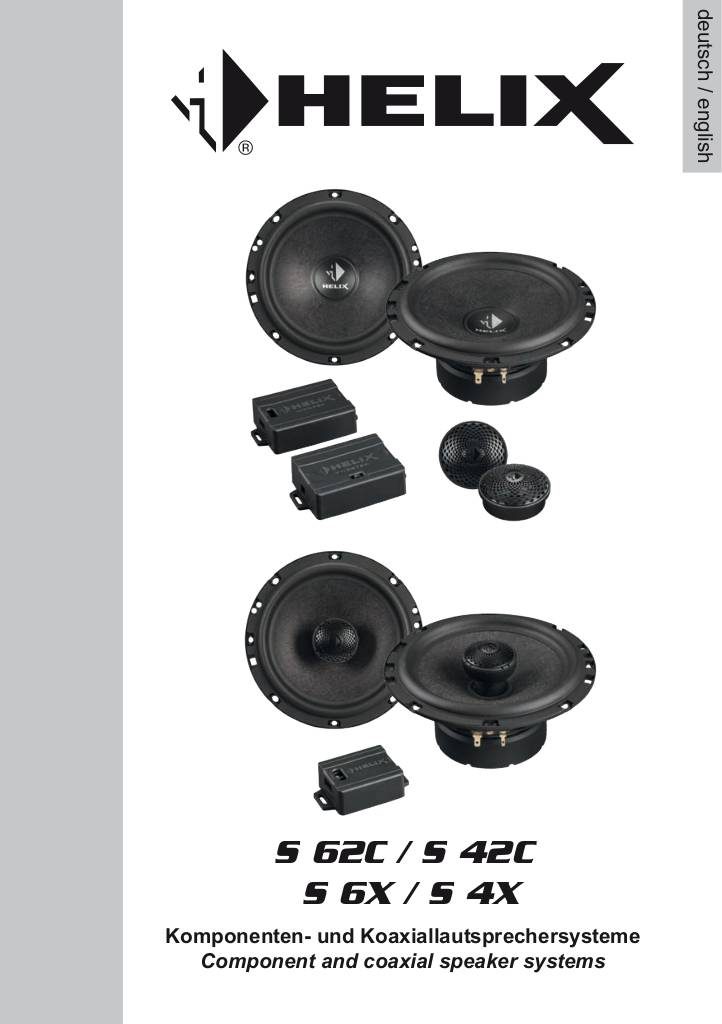

Manuale utente

n-20191106143411-ba-s-series-speaker-2019.pdf

Helix S 42C technical specifications

RMS / max. power 70/140 Watt
Frequency response 75 Hz - 25,000 Hz
Impedance 4 Ω
Efficiency 1 W / 1 m 89 dB

Crossover 12/12 dB with band-pass filter, tweeter protection and tweeter level adjustment

Cone material
TW: Coated silk dome
W: Basalt fiber paper compound

External diameter
TW: 51 mm / 2.0"
W: 102 mm / 4.01"

Installation diameter
TW: 45 mm / 1.77"
W: 92.3 mm / 3.63"

Installation depth
TW: 14 mm / 0.55"
W: 46.5 mm / 1.83"

Crossover dimensions:
TW: 88 x 68 x 28 mm / 3.46 x 2.67 x 1.10"
W: 88 x 68 x 28 mm / 3.46 x 2.67 x 1.10"

Discontinued
