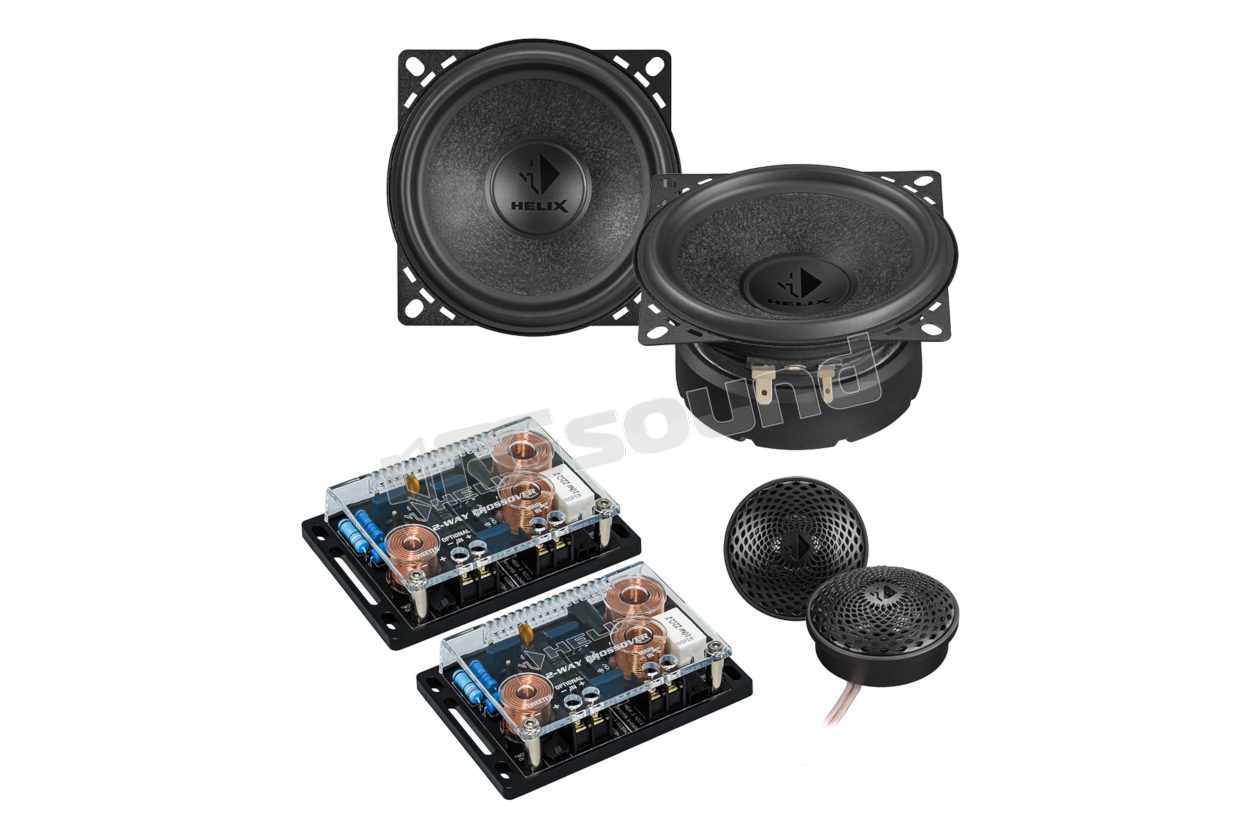

S 42C.2 2-way speaker system with 10cm woofer

Helix

Discontinued

Your price:
€ 279,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
75 - 25.000 Hertz
Woofer Size
100 mm
Tweeter Size
25 millimetri
MAX Power
140 Watt
RMS Power
70 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Cupola in seta

HELIX S42C.2 2-Way Woofer Component System 4" with 1" Tweeter and Crossover

With speakers from the S series, every journey becomes a special sound experience. The sophisticated design and the use of the latest technologies guarantee excellent sound characteristics with rich bass, precise midrange and crystal clear highs.

Helix S 42C.2 has an elegant and timeless design, the transparent "Flex-Crossover" with its high-quality components and the aluminum housing of the tweeter make this system a pleasure for the eyes. The removable tweeter housing and the innovative "Flex-Crossover" offer greater freedom in terms of connectivity and installation, even in particularly limited spaces. Furthermore, thanks to the Plug & Play connections between the individual components, the wiring is very simple. To drastically reduce the dimensions, the circuit board can also be installed without its housing in a foam provided in the package and can be divided into two parts for separate installation (for example, the tweeter in the A-pillar and the woofer in the door). In addition to the 3-stage tweeter level adjustment and Plug & Play cable connections, the crossover is also equipped with screw terminals for greater flexibility in connection with your speaker cables.

Helix S 42C.2 Features
  • 4" / 100 mm woofer with cone made of basalt fiber and paper compound
  • 1" / 25 mm silk dome tweeter in a noble aluminum housing for balanced and natural sound reproduction and minimal compression effects
  • Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
  • "Flex-Crossover" with 12/12 dB slope, bandtop filter and three-stage tweeter level adjustment - separable and therefore suitable for installation in vehicles with separate tweeter and woofer mounting positions
  • Crossovers are equipped exclusively with high-quality components, for example air-core coils with low distortion and Audiotec capacitors with minimal loss for the tweeter crossover.

2 x HELIX S 1T Tweeter incl. mounting material 2 x HELIX S 4B Woofer 2 x flexible crossover 4 x Foam sheet 1 x mounting material 1 x instruction manual 1 x mounting diagram

HELIX S42C.2 technical specifications

  • RMS / max. Power 70 / 140 Watt
  • Frequency response 75 Hz - 25.000 Hz
  • Impedance 4 Ω
  • Sensitivity 1 W / 1 m 89 dB
  • Cone material
    • TW: Coated silk dome
    • M: -
    • W: Basalt-fiber-paper compound
  • Crossover 12/12 dB with bandtop filter, tweeter protection and tweeter level adjustment
  • Outer diameter
    • TW: 51 mm
    • M: -
    • L: 102 mm
  • Installation diameter
    • TW: 45 mm
    • M: -
    • L: 92.3 mm / 3.63"
  • Installation depth
    • TW: 14 mm
    • M: -
    • L: 46.5 mm / 1.83"
  • Crossover dimensions 112 x 77.5 x 27 mm / 4.41 x 3.05 x 1.06"
Discontinued
