S 165N45 top-of-the-line slim 2-way kit

BLAM

Discontinued

Your price:
€ 585,00
Price per single item (VAT included)
Type
2-way separate kit
Woofer Size
165 mm
Tweeter Size
20 millimetri
Sensitivity
94 dB

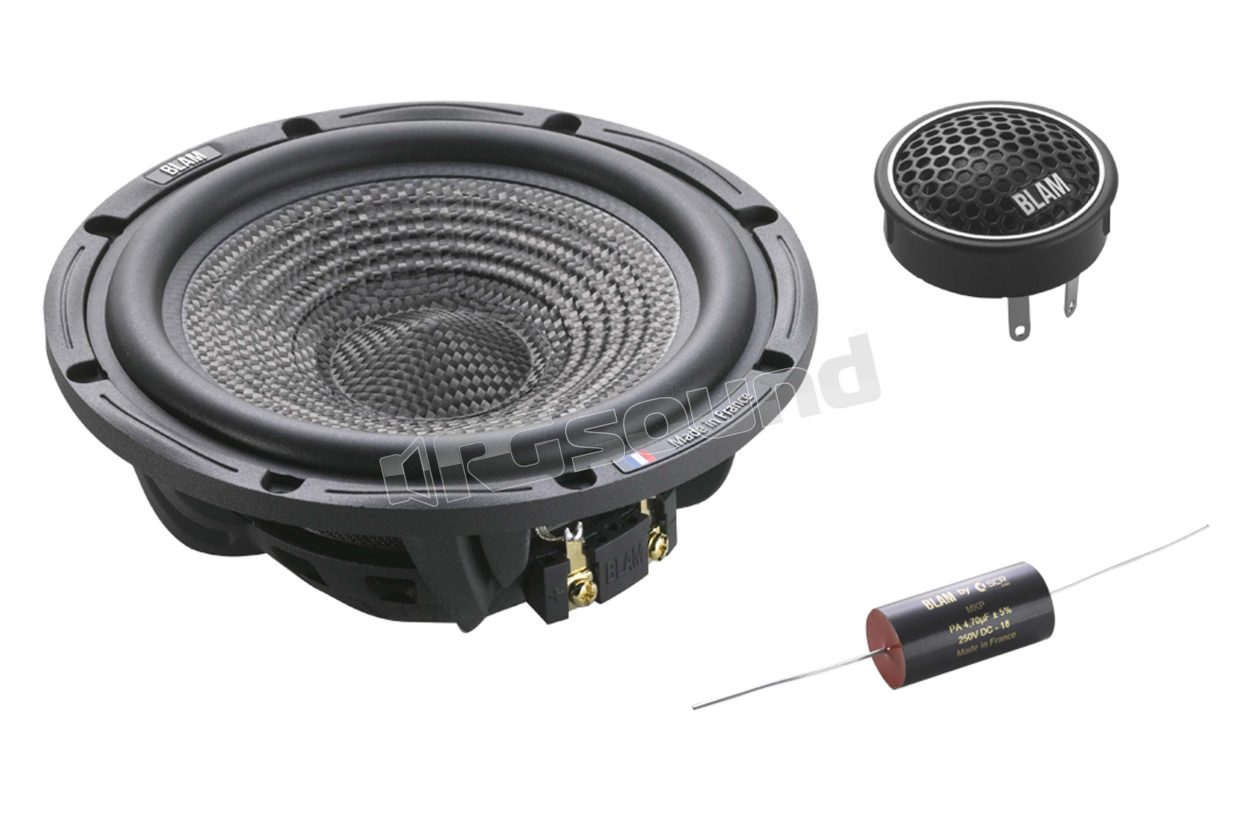

BLAM S 165N45 slim 2-way speaker system, composed of: pair of 165 mm (6.5") woofers, pair of 20 mm (3/4") tweeters with soft dome and pair of crossovers with capacitor.

BLAM S 165N45 is composed of:

2x Woofer WS 6N45

Die-cast aluminum basket
Ultra-rigid carbon cone with circular grooves to reinforce the cone
Butyl surround
Conex spider
34 mm voice coil and fiberglass former
High-quality neodymium magnet system

2x Tweeter TS 20 HR
Compact installation dimensions
High efficiency magnet (N38H neodymium)
Ferrofluuid for maximum power

2x Crossover Super Cap
Capacitors for audiophile performance

The SIGNATURE series by Blam is born

Signature means "Signature" but also "Distinctive Style" and it is an ambitious word.

From products called "Signature" specialists expect achievements and simply unique performance, so it is a word to be used with caution. BLAM, strong with considerable success achieved at launch, has decided to invest further in quality to position itself among the very few brands in car audio that can offer ultra-professional speakers.

The first decision was to bring ALL production from China to the newly built artisanal laboratory in France. Careful assembly and tolerances within the decibel.

The second decision was to use exclusively European manufactured components.

The third decision was to "delete" all pre-existing tweeters (a shame, they were exceptional!) to create five new models that would raise the bar even higher.

100% Made in France, 100% artisanal construction, 100% top performance.

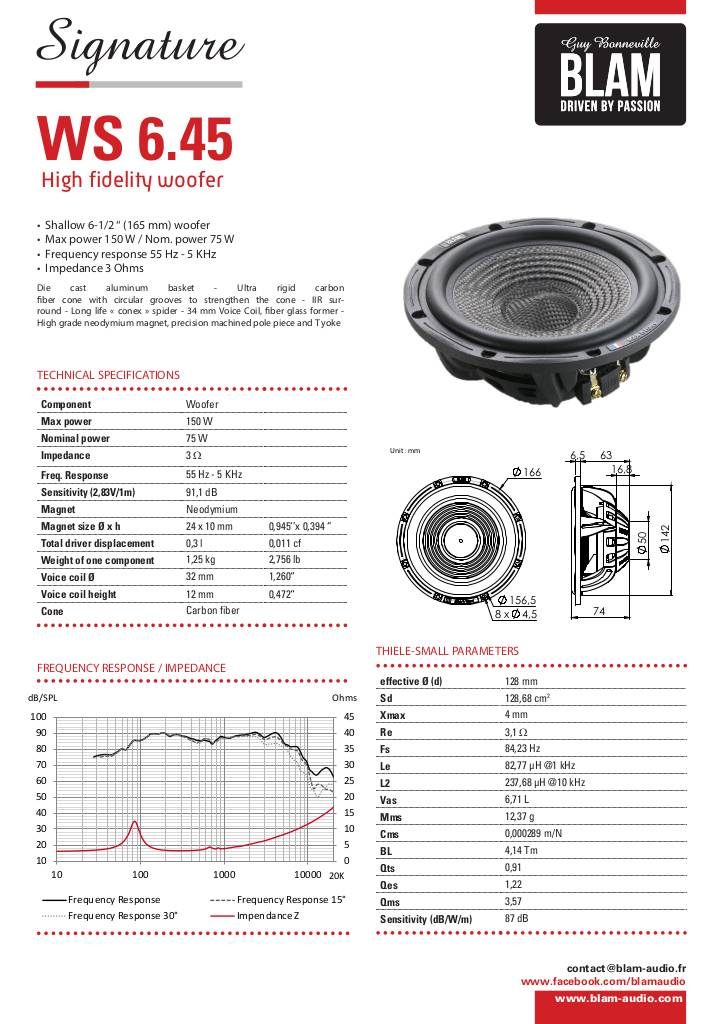

Scheda tecnica woofer

n-20190812161654-ws-645-technical-sheet-blam-signature.pdf

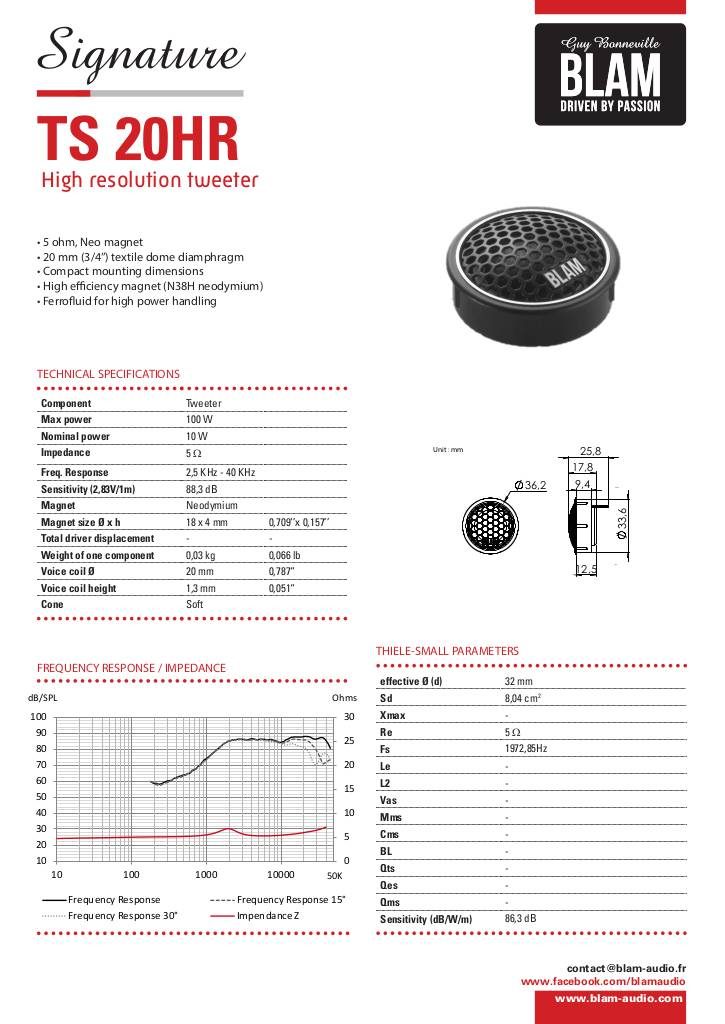

Scheda tecnica tweeter

n-20190812161654-ts-20hr-technical-sheet-blam-signature.pdf

BLAM S 165N45 technical specifications of components:

WS 6N45 high fidelity woofer
6.5" (165 mm) woofer
Maximum power 120 W
Rated power 60 W RMS
Frequency response 60 Hz - 7 kHz
Sensitivity 94.3 dB
Impedance 2 Ohm

TS 20 HR tweeter sound quality
20 mm (3/4'') textile dome diaphragm
Frequency response 2.5 kHz - 43 kHz
Sensitivity (2.83 V / 1m) 88.3 dB
Impedance 5 Ohm

Crossover capacitors audiophile
6 dB / octave crossover capacitor
Cap in real metalized polypropylene 4.7uF +/- 5% 250 V
Crossover point: 5 kHz
