S 165.80 Top-of-the-line 2-way component kit

BLAM

Discontinued

Your price:
€ 446,00
Price per single item (VAT included)
Type
2-way separate kit
Woofer Size
165 mm
Tweeter Size
20 millimetri
Sensitivity
94 dB
Woofer Material
Fibra di carbonio
Tweeter Material
Cupola in seta

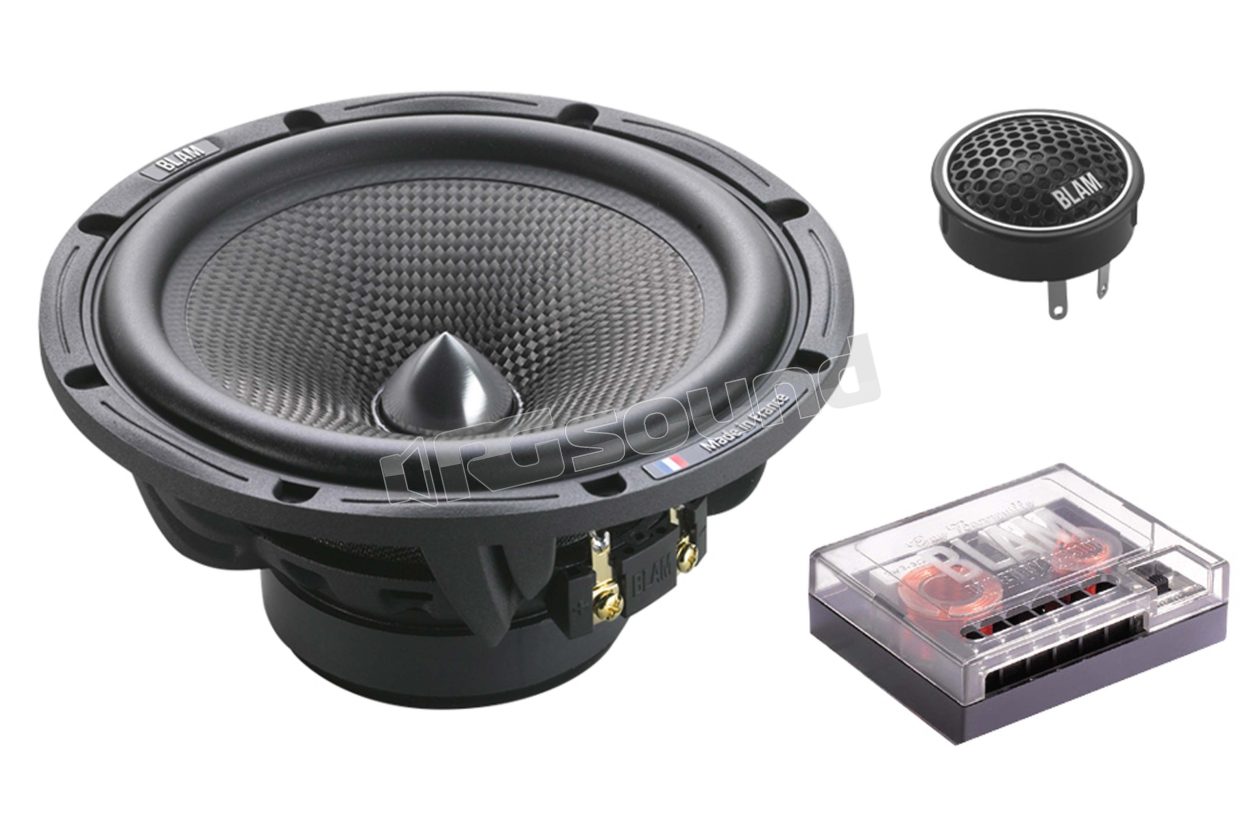

Blam S 165.80 2-way top-of-the-line kit

Blam S 165.80 two-way speaker system sound quality composed of: pair of 165mm woofers, pair of 20mm tweeters with high-resolution dome and pair of external crossovers.

The SIGNATURE series by Blam is born

Signature means "Signature" but also "Distinctive Style" and it is a demanding word. From products called "Signature" specialists expect simply unique implementations and performance, so it is a word to be used with caution. BLAM, strong from considerable success achieved at launch, has decided to invest further in quality to position itself among the very few brands in car audio that can offer ultra-professional speakers.

The first decision was to bring ALL production from China to the newly built artisanal laboratory in France. Careful assembly and tolerances within the decibel. The second decision was to use exclusively European-made components. The third decision was to "cancel" all pre-existing tweeters (a shame, they were exceptional!) to create five new models that would raise the bar even higher. 100% Made in France, 100% artisanal construction, 100% top-tier performance.

Blam S 165.80 is composed of:

Woofer WS 6.80 high sensitivity

  • Aluminum basket
  • Ultra-rigid carbon fiber cone
  • Butyl surround
  • Conex spider
  • 28 mm voice coil and fiberglass former
  • 80 x 15 mm magnet system
  • Gold-plated terminals

Tweeter TS 20 HR high resolution

  • Compact mounting dimensions
  • High-efficiency magnet (N38H neodymium)
  • Ferrofluuid for maximum power

Crossover BFR 01 high quality

  • High-quality metallized polyester caps
  • Low DCR air coils

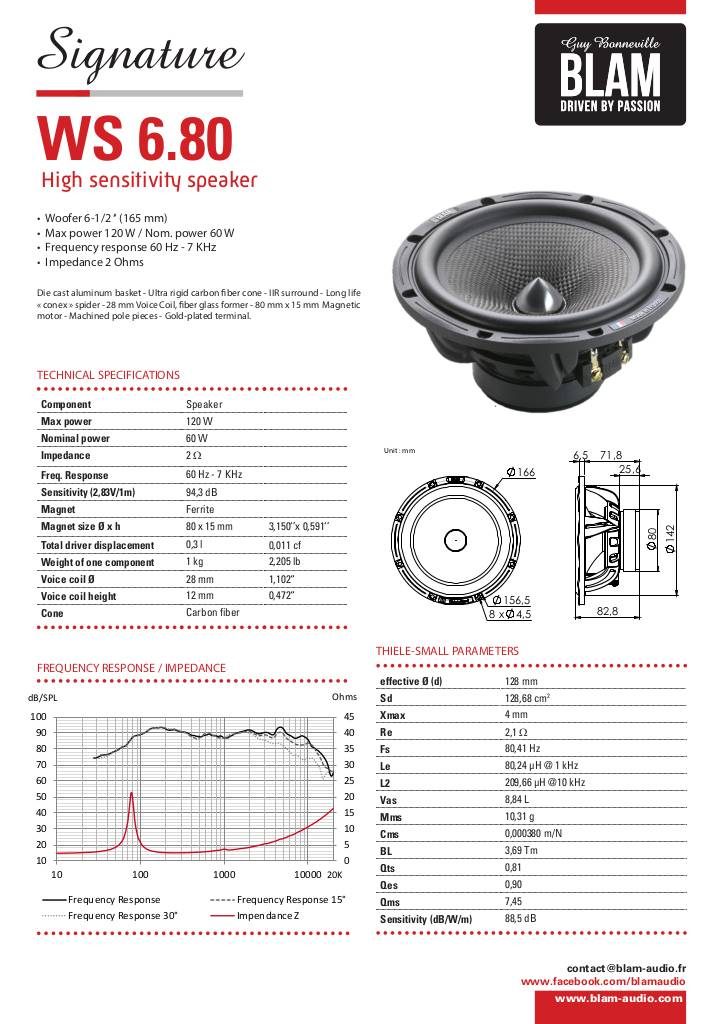

Scheda tecnica woofer

n-20190812162941-ws-680-technical-sheet-blam-signature.pdf

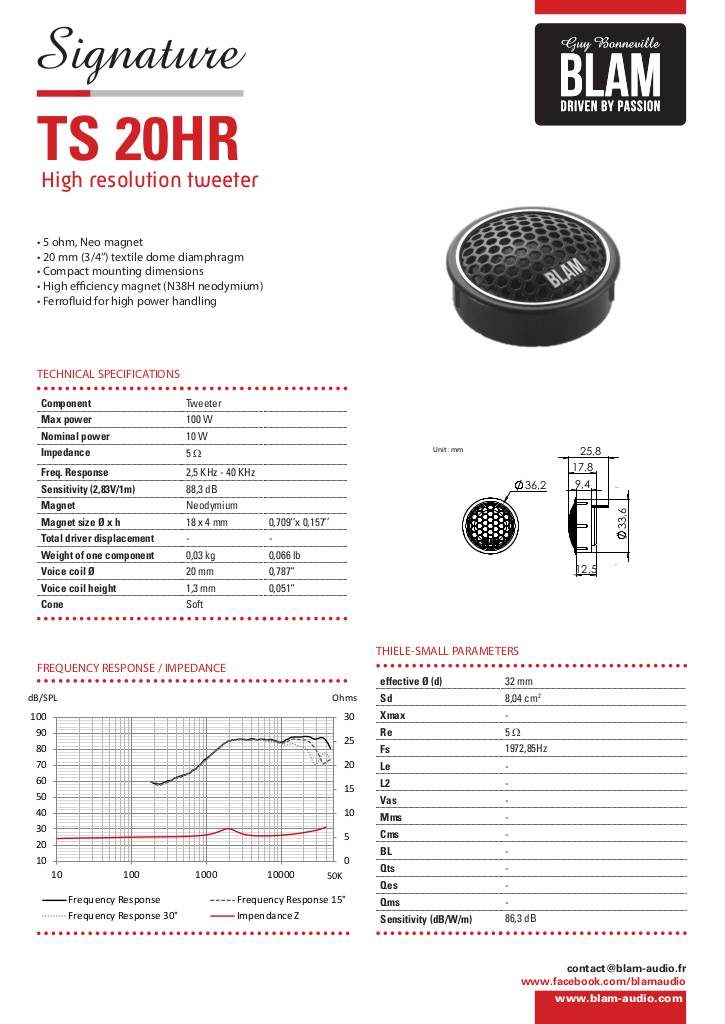

Scheda tecnica tweeter

n-20190812162941-ts-20hr-technical-sheet-blam-signature.pdf

Blam S 165.80 Technical specifications

Woofer WS 6.80

  • Woofer 6.5" (165 mm)
  • Max power 120 W / Nom. power 60 W
  • Frequency response 60 Hz - 7 kHz
  • Sensitivity 94.3 dB
  • Impedance 2 Ohm

Tweeter TS 20 HR

  • 20 mm (3/4'') textile dome diaphragm
  • Frequency response 2.5 kHz - 43 kHz
  • Sensitivity (2.83 V / 1m) 88.3 dB
  • Impedance 5 Ohm

Crossover BFR 01

  • 6/12 dB / octave 2 way crossover
  • Adjustable tweeter level: +3 dB 0 dB or -3 dB
  • Crossover point: 4 kHz
  • High quality metallized polyester caps
