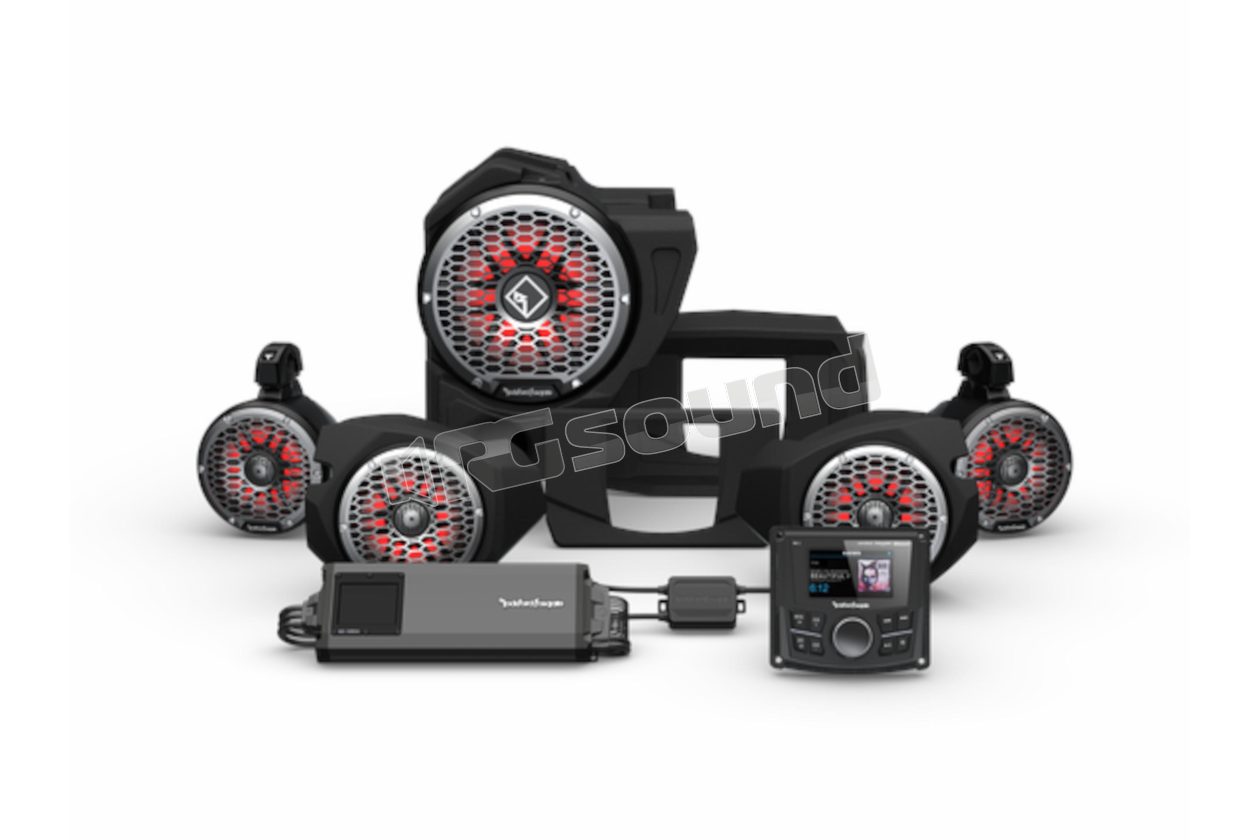

RZR14-STG5 RZR Stage 5 Audio System

Rockford Fosgate
Your price:
€ 2626,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Rockford Fosgate RZR14-STG5 RZR Stage 5 Audio System

The Gen-3 Stage 5 lets you tackle the dunes and trails and be the center of attention. The system allows you to add front and rear Color Optix™ speakers and a subwoofer on select RZR models. The kit is equipped with a PMX-3 digital multimedia receiver with camera video input and SiriusXM Ready® for satellite radio, upper/lower dashboard kit (installation location depends on RZR model), front speaker enclosures, 6.5" Color Optix™ M2 speakers, 1,500 watt Element Ready™ amplifier, front subwoofer enclosure, 10" Color Optix™ M2 subwoofer, 4 gauge wiring, 6.5" Color Optix™ M2 moto-cans with wiring and a Color Optix™ controller. The kit comes with all the hardware necessary for mounting and installation, which requires minimal time and tools. Consult our COMPATIBILITY table to verify suitability before purchasing.

RZR14-STG5 Features

  • Plug-and-Play Design: No drilling, no cutting and designed to work right out of the box. Simple installation means less time in the garage and more time riding.
  • Element Ready™: Purpose-built for the off-road environment, Rockford's Element Ready™ products are built to withstand water, dirt, mud and UV rays, ensuring all audio components perform regardless of conditions.
  • RF3 (Rockford Factory Fit & Finish): Designed and engineered to fit and complement your vehicle's factory finishes. These components are built to exact specifications to ensure best-in-class fit and appearance.
  • Connectivity Control: With Bluetooth connectivity and AUX and USB inputs, it's easy to control your music or charge your phone, no matter what trail you're on.
  • Compatibility Table: Before making your purchase, check compatibility with the table below.

Kit composed of:

  • PMX-3: Compact 2.7" AM/FM/WB digital multimedia receiver Sirius XM Ready™
  • RZR14-DK: Upper/lower dashboard kit
  • RZR14-FSE: 6.5" Color Optix™ speakers with front loading
  • MX-RSW16: Additional wiring for rear Color Optix™ speakers
  • RZR14-FWE: 10" Color Optix™ subwoofer enclosure
  • PMX-RGB: Color Optix™ speaker with color controllable via RF Connect mobile app
  • RZR14-K4: 4 AWG amplifier installation kit
  • M2WL-65MB: 6.5" M2 Element Ready™ Color Optix™ Moto-Can speaker - Black
  • M5-1500X5: Element Ready™ 5-channel 1500 Watt amplifier
  • M2-65B: 6.5" M2 Color Optix™ 2-way marine speakers - Black
  • M2D4-10IB: 10" M2 DVC 4Ω Element Ready™ Color Optix™ subwoofer - Black

Rockford Fosgate RZR14-STG5 Technical Specifications

PMX-3

  • AUX input
  • SiriusXM® compatible
  • Speaker outputs
  • Apple®/Android™ compatible
  • Limited functionality on Android. Consult the user manual.
  • USB charging
  • Pandora® Internet Radio
  • FM tuner - Frequency range 87.5 MHz - 107.9 MHz
  • Tuner presets number 18 FM / 12 AM / 6 WB
  • FM tuner sensitivity 8 dB
  • AM tuner frequency range 530 kHz - 1710 kHz
  • AM tuner usable sensitivity 40 dB
  • RCA output voltage 2 V RMS Does not clip at full power

M2-65B

  • Speaker type: 2-way coaxial
  • Midrange size (nominal diameter): 6.5"
  • Rated power (RMS):
  • 150 Watt RMS
  • 600 Watt peak
  • Nominal impedance (Ohm): 4 Ohm
  • Midrange mounting depth: 2.49" (63.2 mm)
  • Tweeter size: 1" (25.4 mm)
  • High-pass crossover: 12 dB/octave
  • Sensitivity (dB @ 1 W/1 m) 91.8
  • Sensitivity (dB @ 2.83 V/1 m) 92
  • Frequency response (Hz) 40 Hz - 24 kHz
  • Mounting accessories Stainless steel
  • Grille/trim ring included
  • Shipping weight 1.23 kg

M5-1500X5

  • Number of channels 5
  • Total power (sum of rated power) 1500 Watt
  • Rated power (continuous RMS power)
    • CTA-2006 guidelines Continuous rated power CTA-2006
    • ≤1.0% THD+N
    • 100 W x 4 + 400 W x 1 @ 4 Ω
    • 100 W x 4 + 600 W x 1 @ 2 Ω
    • N/A x 4 + 600 W x 1 @ 1 Ω
    • 200 W x 2 + N/A x 1 @ 4 Ω in bridged configuration
  • Dynamic power (PVC/PowerCube®)
    • CTA-2006 guidelines Dynamic power rating CTA-2006
    • 125 W x 4 + 400 W x 1 @ 4 Ω
    • 200 W x 4 + 700 W x 1 @ 2 Ω
    • N/A x 4 + 700 W x 1 @ 1 Ω
    • 400 W x 2 + N/A x 1 @ 4 Ω in bridged configuration
  • Bridgeable
  • Frequency response 10 Hz - 50 kHz
  • Input sensitivity 150 mVrms - 12 Vrms
  • Circuit topology Class Class AD (front/rear channels)
  • Class BD (subwoofer channel)
  • Efficiency (average) >75%
  • Total harmonic distortion (THD+noise) <0.2% THD+N @ 1 Watt
  • Signal input Low level: 2 RCA
  • High level: 4-pin Molex
  • Tone controls
    • Front/rear: 0-14dB @ 12.5kHz
    • Front/rear: 0-18dB @ 45Hz
    • Sub: 0-18 dB @ 45 Hz
  • Crossover controls
    • High-pass: 50 Hz - 250 Hz @ 12 dB/octave Butterworth
    • Low-pass: 50 Hz - 250 Hz @ 12 dB/octave Butterworth
    • Infrasonic: 30 Hz @ 12 dB/octave Butterworth
  • Visual indicators
    • Power: Blue
    • Protection: Red
    • Input clip: Red
    • Output clip: Blue/Red
  • Power cable section 4 AWG
  • Power input connector Compression terminal block
  • Speaker cable section 16 AWG
  • Speaker output connector 4-pin Molex
  • Cooling Convection
  • Heat sink Extruded aluminum
  • Operating voltage 9 - 16 V DC
  • Recommended fuse (not included) 80 A MAXI
  • Average current draw (13.8 V music) 2 Ω stereo + 1 Ω sub: 48 A
  • Maximum current draw (13.8 V sine wave) 2 Ω stereo + 1 Ω sub: 123 A

M2D4-10IB

  • Voice coil type: dual voice coil
  • Size: 10"
  • Nominal impedance (Ohm): switchable between 2 Ohm and 8 Ohm
  • Frequency response: 20 Hz - 750 Hz
  • Rated power (W RMS): 400 Watt RMS
  • 1600 Watt peak
  • Voice coil diameter: 2.0" (50.8 mm)
  • Magnet weight (oz) 55.02 oz. (1.56 kg)
  • Fs (Hz) 43
  • Re (Ohm) 6.6
  • Le (mH) 1.76
  • Sd (cm²) 363
  • Qms 5.67
  • Qes 1.07
  • Qts 0.90
  • Vas 31.5
  • SPL (dB @ 1w/1m) 90.3
  • Xmax (mm) 12.0
  • Woofer displacement 1.74 liters
  • Speaker connector Deutsch™
  • Hole diameter 225.3 mm
  • Mounting depth 112.7 mm
  • Shipping weight 6.26 kg

M2WL-65MB

  • Speaker type: 2-way speaker with integrated enclosure
  • Number of speakers: 2
  • Speaker size: 6.5"
  • LED current draw: 0.25 A
  • Speaker series: M2-65
  • Enclosure type: sealed
  • Enclosure material: high-density ASA
  • Speaker connector: 6-pin Deutsch™/Amphenol™
  • Frequency response (Hz): 40 Hz - 24 kHz
  • Nominal impedance (Ohm) 4 Ω
  • Rated power (RMS)
    • 150 Watt (RMS)
    • 600 Watt (PEAK)
€ 2626,90 Price incl. VAT
