RTX658

MTX audio

Discontinued

Your price:
€ 39,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
165 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
136 - 6.500 Hertz
Sensitivity
94 dB
Impedance
8 Ohm
Installation Depth
6,7 mm

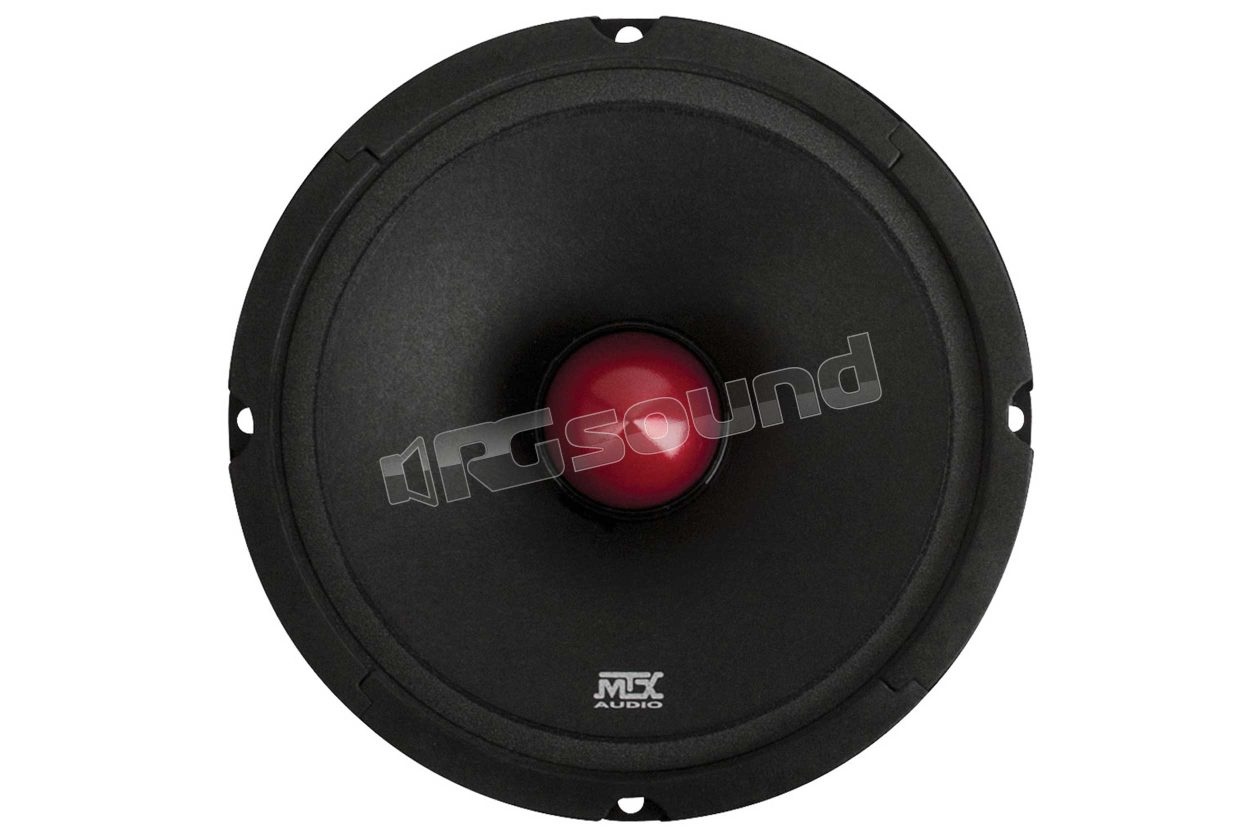

MTX Audio RTX658 165 mm high-efficiency midrange, 8 ohm impedance, THUNDER Extreme Series

The RTX658 is a 16.5 cm (6.5") driver designed to specifically produce the midrange frequencies that complete the bass frequency range that the subwoofer cannot reach. The RTX658 features a highly efficient paper cone and a large magnet connected to a stamped steel basket. The 100W RMS power ensures good performance with any amplifier power.

Technical SpecificationsRTX658

RMS Power : 100W

Max Power : 200W

Impedance : 8Ω

Frequency response : 136Hz - 6500Hz

Sensitivity : 94.0 dB/2.83v/1m

Midrange mounting depth : 6.7 cm

Fs : 148.7 Hz

Re : 5.97 Ω

Z : 8Ω

Qms : 8.29

Qes : 1.27

Qts : 1.10

Vas : 3.32 L

Mms : 8.58 gr

Cms : 0.133 mm/N

BL : 6.14 N/A

Sd : 132.73 cm2

Vd : 0.004 L

Xmax : 0.295 mm

Suggested x-over point : High pass 500 Hz

Diameter : 16.5 cm (6.5")
