RTX 88S

MTX audio

Discontinued

Your price:
€ 49,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
200 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
82 - 6000 Hertz
Sensitivity
94 dB
Impedance
8 Ohm
Installation Depth
7,5 mm

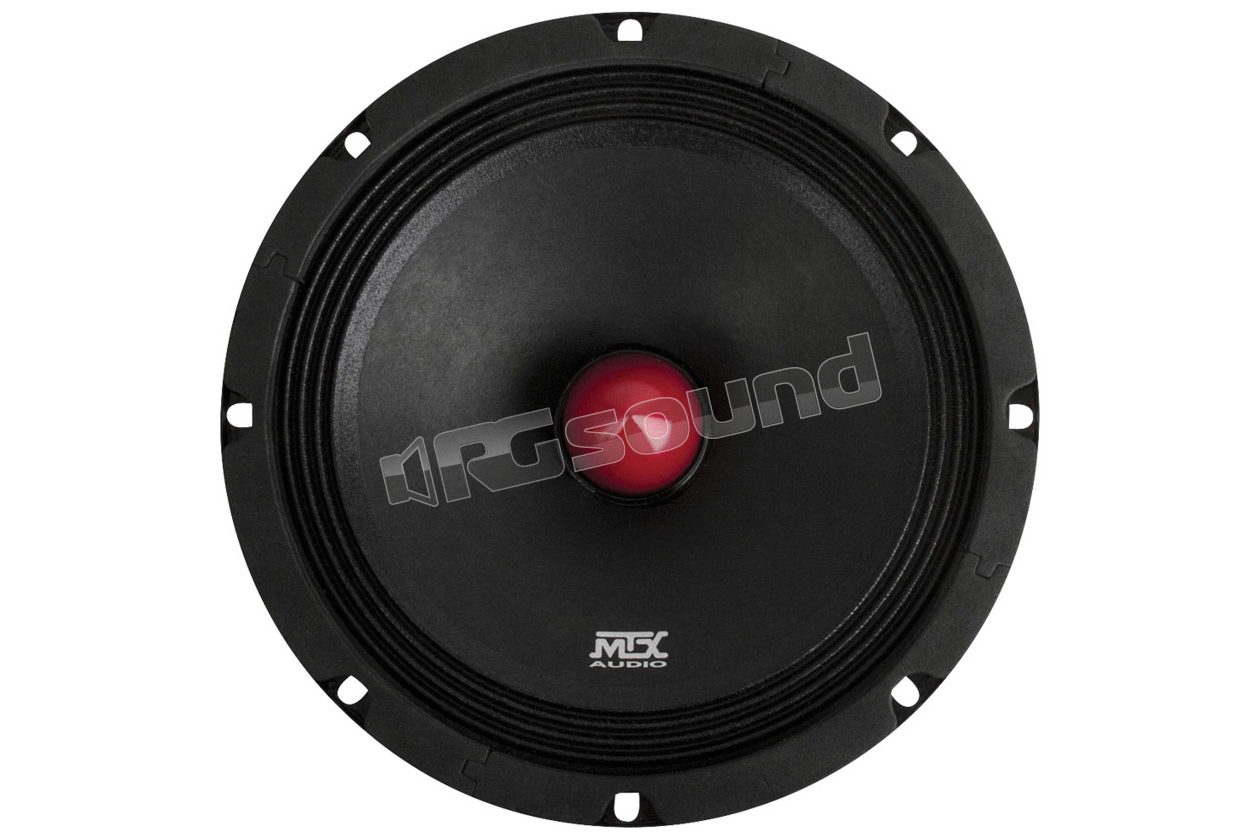

MTX Audio RTX88 midrange 200mm impedance 8 Ohm, Road Thunder Series, designed for SPL performance

The RTX88 is a 20cm (8") driver designed specifically to produce the midbass frequencies that complete the bass frequency range that the subwoofer cannot reach. The RTX88 is equipped with a highly efficient paper cone and a large magnet connected to a stamped steel basket. The 100W RMS power ensures good performance with any amplifier power.

Technical specificationsRTX658

RMS Power : 150W

Max Power : 300W

Impedance : 8Ω

Frequency response : 82Hz - 6000Hz

Sensitivity : 94.0 dB/2.83v/1m

Midrange mounting depth : 7.5cm

Fs : 72.8Hz

Re : 5.42Ω

Z : 8Ω

Qms : 14.37

Qes : 0.74

Qts : 0.70

Vas : 18.6L

Mms : 16.23gr

Cms : 0.295mm/N

BL : 7.36N/A

Sd : 211cm2

Vd : 0.011L

Xmax : 0.533mm

Suggested x-over point : High pass 150Hz

Diameter : 20cm (8")

Discontinued
