RSR 80 RSR 160 system upgrade from 2-way to 3-way

ETON

Discontinued

Your price:
€ 195,00
Price per pair (VAT included)
Type
Midrange
Speaker Size
80 mm
RMS Power
20 Watt
Sensitivity
87 dB
Impedance
4 Ohm
Installation Depth
34 mm
Midrange Cone Material
Fibra di carbonio

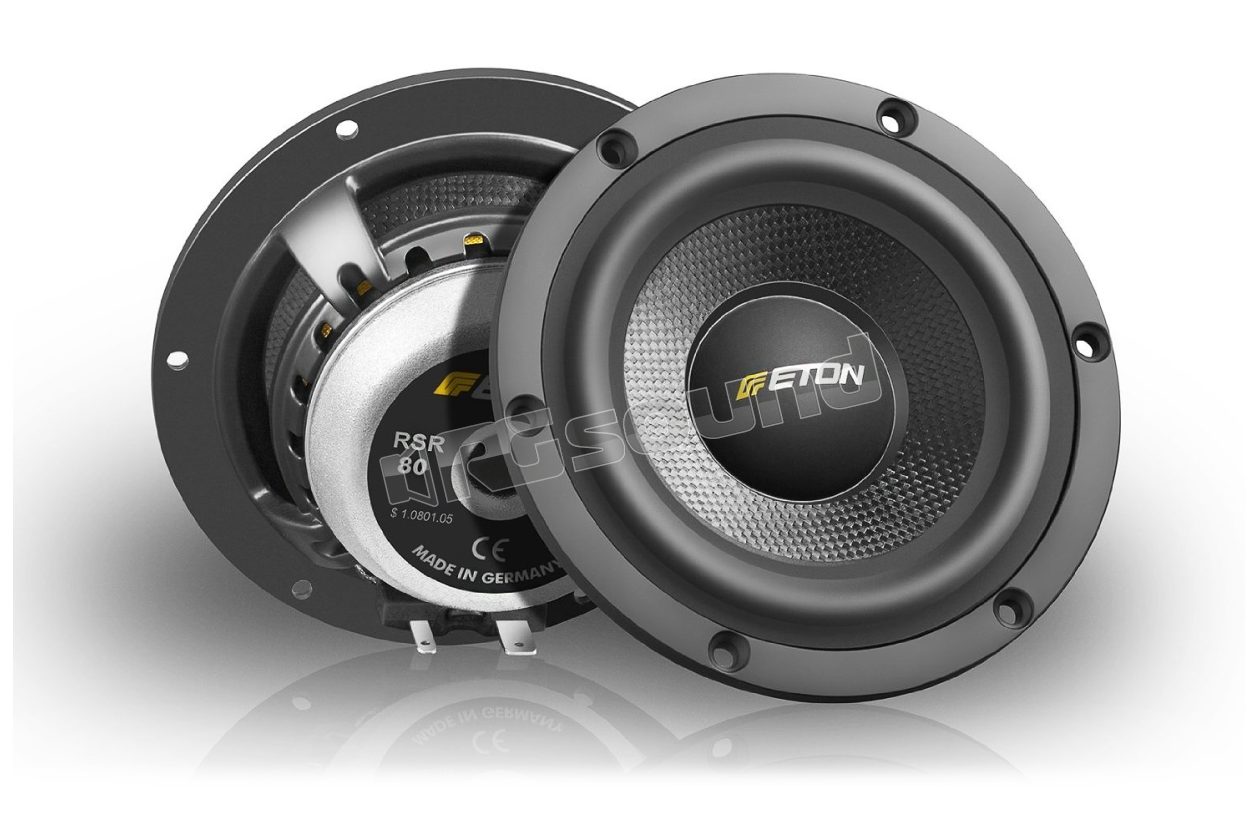

ETON RSR 80 pair of 80mm midrange with Carbon sandwich cone / Rohacell. Compact dimensions for easy installation.

New 80mm RSR 80 midrange perfect to combine with the ETON two-way kit RSR 160 to transform it into a superb 3-way kit. The result is a rich sound, even better for volume and quality. Sounds of individual instruments and voices reproduced even more lively and vivid.

RSR 80 Features

Nominal impedance 4 Ohm
Resonance freq. 1 W 116 Hz
Resonance freq. 130 Hz
Mechanical Q 4.74
Electrical Q 0.71
Total Q 0.60
Voice coil diameter 25 mm
Voice coil former Alluminium
Voice Coil length 7 mm
Voice Coil layers 2
Force factor 3.30 Tm
Mass of speake 0.33 Kg
Characteristic sound 87 dB SPL
Rated power 20 W
Equivalent air vol. 0.7 dm³
Mounting depth 33.9 mm

Schema di collegamento

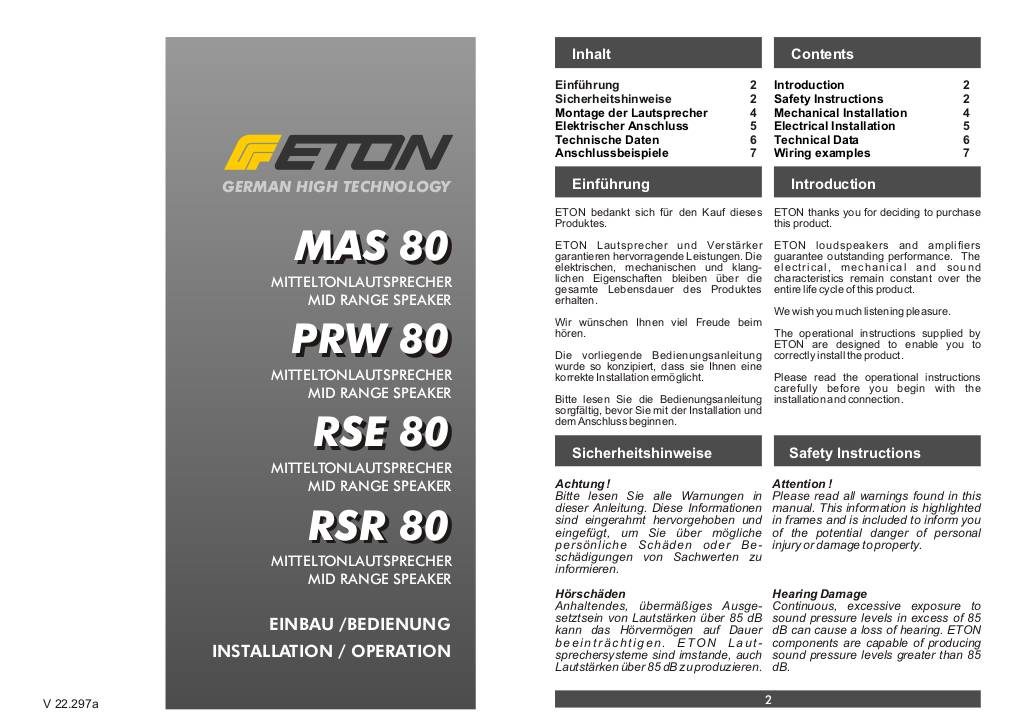

20150610160215-v22-297a-mas-prw-rse-rsr80-web-03.pdf

Pair of 80 mm midrange RSR 80
Discontinued
