RSR 160 High End two-way system expandable to 3-way

ETON

Discontinued

Your price:
€ 389,00
Price per single item (VAT included)
Type
2-way separate kit
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Fibra di carbonio
Tweeter Material
Cupola in seta

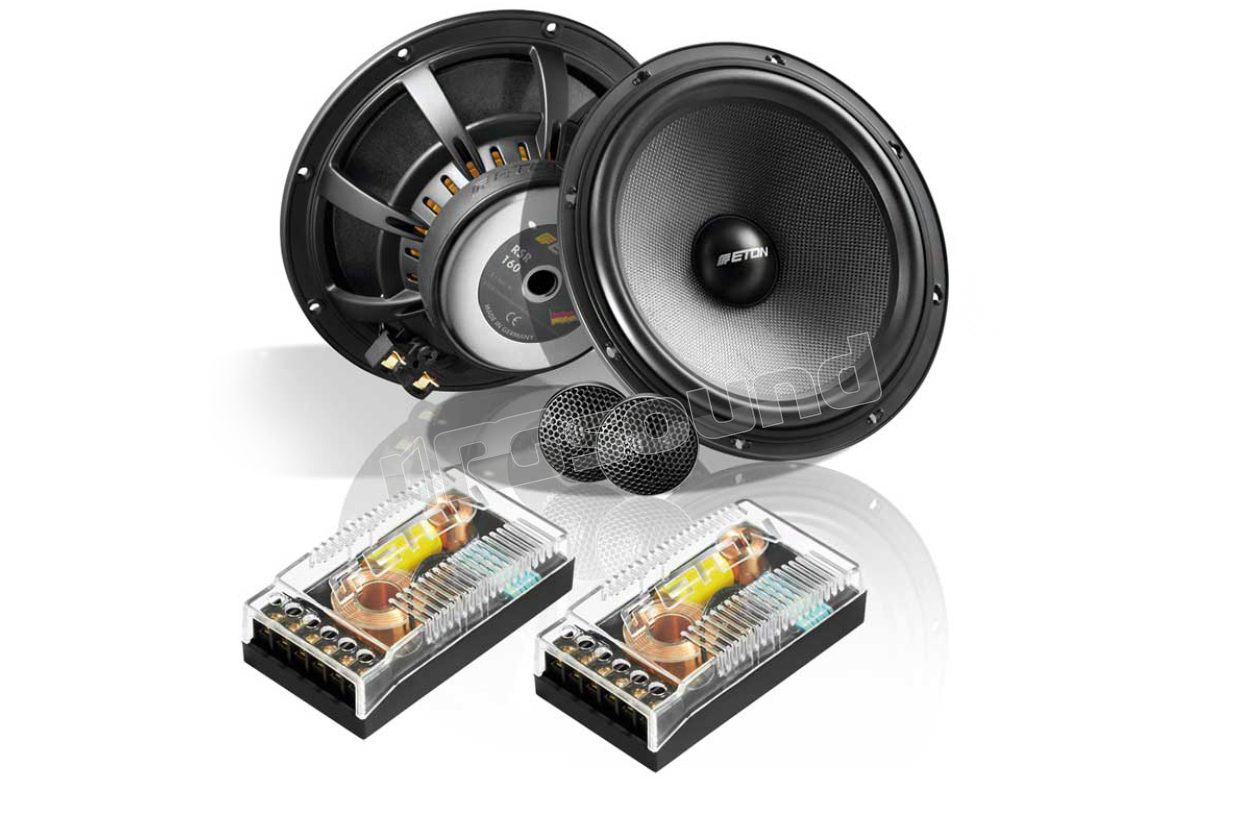

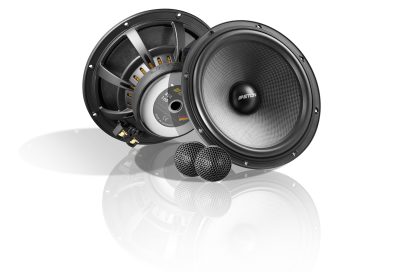

ETON RSR 160 2-way High End system consisting of a pair of 165 mm woofers, 25 mm voice coil and Rohacell-Carbon cone. Pair of tweeters with 25 mm silk dome and high-quality passive crossovers. Expandable to a 3-way system.

RSR 160 Features

2-way Hi-Fi system designed and built in Germany
Woofer cone with Carbon/Rohacell sandwich technology
Woofer voice coil 25 mm.
Tweeter with 25 mm silk-treated dome
High-quality passive crossover
Possibility of conversion to a 3-way system with RSR 80 midrange + MRX 3W crossover (optional)

The RSR 160 kit creates an extraordinary sound atmosphere, the components of this system are characterized through the many innovations brought by the parent company ETON.

Innovative, top of the line, the new RSR 160 system is truly something unique. The woofer cone is made with a sandwich structure, with a membrane made of Rohacell carbon for incredible improvement in bass reproduction.

The silk domes of the tweeters guarantee better performance, dynamic and consistent.

- Nominal power: 50 W

- Music power: 100 W

- Cone material: Carbon-Rohacell Sandwich

- Cone material: tweeter Hand coated silk dome

- Nominal impedance: 4 Ohm

- Crossover frequency: 2500 Hz

- Sensitivity: 1 W/ 1 m 90 dB

- Tweeter outer diameter: 40 mm

- Installation depth: 66.4 mm

- Installing diameter: 142 mm

RSR 160 Features

Technical Data

Value

Unit

Nominal impedance

4

Ω

DC resistance

3.2

Ω

Resonance frequency

1 W

71

Hz

Resonance frequency

TS-parameter-meas.

79

Hz

Suspension compliance

0.30

mm/N

Mechanical Q

4.31

Electrical Q

0.79

Total Q

0.67

Mechanical resistance

1.67

kg/s

Total moving mass (including air mass)

13.3

g

Effective piston area

137

cm2

Voice coil diameter

25

mm

voice coil former

Aluminium

Voice Coil length

11.5

mm

Voice Coil layers

2

Voice Coil inductance

0.37

mH

Flux density

1.1

Tesla

Force factor

4.9

Tm

Height of the gap

6

mm

Diameter of magnet

84

mm

Height of magnet

15

mm

Mass of speaker

1.03

kg

Characteristic sound pressure level 1 W1m

90

dB SPL

Rated power

50

W

Equivalent air volume of suspension

8

dm3

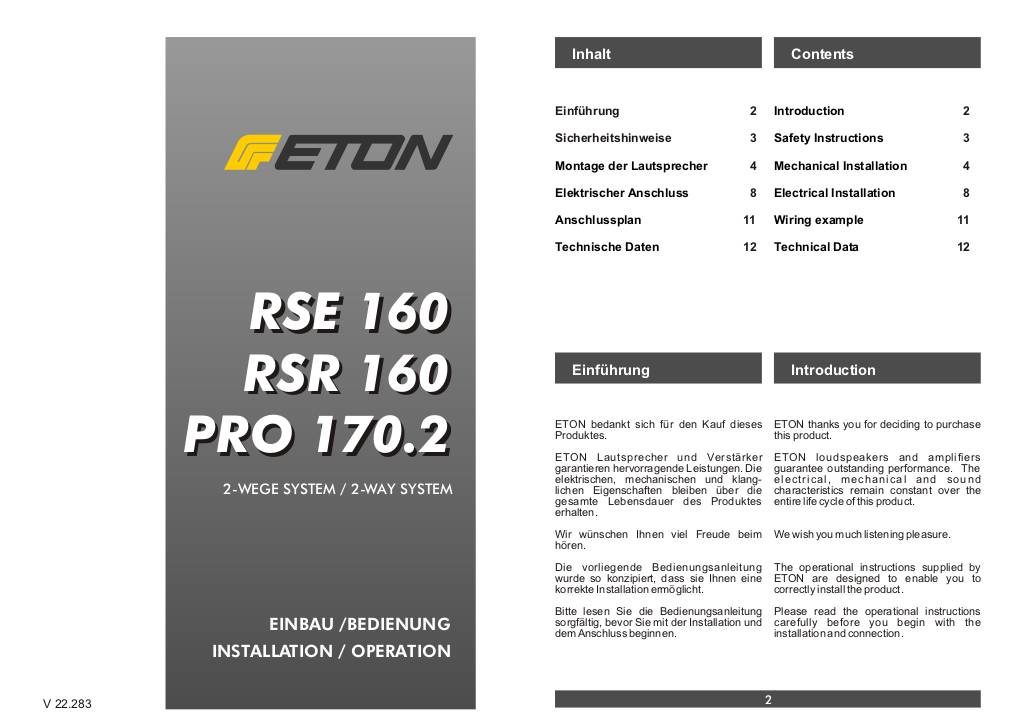

Manuale utente

20150611152004-v22283-rse-rsr160-pro170web-final-01.pdf

Pair of 165 mm woofers Pair of 25 mm tweeters Pair of dedicated crossovers
