RSE 160 High End two-way system expandable to 3-way

ETON

Discontinued

Your price:
€ 425,00
Price per single item (VAT included)
Type
2-way separate kit
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
89 dB
Impedance
3 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Alluminio ceramizzato

ETON RSE 160 2-way High End system consisting of a pair of 165mm woofers with 32mm voice coil and PSP cone. Pair of tweeters with 25 mm aluminum dome treated in Keronite. Can be expanded to a 3-way system.

RSE 160 Features

2-way Hi-End system designed and built in Germany
Woofer cone with PSP sandwich technology
High power handling thanks to the 32 mm voice coil.
Woofer mounting depth of only 59 mm
Tweeter with 25 mm aluminum dome with ceramic coating
Hi End Passive crossover
Possibility of transformation into a 3-way system with RSE 80 Midrange + MRX 3W Crossover (optional)

2-way system that goes above the category standards. The new woofer membrane guarantees greater rigidity and stability. The cast iron basket completes the elegant look of the speaker, which can also boast a mounting depth of only 55 millimeters for easy installation.

25 millimeter tweeter in aluminum with ceramic coating for clear and clean sound.

- Nominal power: 60 W

- Music power: 120 W

- Cone material: Paper-foam sandwich

- Cone material tweeter: Ceramic coated aluminium

- Nominal impedance: 3 Ohm

- Crossover frequency: 2300 Hz

- Sensitivity 1 W/ 1 m: 89 dB

- Tweeter outer diameter: 40 mm

- Installation depth: 59.9 mm

- Installing diameter: 146 mm

RSE 160 Specifications

Technical Data

Wert/Value

Einh./Unit

Nominal impedance

3

W

DC resistance

2.7

W

Resonance frequency

1 W

52

Hz

Resonance frequency

TS-parameter-meas.

62

Hz

Suspension compliance

0.42

mm/N

Mechanical Q

6.79

Electrical Q

0.61

Total Q

0.56

Mechanical resistance

0.95

kg/s

Total moving mass(including air mass)

14.7

g

Effective piston area

137

cm2

Voice coil diameter

32

mm

voice coil former

Glassfibre

Voice Coil length

11

mm

Voice Coil layers

2

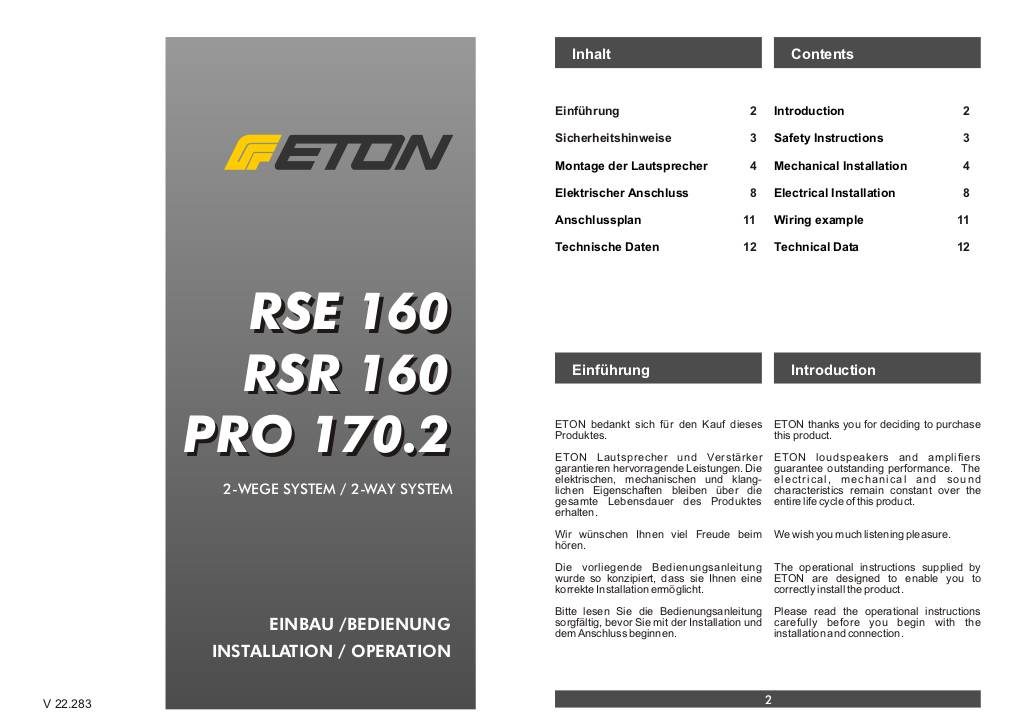

Manuale utente

20150611160129-v22283-rse-rsr160-pro170web-final-01.pdf

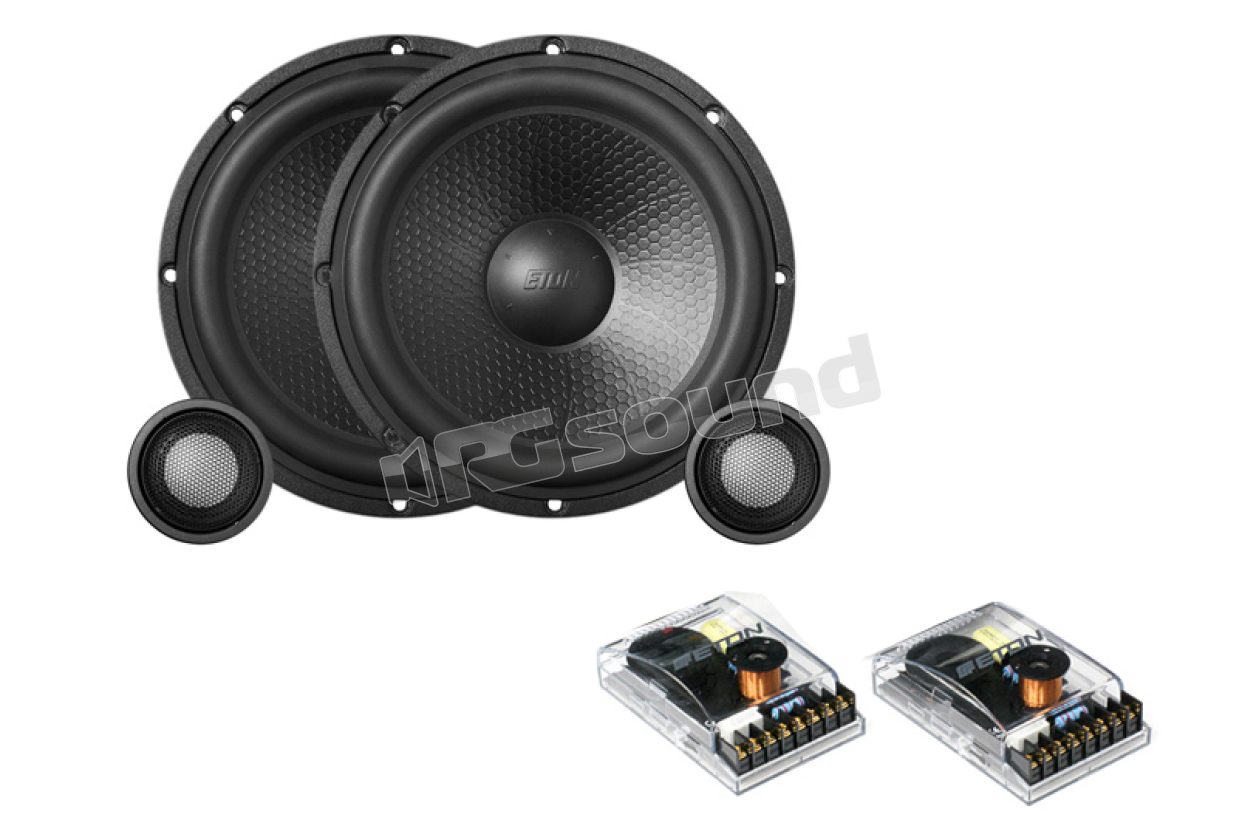

Pair of 165 mm woofers Pair of 25 mm tweeters Pair of dedicated crossovers
