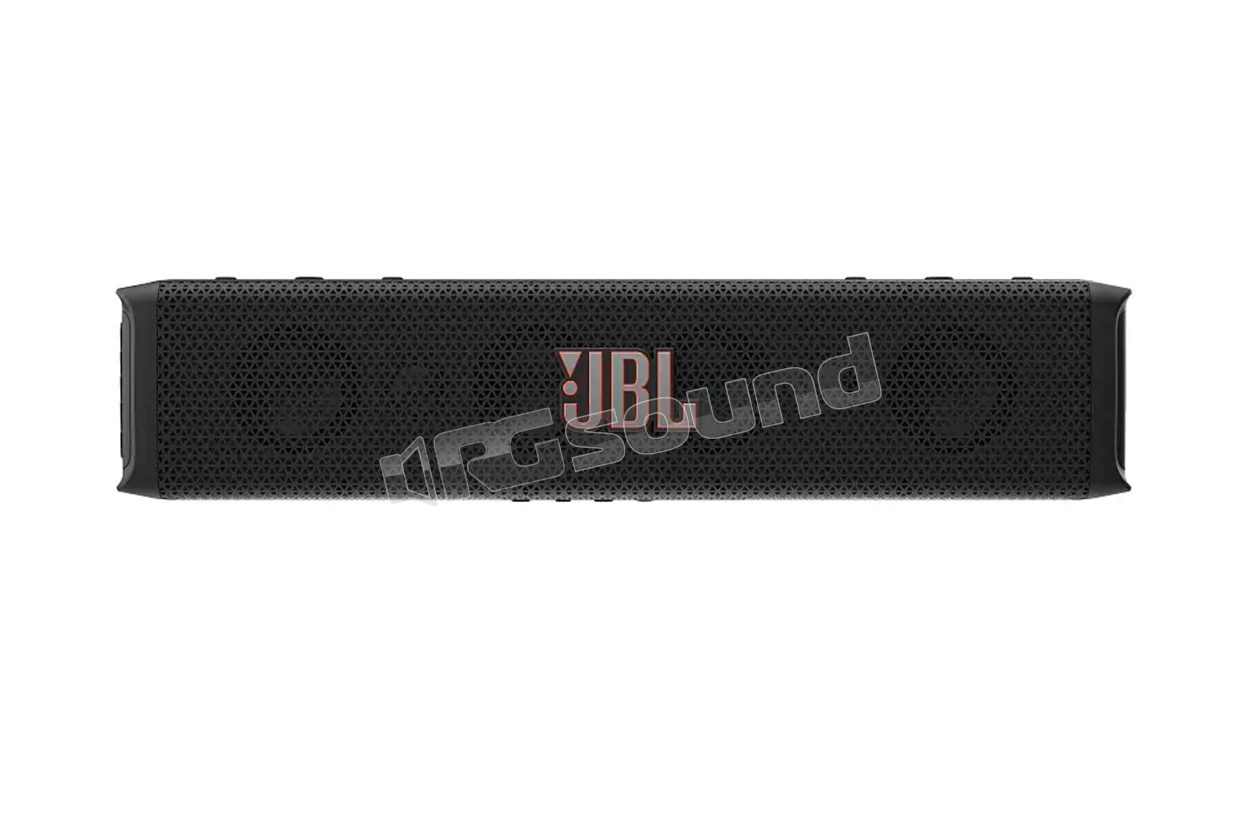

RALLYBAR S Slim Water-Resistant Bluetooth Soundbar (IP66)

JBL

Discontinued

Your price:
€ 839,00
Price per single item (VAT included)

JBL RALLYBAR S is a water-resistant Bluetooth® Soundbar with IP66 protection rating, equipped with 150 Wrms amplifier

An extraordinary sound experience for UTVs, golf carts, boats and other leisure-built vehicles. Each RALLYBAR S can be used alone or connected to multiple RALLYBAR S or RALLYBAR family products (RALLYBAR, RALLYBAR S and RALLYBAR XL) using the built-in transmission mode.

The innovative mounting kit design (patent pending) offers multiple position combinations on the top and rear to meet a variety of installation requirements. Bluetooth® audio players, USB and Aux-in are supported. High-resolution audio is available for the audio source with AUX-IN input.

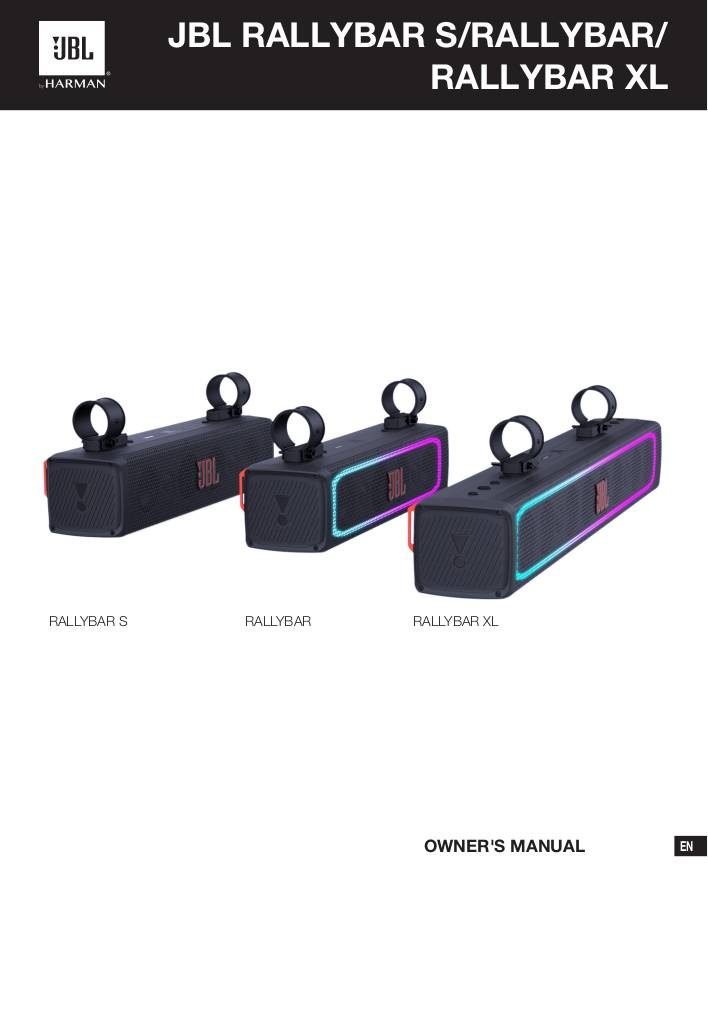

Manuale utente

n-20240322100211-ca-jbl-rally-bar-om-global-sop-v2-online.pdf

JBL RALLYBAR S technical specifications

4x 2.75" (70 mm) woofers, 2x 1" (25 mm) tweeters, 2x Racetrack passive radiators 7.2" (182.8 mm) x 3" (76.2 mm)
Output power 150WRMS, 300W PEAK (IEC60268)
THD at rated RMS power < 1%
Voltage range 9.6 - 16VDC
Current consumption at rest < 0.9A
Maximum current consumption 25A
Frequency response 45Hz-40kHz
Signal-to-noise ratio > 80 dB
Cable type 12AWG
Cable length 12 feet (3.66 m)
Bluetooth version 5.3
Bluetooth Profile A2DP V1.3, AVRCP V1.6
Bluetooth transmitter frequency range 2400 MHz - 2483.5 MHz
Bluetooth transmitter power ≤ 15 dBm (EIRP)
Auxiliary input 2Vrms (0.35Vrms - 2Vrms), 4Vrms (0.7Vrms - 4Vrms), 6Vrms (1.05Vrms - 6Vrms) (3.5 mm connector)
Auxiliary output 2 Vrms (3.5 mm connector)
USB format FAT16, FAT32
Soundbar dimensions (L x D x H) 21-5/32" x 5" x 4-5/8" (537.5 x 126.7 x 118 mm)
Soundbar weight 11.46 pounds (5.2 kg)
Package dimensions (L x H x D) 24" x 9" x 7.6" (611 x 229 x 193 mm)
Gross weight 7.74 kg

Discontinued
