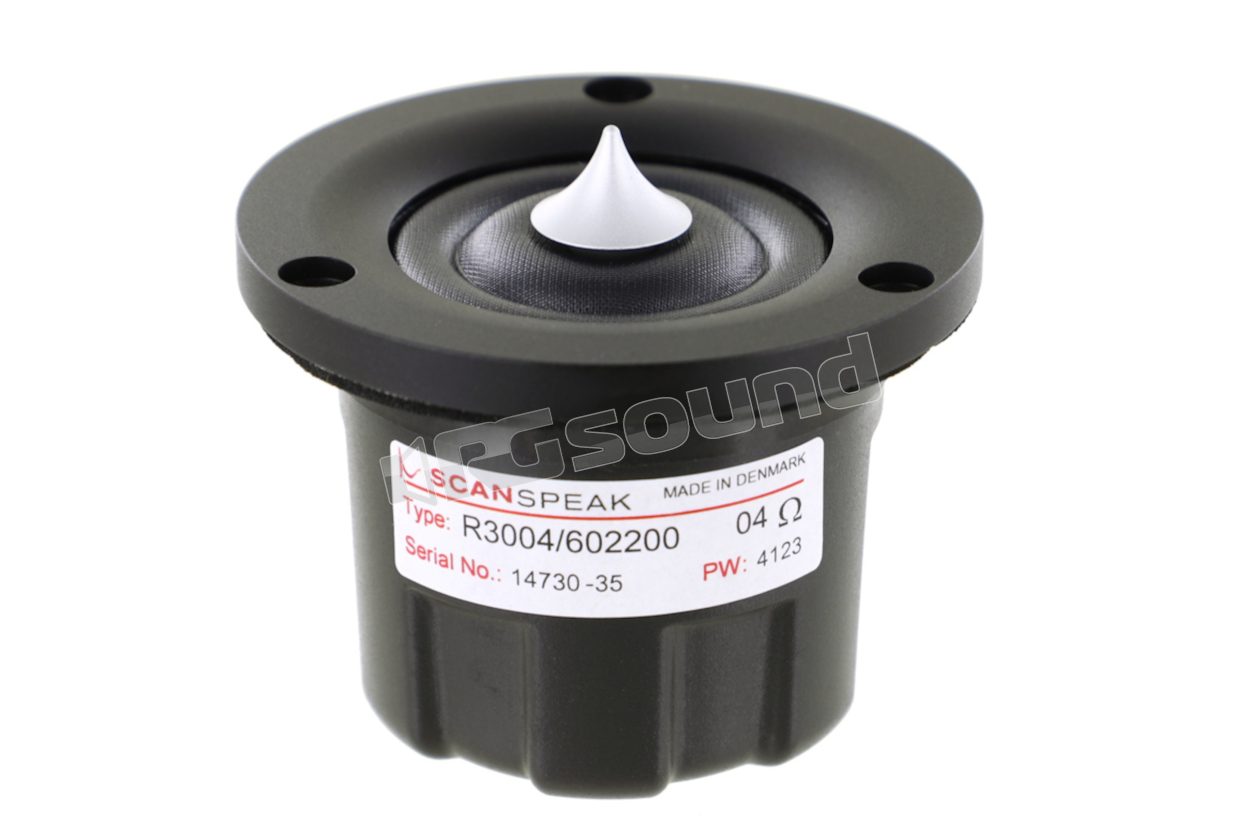

R3004/602200 26 mm ring radiator tweeter with black anodized aluminum faceplate

Scan Speak
Your price:
€ 358,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
26 mm
MAX Power
130 Watt
RMS Power
50 Watt
Frequency Response
2500 - 40000 Hertz
Sensitivity
89,5 dB
Impedance
4 Ohm
Outer Diameter
62 mm
Installation Depth
40 mm

Scan Speak R3004/602200 pair of 26 mm ring dome tweeters in black anodized aluminum

The compact dimensions are one of the key elements of these Illuminator tweeters, which offer a high degree of flexibility in design options.

The reduced dimensions are used without compromising sound quality: these compact tweeters are entirely comparable to the renowned full-size Illuminator and Revelator tweeters, regardless of whether music is played at high or low listening levels.

R3004/602200 Features

  • 1 inch ring dome tweeter
  • Patented phase plug design
  • Patented symmetric pull motor (SD-2)
  • Black anodized machined front
  • Gold plated terminals

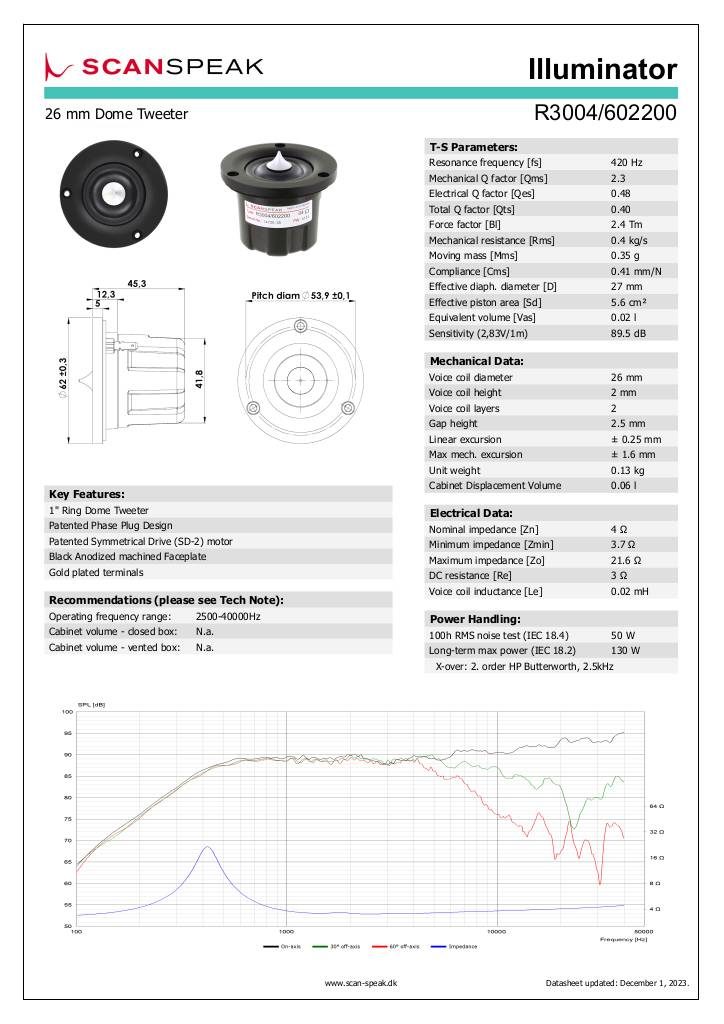

Scheda Tecnica

n-20240702103540-r3004-602200.pdf

Scan Speak R3004/602200 Technical Specifications

  • Resonance frequency [fs] 420 Hz
  • Mechanical Q factor [Qms] 2.3
  • Electrical Q factor [Qes] 0.48
  • Total Q factor [Qts] 0.40
  • Force factor [BI] 2.4 Tm
  • Mechanical resistance [Rms] 0.4 kg/s
  • Moving mass [Mms] 0.35 g
  • Compliance [Cms] 0.41 mm/N
  • Effective diaphragm diameter [D] 27 mm
  • Effective piston area [Sd] 5.6 cm²
  • Equivalent volume [Vas] 0.02 l
  • Sensitivity (2.83V/1m) 89.5 dB

Mechanical Data

  • Voice coil diameter 26 mm
  • Voice coil height 2 mm
  • Voice coil layers 2
  • Gap height 2.5 mm
  • Linear excursion ± 0.25 mm
  • Mechanical maximum excursion ± 1.6 mm
  • Unit weight 0.13 kg
  • Cabinet displacement volume 0.06 l

Electrical Data

  • Nominal impedance [Zn] 4 Ω
  • Minimum impedance [min] 3.7 Ω
  • Maximum impedance [20] 21.6 Ω
  • DC resistance [Re] 3 Ω
  • Voice coil inductance [Le] 0.02 mH

Power Handling

  • RMS noise test 100h (IEC 18.4) 50 W
  • Long-term maximum power (IEC 18.2) 130 W
  • X-over: 2nd order Butterworth HP, 2.5kHz
