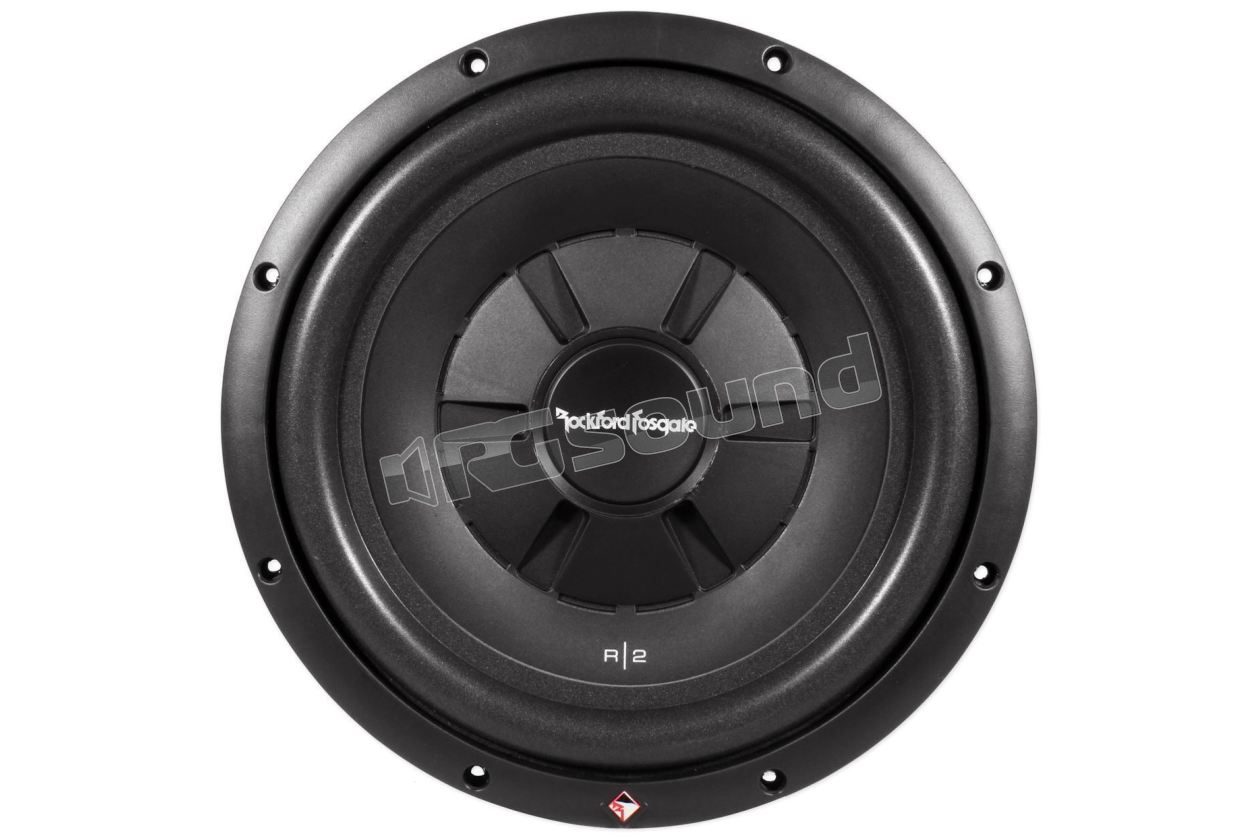

R2SD4-12 30 cm Subwoofer - Prime R2S Series

Rockford Fosgate
Your price:
€ 121,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
43 ÷ 250 Hertz
Sensitivity
81 dB
Impedance
8 Ohm
Installation Depth
92 mm
Woofer Material
Polycone

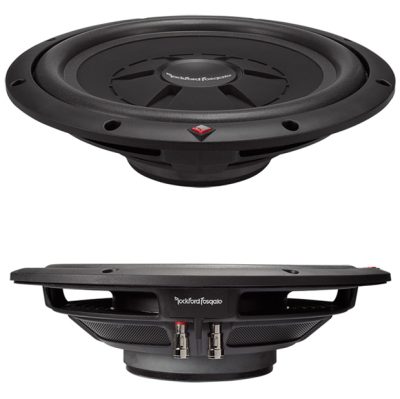

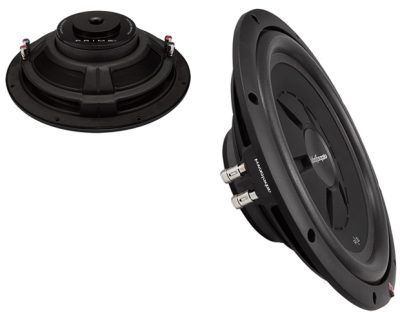

Rockford Fosgate R2SD4-12 12-inch Subwoofer - Prime R2S Series

When you don't have space for bass, the R2SD4-12 subwoofer is able to meet your low-frequency music needs. This 12" subwoofer handles 250 watts RMS and the Dual Voice Coil 4-Ohm design allows various configurations.
  • 12 AWG compression terminals
  • Anodized aluminum voice coil
  • Optimized for sealed enclosures
  • Mica injected polypropylene cone
  • Built-in 16 AWG
  • Integrated PVC surround
  • Surface motor assembly

Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating an amplifier dedicated to low impedance. The technical innovations developed during amplifier creation were also used in the production of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, Rockford established itself worldwide, launching its global expansion.

Today Rockford Fosgate is one of the most recognized brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official reseller for Italy, every Rockford Fosgate product purchased on the RGsound.it website comes with a two-year Italian warranty from the date of purchase.

Scheda tecnica

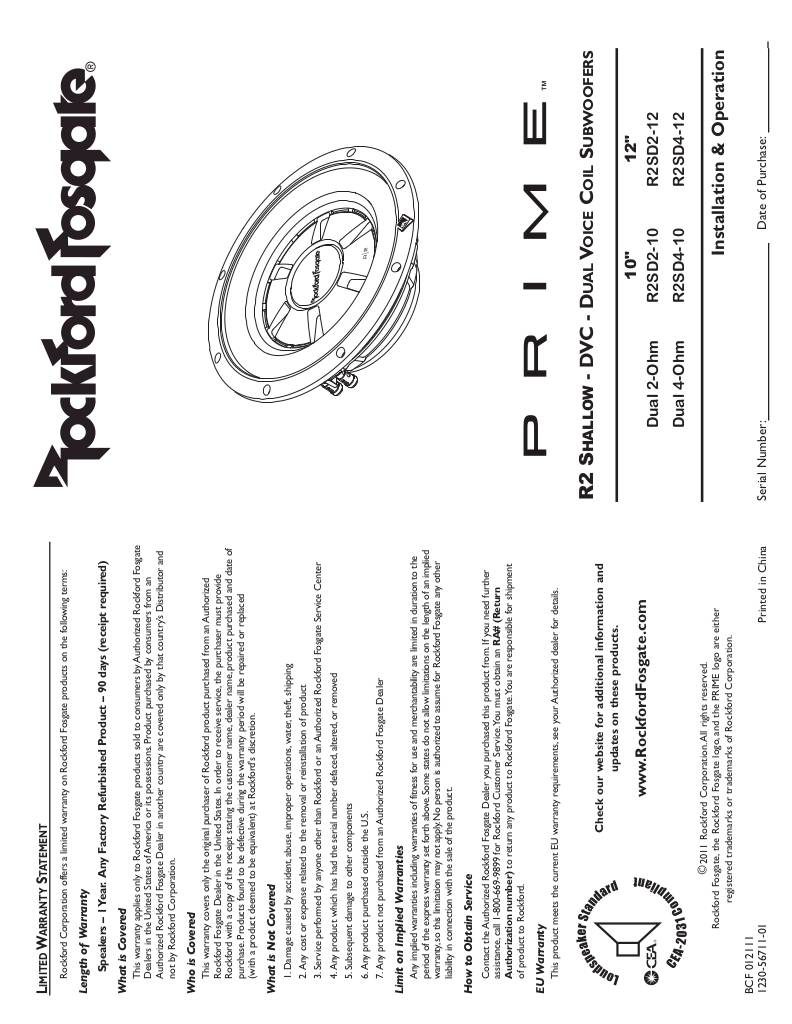

20130417175303-1230-56711-01-primer2shallowsub-man.pdf

Rockford Fosgate R2SD4-12 12-inch Subwoofer - Prime R2S Series

Compliant with CEA-2031 standard
  • Dimensions: 12"
  • Nominal Impedance: Dual 4-Ohm
  • Power Handling (Watts RMS):
  • 250 Watts RMS
  • 500 watts maximum
  • Voice coil diameter: 50 mm
  • Magnet weight (oz): 1.45 kg
  • Speaker connector: Dual 12 AWG compression
  • Fs (Hz): 30.3
  • Re (Ohm): 6.80
  • Le (mH): 4.2
  • Qms: 7.00
  • Qes: 0.72
  • Qts: 0.65
  • Vas (liters): 65.4
  • Sd (cm2): 534.8
  • SPL (dB @ 1w/1m): 85
  • Xmax (mm): 10.0
  • Woofer displacement (in): 1.10 liters
  • Cutout diameter (in): 285 mm
  • Mounting depth (in): 91.5 mm
€ 121,00 Price incl. VAT
