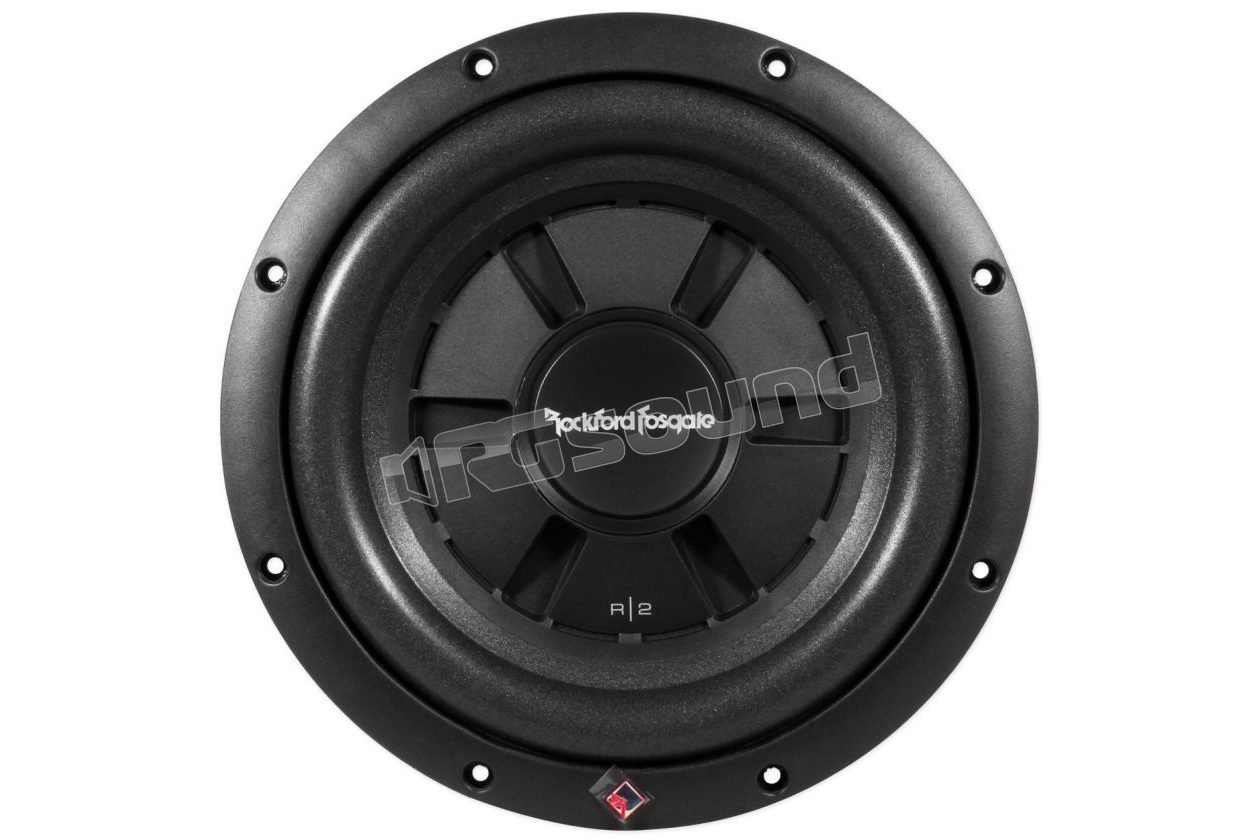

R2SD4-10 25 cm Subwoofer - Prime R2S Series

Rockford Fosgate
Your price:
€ 111,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
45 ÷ 250 Hertz
Sensitivity
82 dB
Impedance
8 Ohm
Installation Depth
87 mm
Woofer Material
Polycone

Rockford Fosgate R2SD4-10 25 cm Subwoofer - Prime R2S Series

When there is no space for bass the R2SD4-10 subwoofer is perfect for satisfying the need for low frequency music.
Ideal for vehicles that have no space for normal subwoofers, they ensure clean and precise bass notes thanks to mica injected polypropylene cones and baskets stamped with spider venting. These shallow subwoofers are optimized for sealed enclosures and handle 200 watts RMS, plus the Dual Voice Coil 4-Ohm design allows various configurations.
  • 12 AWG compression terminals
  • Anodized aluminum voice coil
  • Optimized for sealed enclosures
  • Mica injected polypropylene cone
  • Embedded 16 AWG
  • Integrated PVC surround ring
  • Surface motor group
  • Mica injected polypropylene cones ensure clean and precise bass notes.
Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating an amplifier dedicated to low impedances. The technical innovations developed during the creation of amplifiers were also used in the creation of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, the Rockford company established itself throughout the world, initiating its global expansion.

Today Rockford Fosgate represents one of the best known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official retailer for Italy, every product branded Rockford Fosgate purchased on the RGsound.it website enjoys the Italian two-year warranty from the time of purchase.

Scheda tecnica

20130417175303-1230-56711-01-primer2shallowsub-man.pdf

Rockford Fosgate R2SD4-10 25 cm Subwoofer - Prime R2S Series

Compliant with CEA-2031 standard
  • Size: 10"
  • Nominal Impedance: Dual 4-Ohm
  • Power Handling (Watts RMS):
  • 200 Watts RMS
  • 400 Watts Max
  • Voice Coil Diameter: 50 mm
  • Magnet Weight (oz): 1.28 kg.
  • Speaker Connector: Dual 12 AWG compression
  • Fs (Hz): 39.3
  • Re (Ohms): 6.60
  • Le (mH): 4.2
  • Qms: 7.00
  • Qes: 0.81
  • Qts: 0.73
  • Vas (Liters): 21.7
  • Sd (cm2): 333
  • SPL (dB @ 1w/1m): 82
  • Xmax (mm): 8.0
  • Woofer Displacement (in): 1.05 Liters
  • Cutout Diameter (in): 232 mm
  • Mounting Depth (in): 86.8 mm
€ 111,00 Price incl. VAT
