R2SD2-12 30 cm Subwoofer - Prime R2S Series

Rockford Fosgate
Your price:
€ 121,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
43 ÷ 250 Hertz
Sensitivity
81 dB
Impedance
4 Ohm
Installation Depth
92 mm
Woofer Material
Polycone

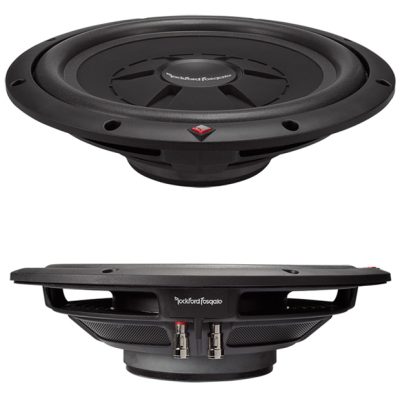

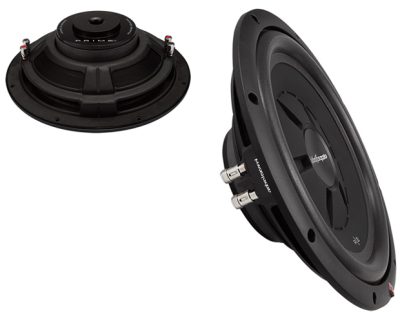

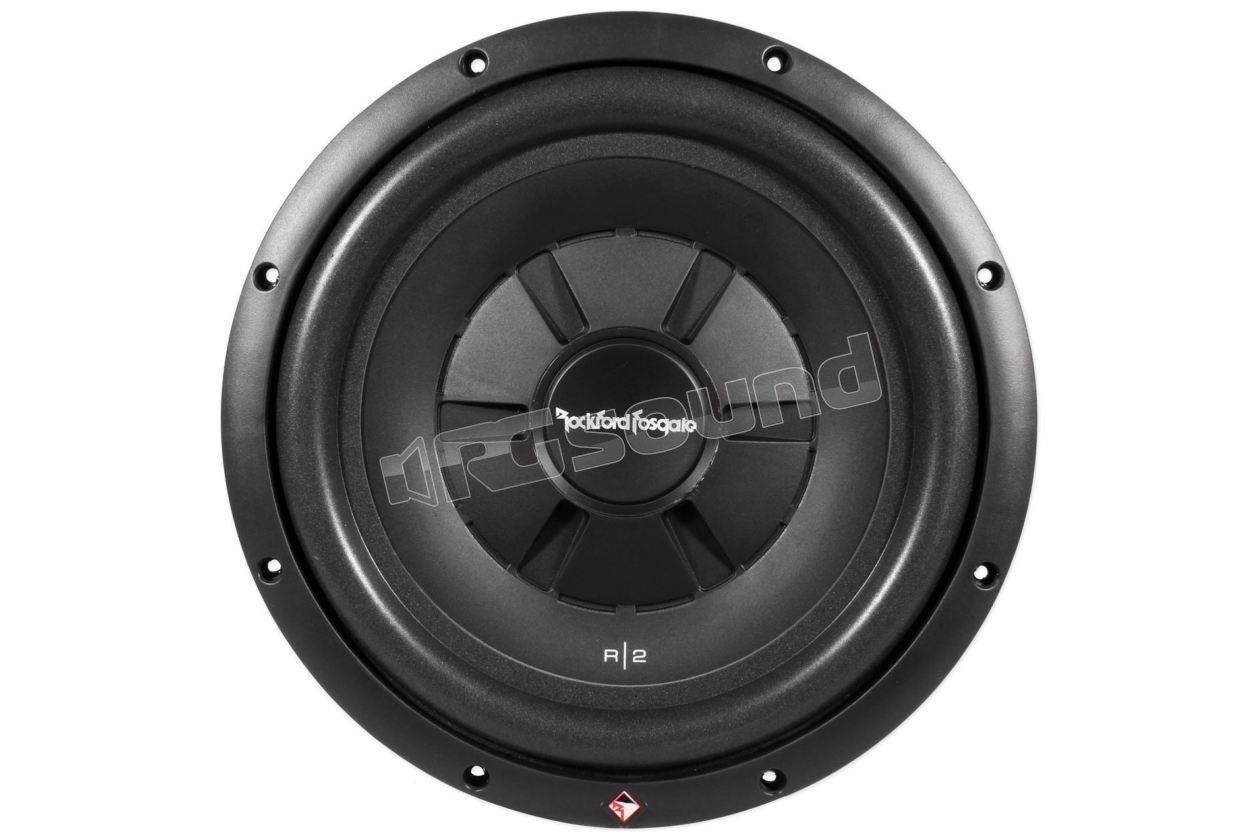

Rockford Fosgate R2SD2-12 30 cm Subwoofer - Prime R2S Series


The R2SD2-12 subwoofer thanks to its raised motor structure reduces the depth of the speaker and can be installed in tight spaces. The mica-injected polypropylene cone ensures clean and precise bass notes and the stamped baskets feature a spider vent typical of traditional models. Optimized for sealed enclosures this 12" subwoofer handles 250 watts RMS and the Dual Voice Coil 2-Ohm design allows various configurations.

Technical Data:
  • 12 AWG compression terminals
  • Anodized aluminum voice coil
  • Optimized for sealed enclosures
  • Mica-injected polypropylene cone
  • Built-in 16 AWG
  • Integrated PVC surround
  • Shallow motor assembly

Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating an amplifier dedicated to low impedances. The technical innovations developed during the creation of amplifiers were also used in the realization of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, the Rockford company has established itself throughout the World giving rise to its global expansion.

Today Rockford Fosgate represents one of the most well-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RG Sound is the official retailer for Italy, every product branded Rockford Fosgate purchased on the RGsound.it website enjoys the Italian warranty of two years from the moment of purchase.

Scheda tecnica

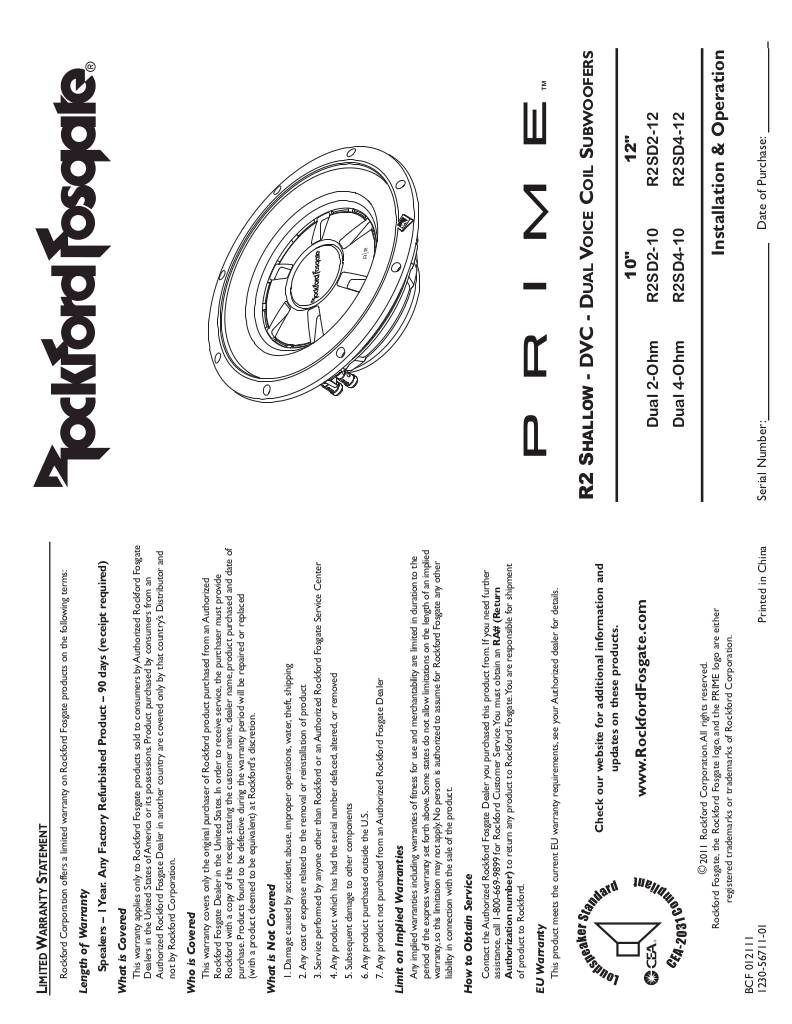

n-20230502165206-20130417175303-1230-56711-01-primer2shallowsub-man.pdf

Rockford Fosgate R2SD2-12

Compliant with CEA-2031 standard
  • Size: 12
  • Nominal impedance: Dual 2-Ohm
  • Power handling (Watts RMS):
  • 250 Watts RMS
  • 500 watts maximum
  • Voice coil diameter: 50 mm
  • Magnet weight (oz): 1.45 kg.
  • Speaker connector: Dual 12 AWG compression
  • Fs (Hz): 29.7
  • Re (Ohm): 3.80
  • Le (mH): 4.2
  • Qms: 9.00
  • Qes: 0.71
  • Qts: 0.66
  • Vas (liters): 65.4
  • Sd (cm2): 534.8
  • SPL (dB @ 1w/1m): 85
  • Xmax (mm): 10.0
  • Woofer displacement (in): 1.10 liters
  • Mounting depth (in): 285 mm
  • Installation depth (in): 91.5 mm
€ 121,00 Price incl. VAT
