R2D4-12 30 cm Subwoofer - Prime R2S Series

Rockford Fosgate
Your price:
€ 102,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
43 ÷ 250 Hertz
Sensitivity
87 dB
Impedance
8 Ohm
Weight
5 Kg
Installation Depth
129 mm
Woofer Material
Polycone

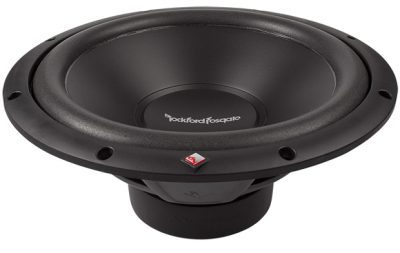

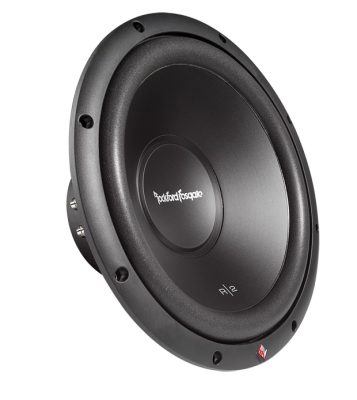

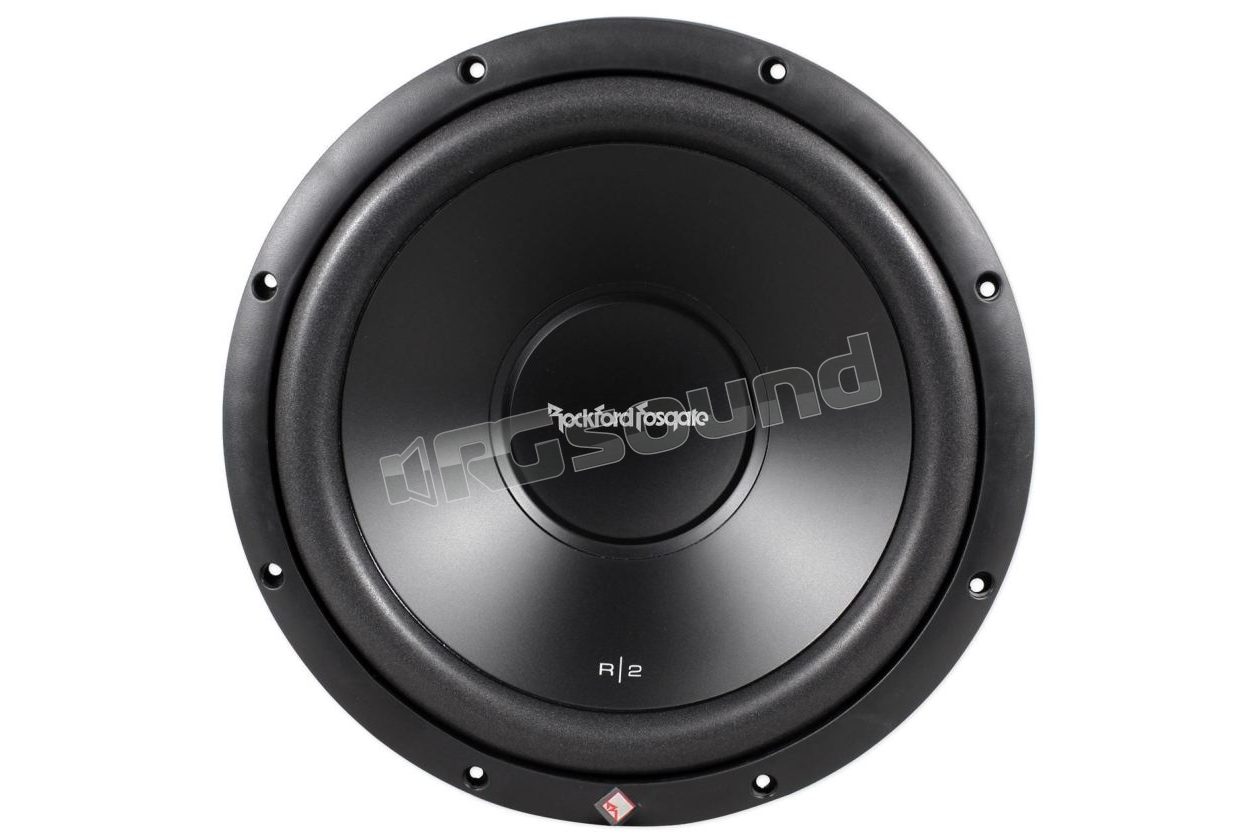

Rockford Fosgate R2D4-12 30 cm Subwoofer - Prime R2S Series

The 12" Prime Series subwoofers are the best solution for quality audio thanks to the mica-injected polypropylene cone and the baskets stamped with spider vents. Furthermore, the dual voice coil offers great installation flexibility. Optimized for sealed and vented enclosures, this 12" subwoofer handles 300 Watts RMS and the Dual Voice Coil 4-Ohm design allows various configurations.

Technical Data:
  • 12 AWG compression terminals
  • Anodized aluminum voice coil
  • Optimized for both sealed and vented enclosures
  • Mica-injected polypropylene cone
  • Integrated PVC surround
  • The Dual Voice Coil provides impressive installation flexibility.
Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating an amplifier dedicated to low impedances. The technical innovations developed during the creation of amplifiers were also used in the production of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, Rockford Fosgate became established worldwide and began its global expansion.

Today, Rockford Fosgate represents one of the most well-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official dealer for Italy, and every product branded Rockford Fosgate purchased on the RGsound.it website enjoys a two-year Italian warranty from the moment of purchase.

Scheda tecnica

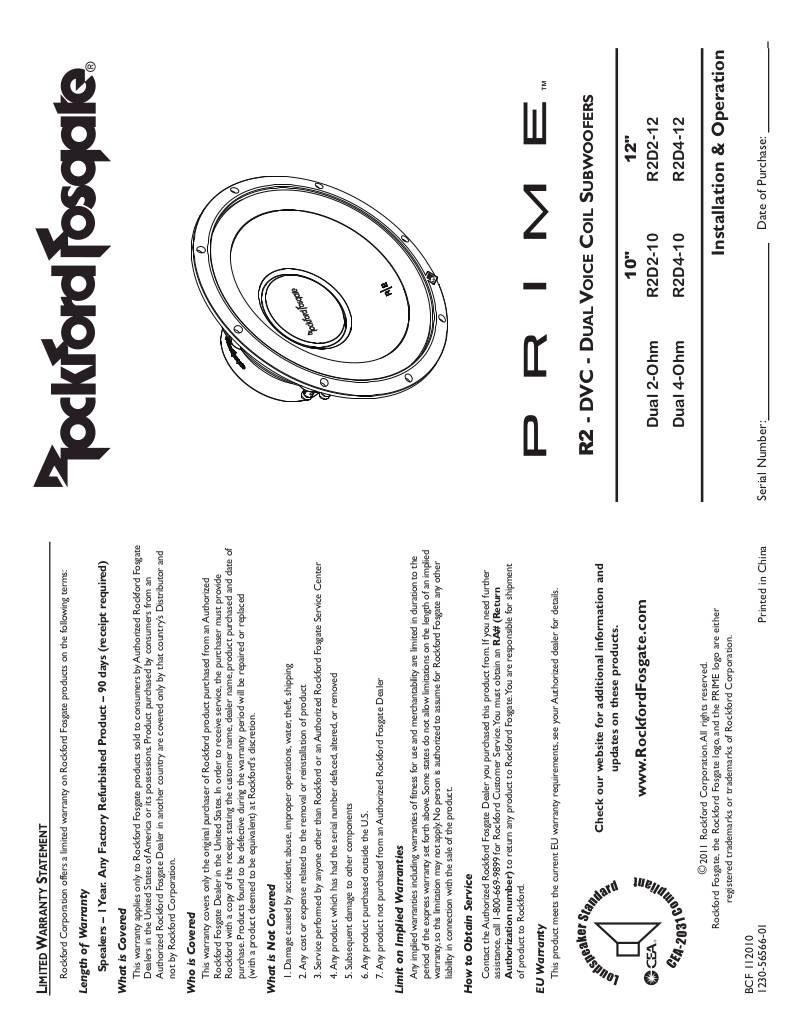

20130417170652-1230-56566-01-primer2sub-man.pdf

Compliant with CEA-2031 standard
Dimensions: 12
Nominal impedance: Dual 4-Ohm
Power handling (Watts RMS):
250 Watts RMS
500 watts maximum
Voice coil diameter: 51 mm
Magnet weight (oz): 1.35 kg
Speaker connector: Dual 12 AWG compression
Fs (Hz): 34.9
Re (Ohm): 7.17
Le (mH): 3.9
Qms: 7.33
Qes: 0.66
Qts: 0.60
Vas (liters): 68.8
Sd (cm2): 539.1
SPL (dB @ 1w/1m): 89
Xmax (mm): 6.5
Woofer displacement (in): 1.3 liters
Mounting hole diameter (in): 285 mm
Mounting depth (in): 128.7 mm
Shipping weight: 4.49 kg
