R2D2-12 30 cm Subwoofer - Prime R2S Series

Rockford Fosgate
Your price:
€ 102,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
43 ÷ 250 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Weight
5 Kg
Installation Depth
129 mm
Woofer Material
Polycone

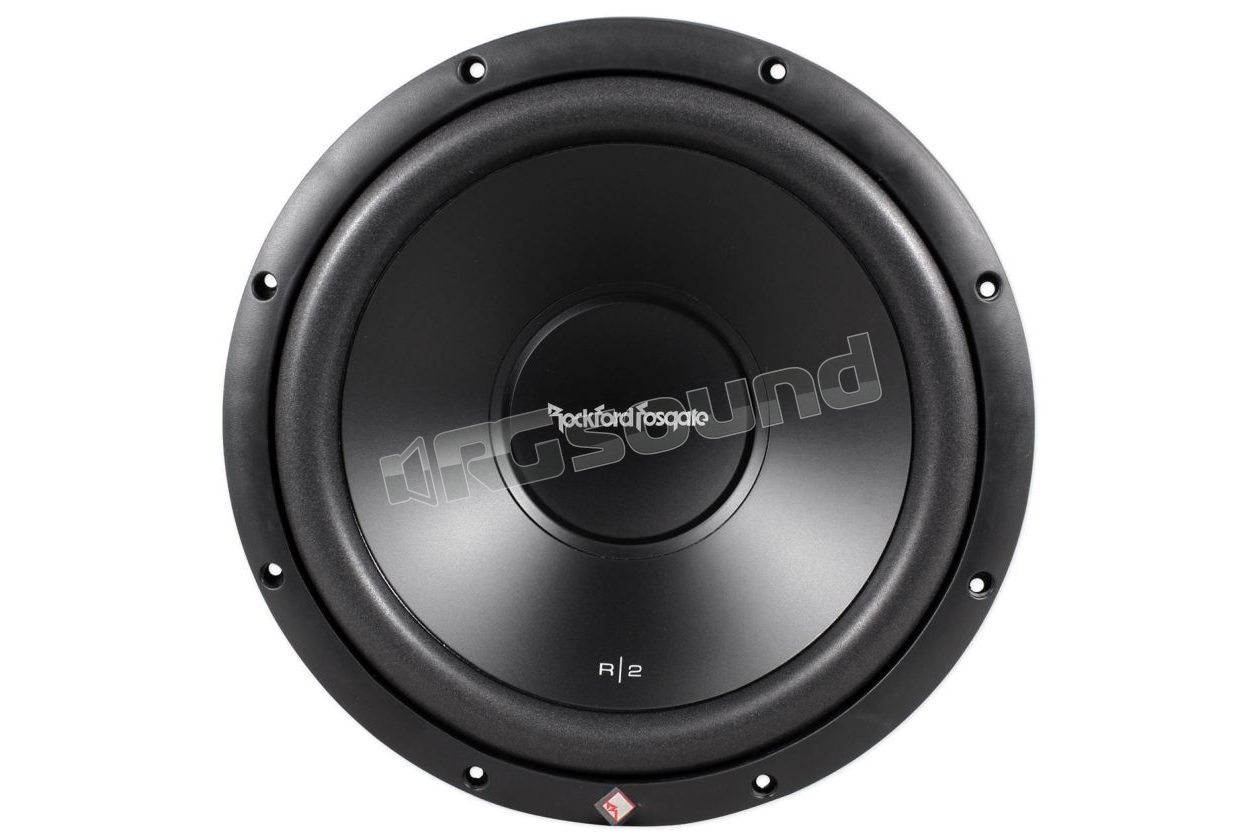

Rockford Fosgate R2D2-12 30 cm Subwoofer - Prime R2S Series

Prime Series 12" subwoofer with dual voice coil, mica-injected polypropylene cone and baskets stamped with spider venting. These R2 subwoofers are optimized for sealed and vented enclosures. R2D2-12 handles 300 Watts RMS and the 2-Ohm Dual Voice Coil design allows various configurations.
Technical Data:
  • 12 AWG compression terminals
  • Anodized aluminum voice coil
  • Optimized for both sealed and vented enclosures
  • Mica-injected polypropylene cone
  • Integrated PVC surround ring
  • Dual Voice Coil provides impressive installation flexibility.
Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating an amplifier dedicated to low impedances. The technical innovations developed during the creation of amplifiers were also used in the realization of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, Rockford established itself worldwide, launching its global expansion.

Today, Rockford Fosgate represents one of the most well-known brands in the Hi-Fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official dealer for Italy, every Rockford Fosgate product purchased on the RGsound.it website enjoys the Italian warranty of two years from the date of purchase.

Scheda tecnica

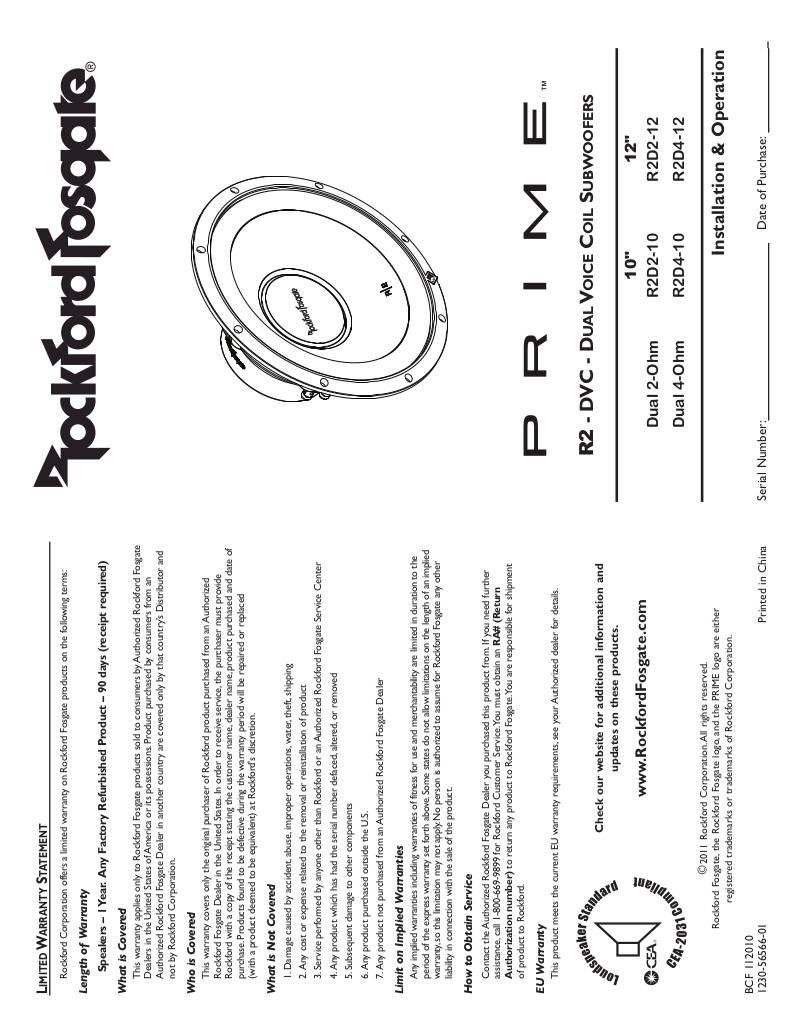

20130417170652-1230-56566-01-primer2sub-man.pdf

Rockford Fosgate R2D2-12


Compliant with CEA-2031 standard
  • Size: 12
  • Nominal impedance: Dual 2-Ohm
  • Power handling (Watts RMS):
    • 250 Watts RMS
    • 500 watts maximum
  • Voice coil diameter: 51 mm
  • Magnet weight: 1.35 kg
  • Speaker connector: Dual 12 AWG compression
  • Fs (Hz): 34.6
  • Re (Ohm): 3.80
  • Le (mH): 3.9
  • Qms: 8.29
  • Qes: 0.62
  • Qts: 0.58
  • Vas (liters): 66.4
  • Sd (cm2): 539.1
  • SPL (dB @ 1w/1m): 88.7
  • Xmax (mm): 6.5
  • Woofer displacement (in): 1.3 liters
  • Cut-out diameter (in): 285 mm
  • Mounting depth (in): 128.7 mm
  • Shipping weight: 4.49 kg
€ 102,00 Price incl. VAT
