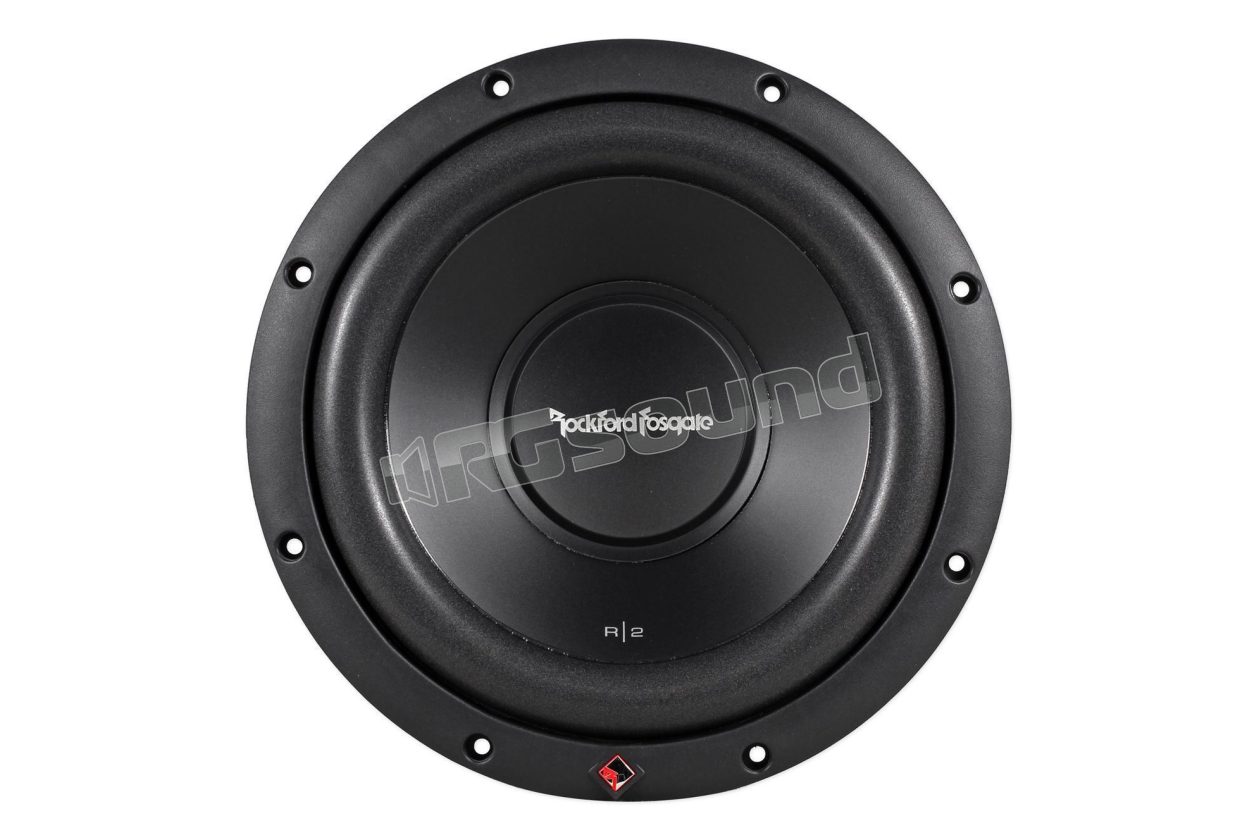

R2D2-10

Rockford Fosgate
Your price:
€ 93,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
45 ÷ 250 Hertz
Sensitivity
89 dB
Impedance
2 + 2 Ohm
Weight
1,2 Kg
Installation Depth
110 mm
Woofer Material
Polycone

Rockford Fosgate R2D2-10 subwoofer Series Prime R2S diameter 10" (25cm), nominal power 250W, maximum power 500W, impedance 4 Ohm.

Main features of the R2D2-10 sub

  • 12 AWG compression terminals
  • Anodized aluminum voice coil
  • Optimized for both sealed and vented enclosures
  • Mica-injected polypropylene cone
  • Integrated PVC surround ring
  • Dual 2 Ohm voice coil

Rockford Fosgate was founded by Jim Fosgate in 1973. Today it represents one of the most well-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official dealer for Italy; every product branded Rockford Fosgate purchased on the RGsound.it website enjoys Italian warranty of two years from the date of purchase.

R2D2-10 Technical Specifications

Size: 10"
Nominal Impedance: Dual 2-Ohm
Power Handling (Watts RMS): 250 Watts RMS
500 Watts Max
Voice Coil Diameter: 2" (51 mm)
Magnet Weight (oz): 43 oz.
(1.22 kg.)
Speaker Connector: Dual 12 AWG compression
Fs (Hz): 34.6
Re (Ohms): 3.84
Le (mH): 3.9
Qms: 6.93
Qes: 0.50
Qts: 0.47
Vas (Liters): 39
Sd (cm2): 339.8
SPL (dB @ 1w/1m): 86.9
Xmax (mm): 6.5
Woofer Displacement (in): 0.039 cu. ft.
(1.1 Liters)
Woofer Displacement (in): 0.101 cu. ft.
(2.85 Liters)
Cutout Diameter (in): 9.125 in.
(232 mm)
Mounting Depth (in): 4.319 in.
(109.7 mm)
Shipping Weight: 8.8 Lbs.
(3.99 kg)

Scheda tecnica

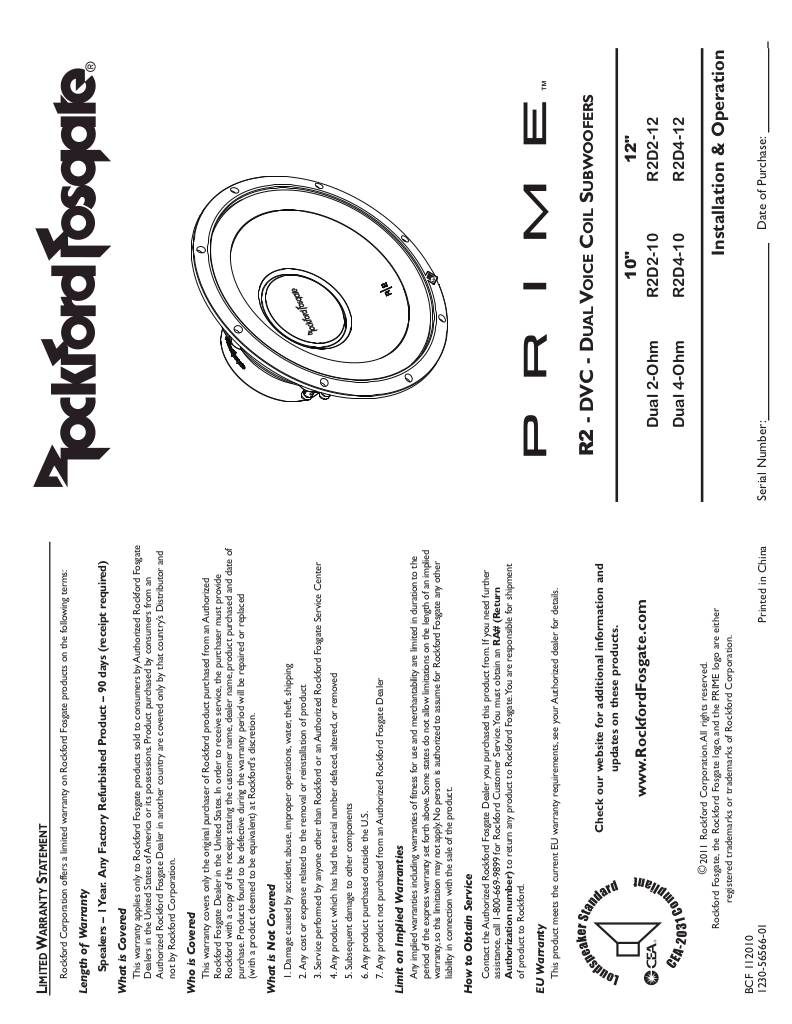

20130417170652-1230-56566-01-primer2sub-man.pdf
€ 93,00 Price incl. VAT
