R2004/602200 20 mm 4ohm ring radiator tweeter, Neo Magnet

Scan Speak
Your price:
€ 337,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
20 mm
MAX Power
120 Watt
RMS Power
50 Watt
Frequency Response
2500 - 40000 Hertz
Sensitivity
87,5 dB
Impedance
4 Ohm
Outer Diameter
62 mm
Installation Depth
40 mm

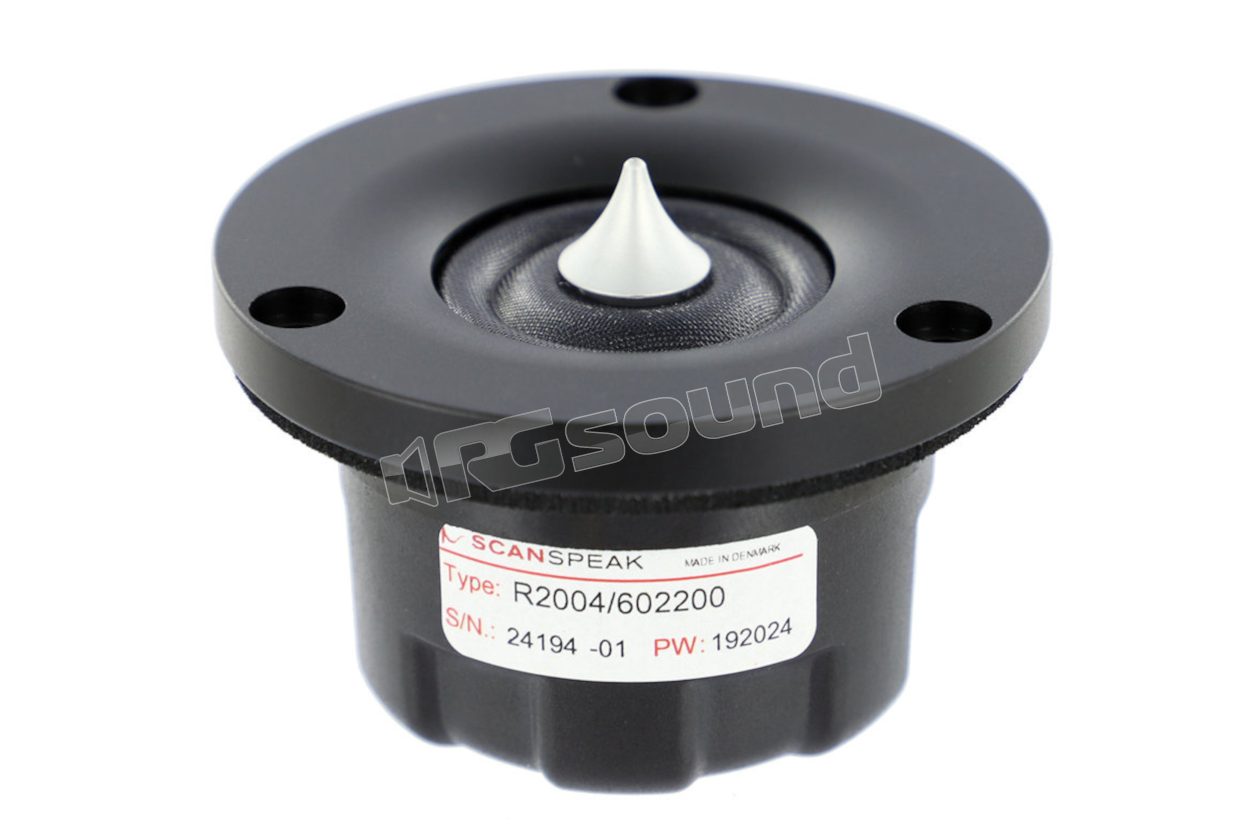

Scan Speak R2004/602200 20 mm Ring Tweeter 4ohm, Neo Magnet

The compact dimensions are one of the key elements of these Illuminator tweeters, which offer a high degree of flexibility in design options.

The reduced dimensions are used without compromising sound quality: these compact tweeters are entirely comparable to the renowned full size Illuminator and Revelator tweeters, regardless of whether the music is played at high or low listening levels.

R2004/602200 Features

  • 3/4" ring dome diaphragm
  • Patented phase plug design
  • Patented symmetrical transmission motor (SD-2)
  • Black anodized machined aluminum front plate
  • Gold plated terminals

Scheda Tecnica

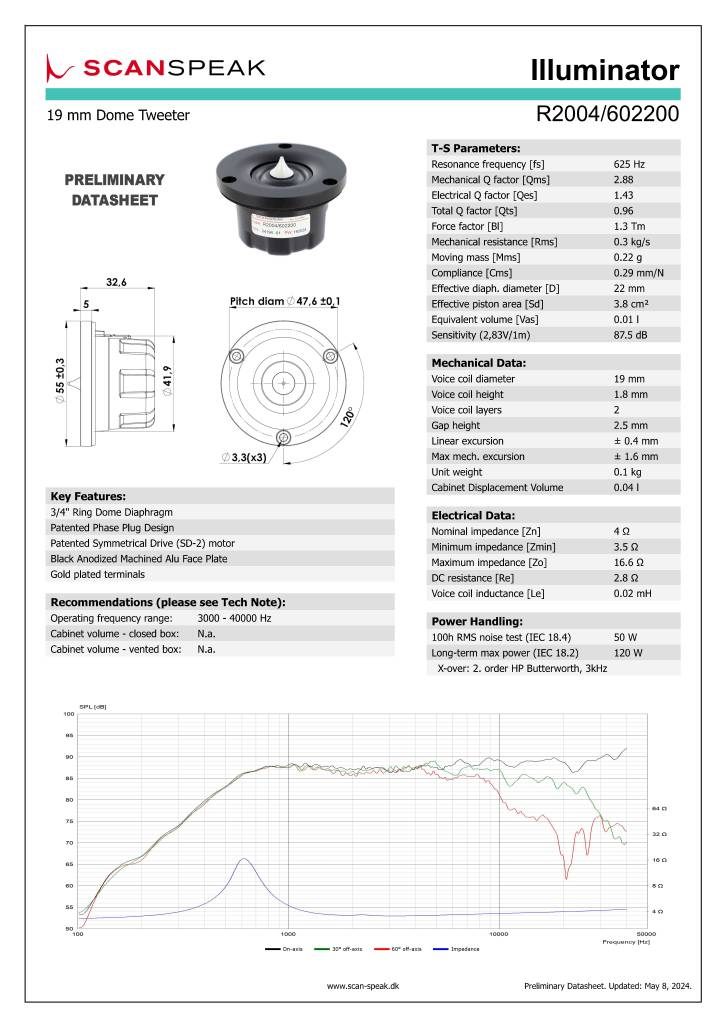

n-20240701175504-r2004-602200.pdf

Scan Speak R2004/602200 Technical Specifications

  • Resonance frequency (fs) 625 Hz
  • Mechanical Q factor [Oms] 2.88
  • Electrical Q factor [Qes] 1.43
  • Total Q factor [Qts] 0.96
  • Force factor [BI] 1.3 Tm
  • Mechanical resistance [Rms] 0.3 kg/s
  • Moving mass [Mms] 0.22 g
  • Compliance [Cms] 0.29 mm/N
  • Effective diaphragm diameter [D] 22 mm
  • Effective piston area (Sd) 3.8 cm²
  • Equivalent volume (Vas) 0.01 l
  • Sensitivity (2.83V/1m) 87.5 dB

Mechanical Data

  • Voice coil diameter 19 mm
  • Voice coil height 1.8 mm
  • Voice coil layers 2
  • Slot height 2.5 mm
  • Linear excursion ±0.4 mm
  • Mechanical excursion max ±1.6 mm
  • Weight 0.1 kg
  • Cabinet Displacement Volume 0.04 l

Electrical Data

  • Nominal impedance [Zn] 4 Ω
  • Minimum impedance [Zmin] 3.5 Ω
  • Maximum impedance [Zo] 16.6 Ω
  • DC resistance [Re] 2.8 Ω
  • Moving coil inductance [Le] 0.02 mh

Power Handling

  • 100h Noise test RMS (IEC 18.4) 50 W
  • Long-term maximum power (IEC 18.2) 120 W
  • X-over: 2nd order HP Butterworth, 3kHz
