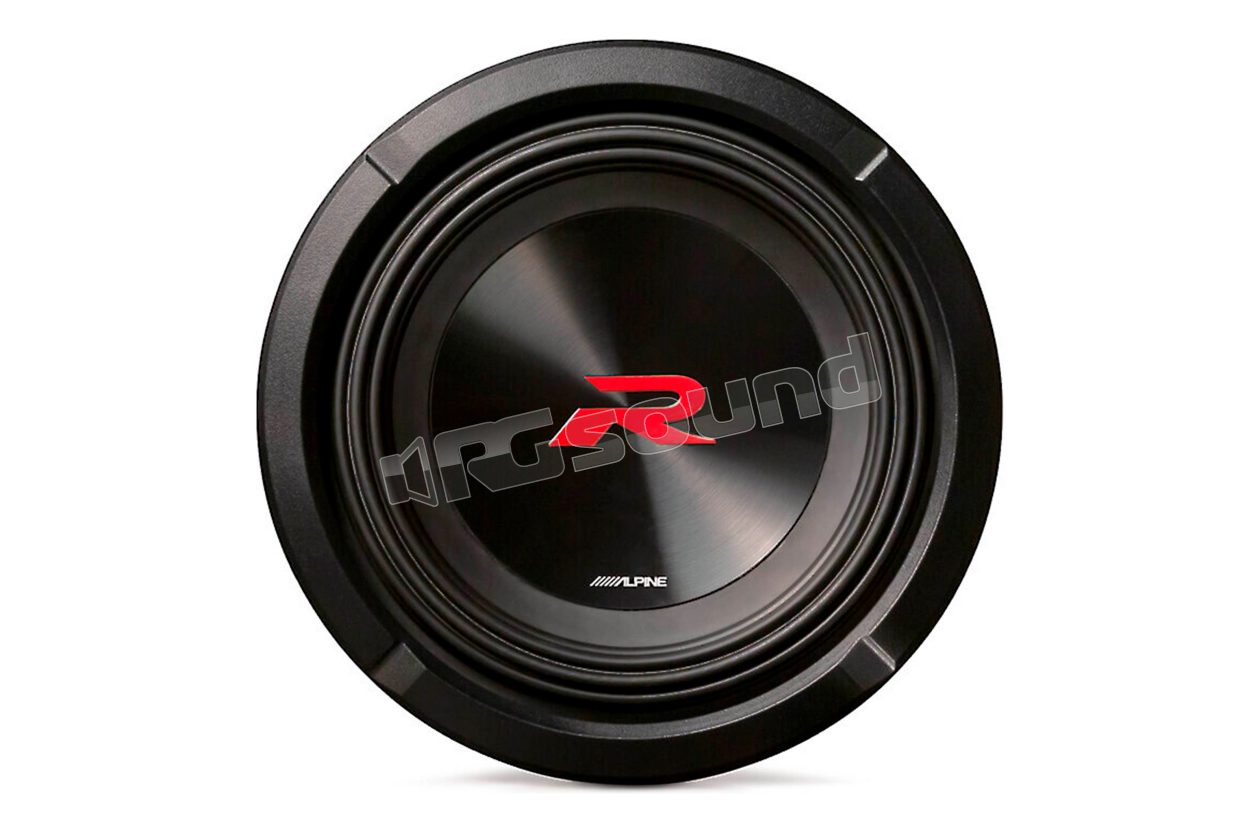

R2-W10D4 25cm subwoofer New R-Series

Alpine
Your price:
€ 249,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
2250 Watt
RMS Power
750 Watt
Frequency Response
26 - 200 Hertz
Sensitivity
82.4 dB
Impedance
4 + 4 Ohm
Installation Depth
152 mm
Woofer Material
Cellulosa rinforzato kevlar

Alpine R2-W10D4 10 inch (25 cm) subwoofer from the new R-Series with dual 4 Ohm voice coils and a maximum power of 2,250 Watts.

The new Alpine R-Series 2022 subwoofers deliver deep, clean and precise bass and are equipped with Alpine's HAMR Surround technology to ensure maximum cone excursion and power levels.

The new ceramic dust cap is very light and rigid and keeps distortion at an absolute minimum.

The new expanded motor structure ensures better overall woofer control for a powerful and clean bass response. The second generation R-series subwoofers now feature larger dual-layer magnets that contribute to increased motor force for deeper bass. An integrated Faraday ring minimizes distortion for cleaner low output. A Kevlar-treated cone ensures subwoofer durability for reliable performance, even at high volumes.

A new polypropylene/ceramic composite dust shield ensures rigidity while providing incredible internal damping (vibration absorption) to soften bass response and deliver precise bass. This unique, premium-quality material also has greater thermal reliability that ensures non-stop bass performance.

Alpine R2-W8D4 technical specifications

• Dual voice coil (DVC) subwoofer with configuration jumpers
• Polypropylene/ceramic composite dust cover
• High-performance subwoofer with kevlar-reinforced cellulose cone
• Twist-Lock grid mounting system
• H.A.M.R. (High-Amplitude Multi-Roll) surround
• Large dual-layer magnets
• 750 W RMS
• Peak power handling of 2,250 W
• Frequency response: 26Hz-200Hz
• Sensitivity (1W/1m): 82.4dB
• Nominal impedance: 4Ω + 4Ω
• Voice coil: 65 mm
• X-Max: 20 mm
• Magnet weight: 123 ounces
• Mounting depth: 6" (152 mm)
• Cutout dimensions: 9-1/16" (231 mm)
• Push-type speaker terminals (cable size up to 8 AWG)
• Complies with CTA-2031

Package contents

• 10" R-Series DVC subwoofer with trim ring
• 2 connection wires for DVC configuration
• User manual
