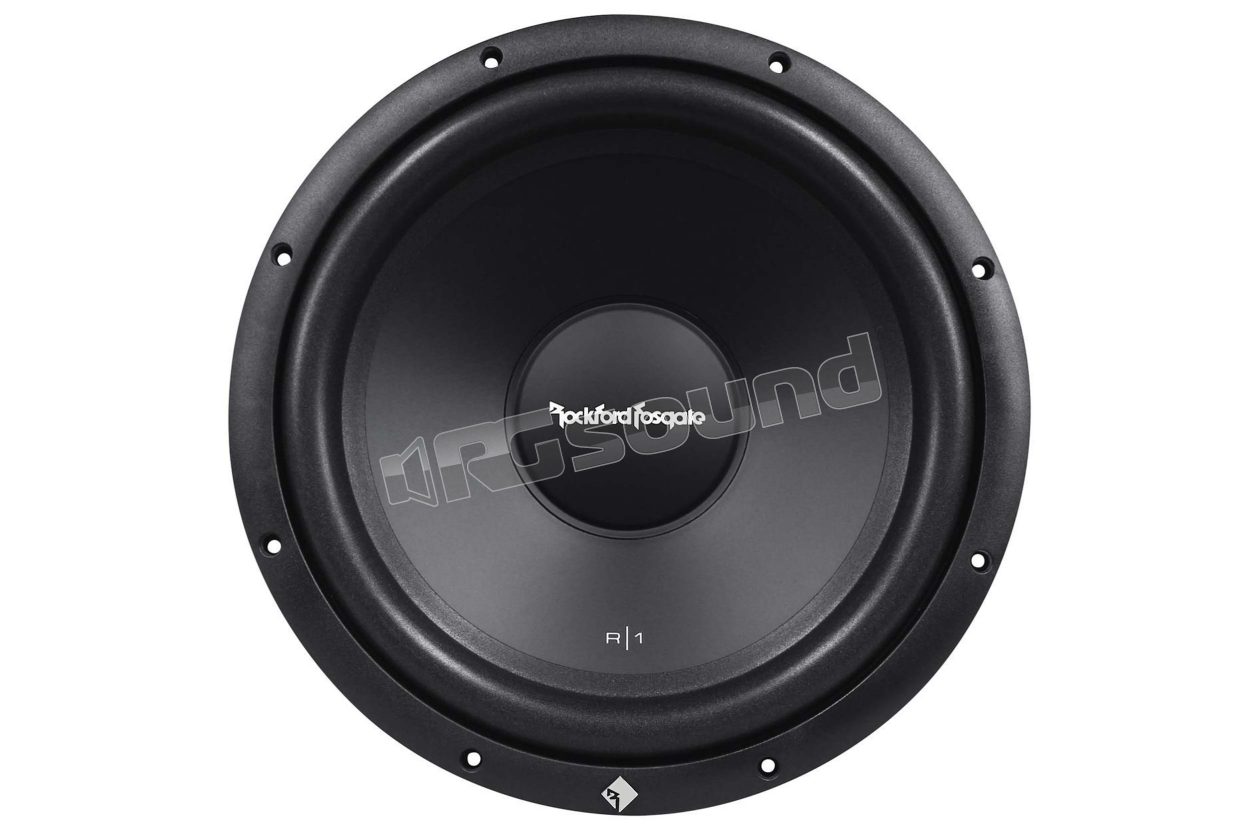

R1S4-12 30 cm Prime Series R1S subwoofer

Rockford Fosgate
Your price:
€ 93,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
23 ÷ 250 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
4,2 Kg
Installation Depth
125 mm

Rockford Fosgate R1S4-12 300mm Subwoofer Prime R1S Series

Rockford Fosgate Prime subwoofers provide high-performance bass with their excellent quality to price ratio, the R1S4-12 features a 4 Ohm single voice coil, a rated power handling of 150 W and a maximum power of 300 W.

General Features sub R1S4-12

  • Anodized aluminum voice coil
  • Parabolic polypropylene cone
  • 12 AWG compression terminals
  • Steel basket
  • Single voice inductor
  • Optimized for sealed enclosures

Rockford Fosgate was founded in 1973 and thanks to its continuous technical innovations today represents one of the most well-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official reseller for Italy, every Rockford Fosgate branded product purchased on the RGsound.it website enjoys the Italian warranty of two years from the moment of purchase.

R1S412 Specifications

Size:12"
Nominal Impedance:4-Ohm
Power Handling (Watts RMS):200 Watts RMS
400 Watts Max
Voice Coil Diameter:2.0" (4-Layer)
(50.8mm)
Magnet Weight (oz):40 oz. (1.13 Kg.)
Speaker Connector:12 AWG compression
Fs (Hz):30.5
Re (Ohms):3.5
Le (mH):2.1
Qms:7.97
Qes:0.59
Qts:0.54
Vas (Liters):90.4
Sd (cm2):530
SPL (dB @ 1w/1m):90
Xmax (mm):7.0
Woofer Displacement (in):0.101 cu. ft.
(2.86 Liters)


Cutout Diameter (in):11.22 in. (285 mm)
Mounting Depth (in):4.94 in. (125 mm)
Shipping Weight:9.25 Lbs. (4.19 Kg.)

Scheda tecnica

n-20170301123827-1230-58471-01-r1subs-man.pdf
