R1S4-10

Rockford Fosgate

Discontinued

Your price:
€ 85,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
24 - 250 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Weight
3,6 Kg
Installation Depth
116 mm

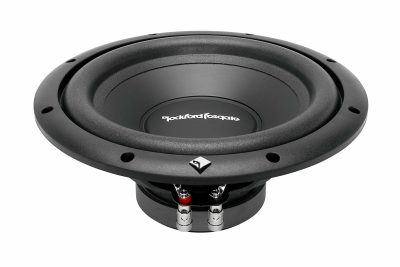

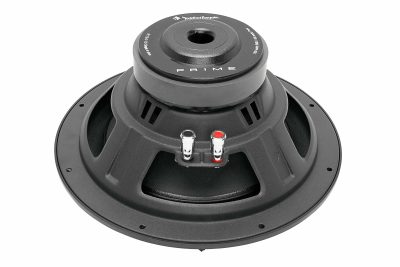

Rockford Fosgate R1S4-10 SVC subwoofer 25 cm - Prime R1 Series
R1S4-10 key features:
Rockford Fosgate subwoofers deliver high-performance bass, R1S4-10 has an impedance of 4 Ohm, single voice coil, and an RMS power of 200 Watt. Optimized for sealed and vented enclosures.
Reinforced and painted cellulose cone
Copper coil with aluminum former
High quality Y30 ferrite magnet
Nickel-plated spring pressure terminals integrated
Integrated ABS decorative surround ring
History:

Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating an amplifier dedicated to low impedances.

The technical innovations developed during the creation of amplifiers were also used in the development of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, the Rockford company established itself worldwide, initiating its global expansion. RGsound is the official reseller for Italy, every product bearing the Rockford Fosgate brand purchased on the RGsound.it website enjoys the Italian two-year warranty from the moment of purchase.

Today Rockford Fosgate represents one of the most recognized brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards.

R1S410 Specifications

Size: 25 cm

Nominal Impedance: 4 Ohm

RMS Power 200 Watt

Maximum Power 400 Watt

Voice Coil Diameter: 2.0" (50.8 mm)

Magnet Weight (oz): 34 oz. (0.96 Kg.)

Connectors: 12 AWG compression

Fs (Hz): 33.5

Re (Ohms): 3.5

Le (mH): 2.0

Qms: 8.55

Qes: 0.62

Qts: 0.58

Vas (Liters): 38.1

Sd (cm2): 336.5

SPL (dB @ 1w/1m): 87

Xmax (mm): 7.0

Woofer Displacement (in): 0.06 cu.ft. (1.80 Liters)

Shipping Weight: 7.6 Lbs. (3.4 Kg.)

Scheda tecnica

n-20160727125331-r1s410-r1s412-om.pdf
