Rockford Fosgate R1-HD4-9813 for Harley-Davidson 1998/2013

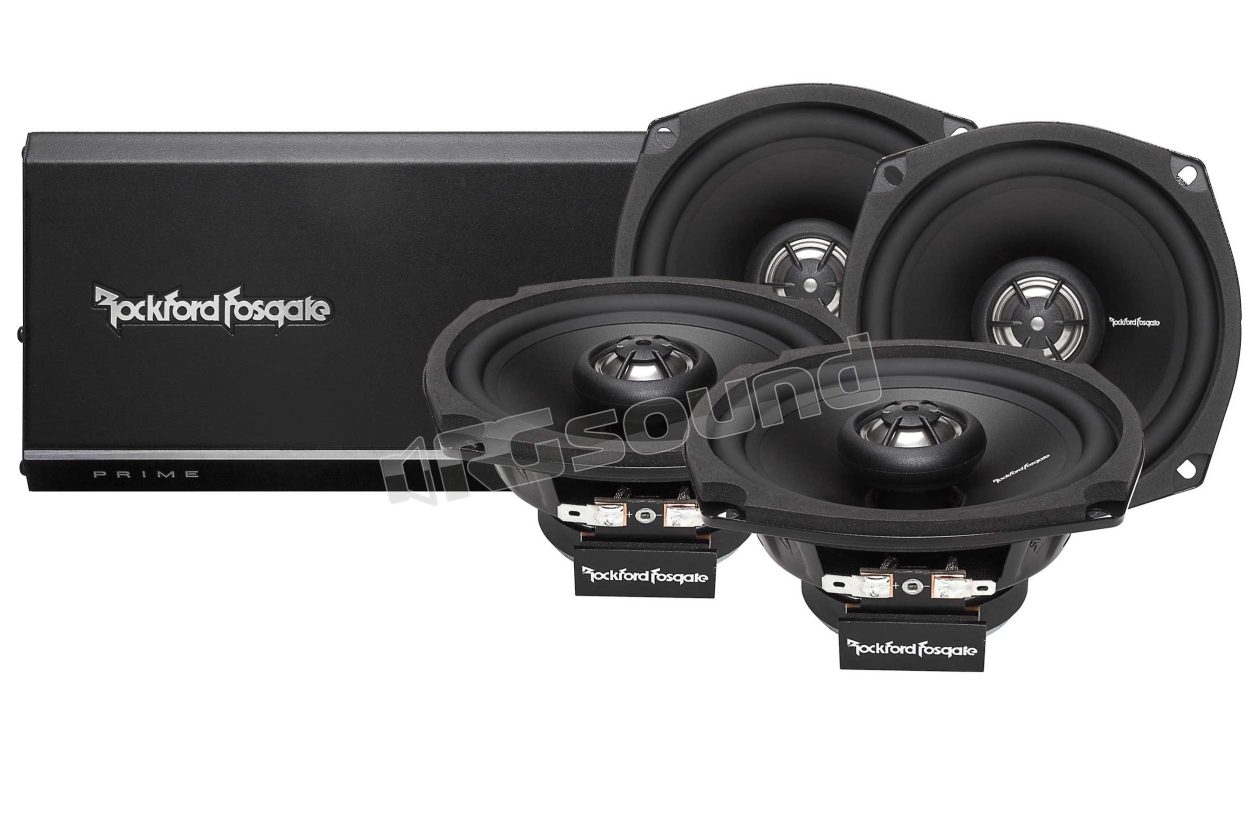

Kit consisting of 4 13cm speakers and four-channel amplifier dedicated for Harley-Davidson® (1998-2013)
R1-HD4-9813 is a speaker system with Class AB amplifier Prime Series, specifically designed for Harley-Davidson® motorcycles from 1998 to 2013.
Rockford Fosgate R1-HD4-9813 Features
  • Crossover, EQ and gain optimized
  • Output level control in three positions
  • Pass-Thru output for system expansion
  • Aluminum heat sink
  • 2/4 channel input switch
  • Short circuit protection
  • Thermal protection
  • Multiple mounting options
  • Includes all harnesses and hardware for complete installation
NOTE: may not be compatible with CVO and Screaming Eagle models

Manuale utente

n-20161201154604-1230-58708-01-prime-hd4-man.pdf

4-channel Class AB amplifier Four speakers (5.25") Amplifier mounting bracket Power wiring Input wiring Output wiring Screws Fasteners Zip ties Velcro pad Batwing Grille Badge

Rockford Fosgate R1-HD4-9813

  • Number of channels: 4
  • Rated power (RMS Continuous power): 40 Watt x 4 @ 2 Ohm
  • Total power (Sum of rated power): 160 Watt RMS
  • Frequency response: 80Hz to 16kHz +/- 1 dB
  • Crossover controls: Internally fixed
  • Signal input: High Level: 4 pin harness
  • Output signal: Pass-Thru: 4 pin wiring
  • Ouput Level Control: selectable -3dB, 0dB, + 3dB
  • Input power connector: 3 pin harness
  • Power wiring: 14 AWG
  • Speaker output connector: wiring
  • Speaker wiring: 18 AWG
  • Heat sink type: aluminum
  • Visual indicators: Power (Blue)
  • Circuit topology class: Class-D
  • Operating voltage: 9-16 VDC
  • Fuse: 15 A (mini ATM)
  • Max. current draw (13.8V Sinewave): 14 A
  • Average current (13.8V Music): 7.5 A
  • Speaker configuration: 2-way
  • Speaker diameter: 5.25 "(133 mm)
  • Speaker depth: 2.10 "(53.3 millimeters)
  • Rated impedance: 2-Ohm
  • Sensitivity (dB @ 1 watt / 1 meter): 88 dB
  • Weight: 5.2 Kg
  • Dimensions (H x W x D): 3.6 x 10.74 x 21.96 cm
