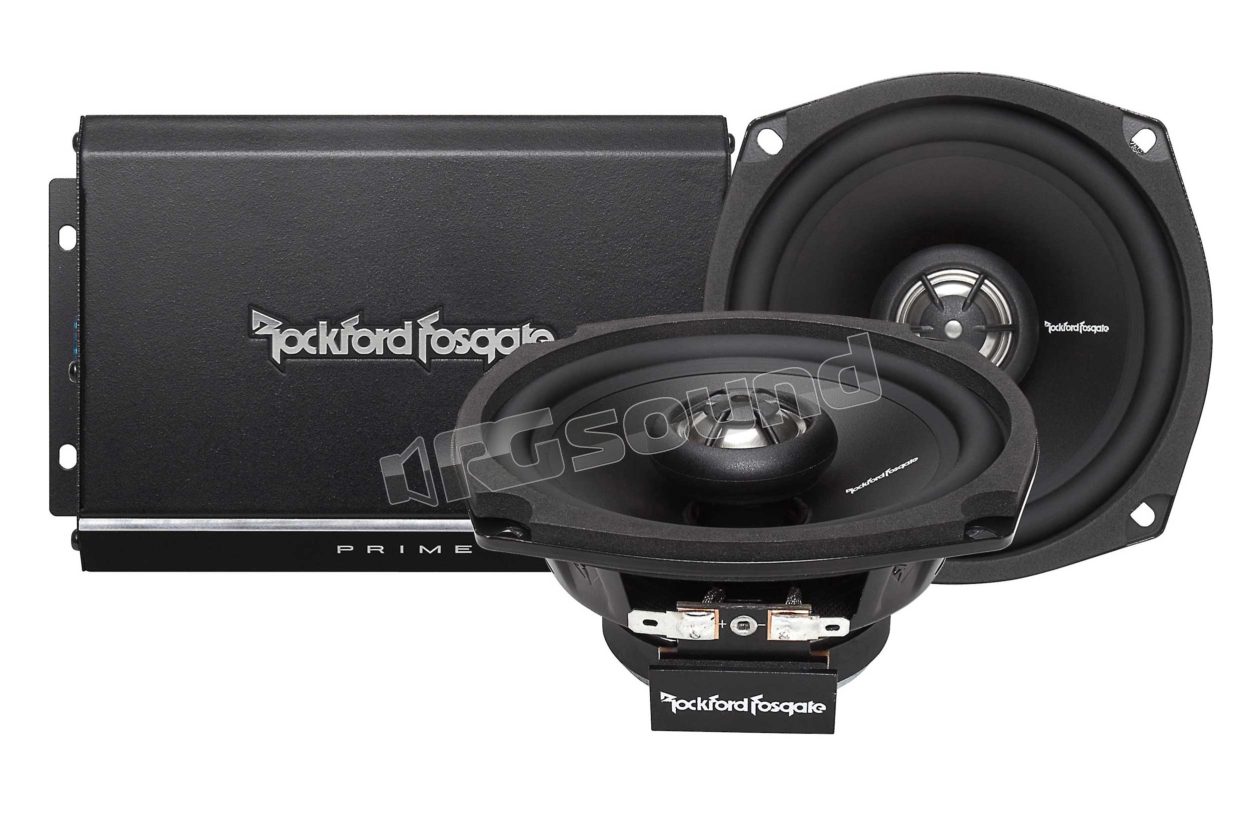

R1-HD2-9813 two-channel kit for Harley-Davidson

Rockford Fosgate

Discontinued

Your price:
€ 349,00
Price per single item (VAT included)

Rockford Fosgate R1-HD2-9813 kit with two-channel Prime Series amplifier, 140 watts power, dedicated for Harley-Davidson® (1998-2013)

R1-HD2-9813 is a speaker system with Class D amplifier, specifically designed for Harley-Davidson® motorcycles from 1998 to 2013.

Rockford Fosgate R1-HD2-9813 Features

Crossover, EQ and gain optimized
Three-position output level control
Pass-Thru output for system expansion
Aluminum heatsink
Short circuit protection
Thermal protection
Multiple mounting options
Includes all harnesses and hardware for complete installation
NOTE: may not be compatible with CVO and Screaming Eagle models

Rockford Fosgate R1-HD2-9813 Specifications

Number of channels: 2
Rated Power (RMS Continuous Power): 70 Watts x 2 @ 2 Ohm
Total Power (Sum of rated power): 140 Watts RMS
Frequency response: 95Hz to 20kHz +/- 1 dB
Crossover controls: Internally fixed
Signal input: High Level: 4 pin harness
Output signal: Pass-Thru: 4 pin wiring
Output Level Control: selectable -3dB, 0dB, + 3dB
Power input connector: 3 pin harness
Power wiring: 14 AWG
Speaker output connector: wiring
Speaker wiring: 18 AWG
Heatsink Type: aluminum
Visual indicators: Power (Blue)
Circuit Topology Class: Class-D
Operating voltage: 9-16 VDC
Fuse: 15 A (mini ATM)
Max. Current draw (13.8V Sinewave): 15 A
Average current (13.8V Music): 7.5 A
Speaker configuration: 2-way
Speaker diameter: 5.25 "(133 mm)
Speaker depth: 2.10 "(53.3 mm)
Nominal impedance: 2-Ohm
Sensitivity (dB @ 1 watt / 1 meter): 88 dB
Weight: 3.2 kg
Dimensions (H x W x D): 3.58 x 10.74 x 15.16 cm

Package contents:

- 2 channel Class D amplifier
- Two 5.25 "speakers
- Amplifier mounting bracket
- Power wiring
- Input wiring
- Output wiring
- Screws
- Zip ties
- Velcro pads
- Batwing Grille Badge

Manuale utente

n-20161201153211-1230-58707-01-prime-hd2-man.pdf
