R-W12D4

Alpine

Discontinued

Your price:
€ 219,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
2250 Watt
RMS Power
750 Watt
Frequency Response
24 - 200 Hertz
Sensitivity
87.4 dB
Impedance
4 + 4 Ohm
Installation Depth
275 mm
Woofer Material
Cono Kevlar

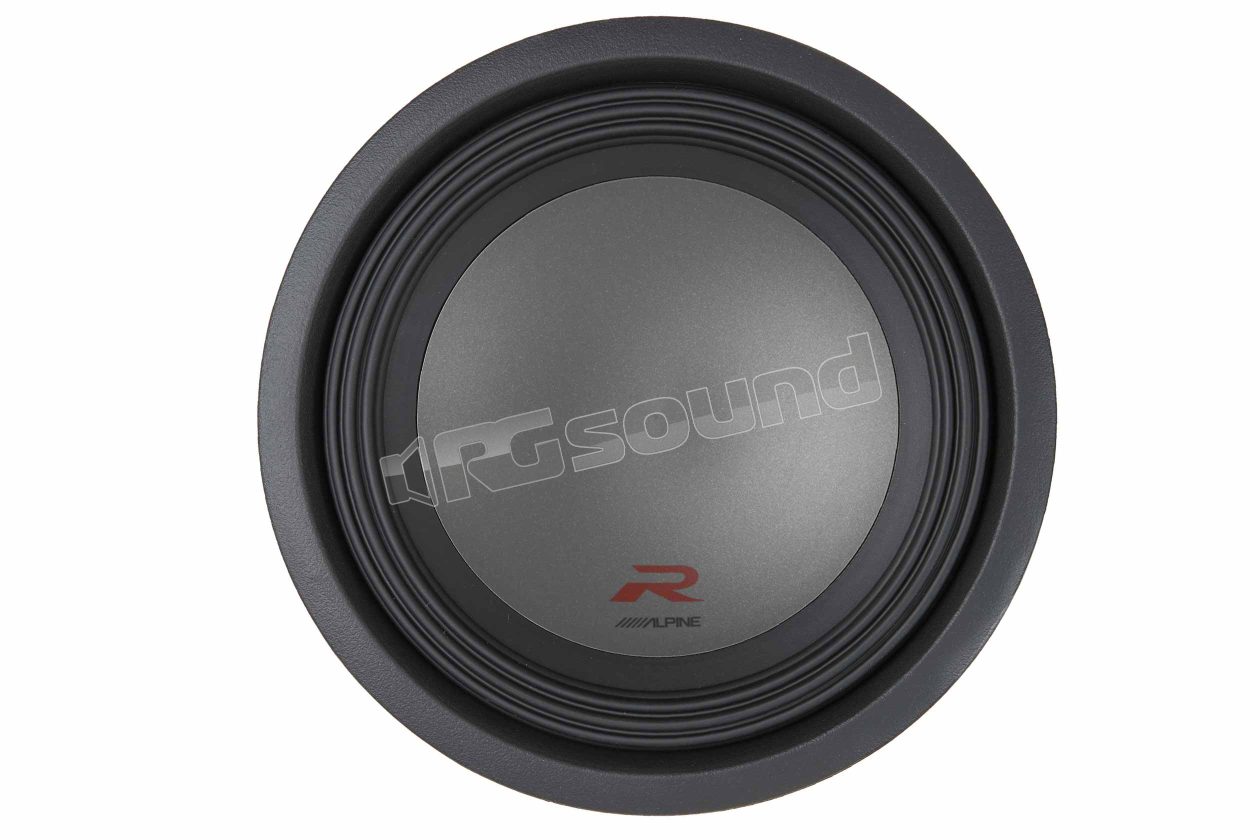

Alpine R-W12D4 30 cm (12") subwoofer new R Series, with dual 4 Ohm voice coil

The R-W12D4 subwoofer features a mica pulp cone with a parabolic shape that maintains its rigidity and resistance for exceptional response and accuracy. The rubber surround supports the cone in the aluminum die-cast frame, while Alpine's latest technology allows to move an incredible amount of air without overheating the voice coil thanks to the new ventilation circuit.

The new R Series was built on the characteristics of the Type R that over the years has received numerous positive reviews. Thanks to the key design selected and improvements made to the construction, the new subwoofers are able to produce greater extension and control of even deeper bass. R-W12D4 is equipped with a Kevlar cone for increased durability. The combination of this cone with the Santoprene surround allows the subwoofer to offer 19 mm of X-max, for incredible and punchy bass. A new method for connecting the spider and cone to the voice coil ensures not only rigidity throughout the motor structure, but helps increase subwoofer precision.

Talc, a common mineral used in products like baby powder and paint, has been shown to have incredible damping properties while being less dense than the traditional Mica filler used in dust caps. By adding a calculated amount of talc to the mica polypropylene in the dust cap of the R-W12D4, Alpine has increased vibration absorption of the cap while reducing density. The resulting lighter dust cap contributes to faster attack and more accurate reproduction of low frequencies.

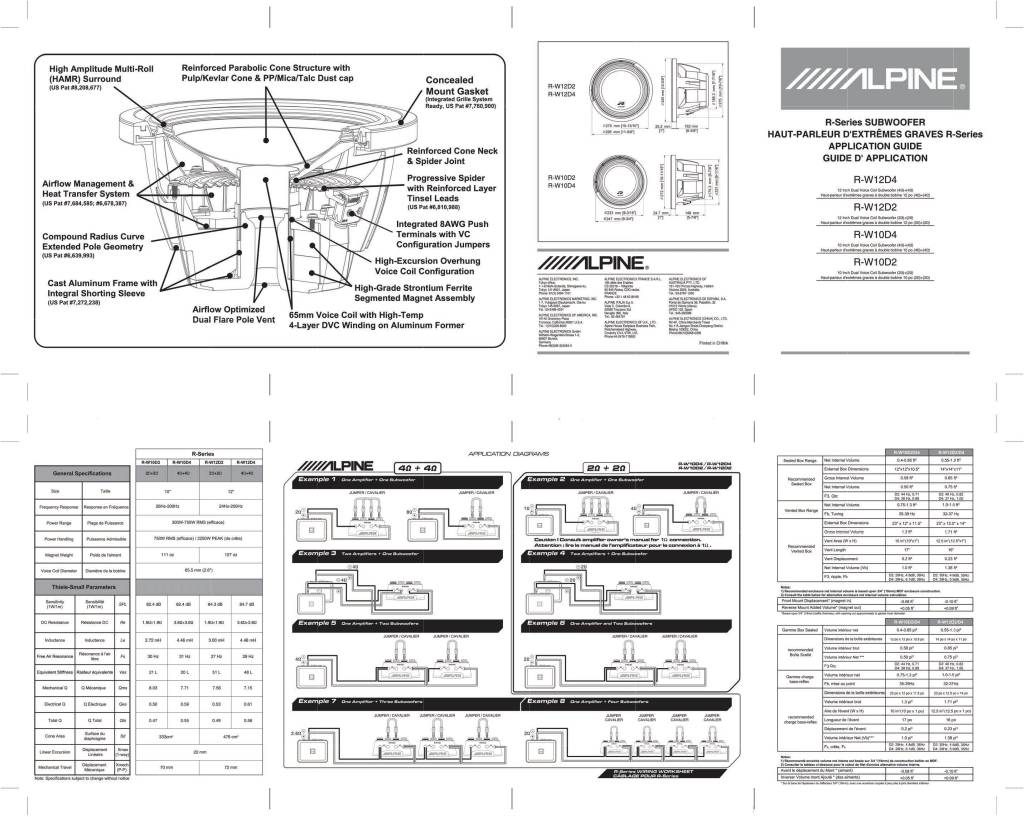

Manuale utente

n-20180116140958-om-r-w10d4-r-w10d2-r-w12d4-r-w12d2-en.pdf

Alpine R-W12D4 Technical Specifications

  • Oversized Poly Mica Dustcap with Talc
  • Kevlar reinforced paper cone
  • Injection molded Santoprene surround
  • Dual voice coil high temperature resistant wire 180°
  • FEA optimized design with composite radius polar geometry
  • Radial vented VC radiator and air flow management system (patent no. 7,634,101)
  • Die-cast aluminum frame
  • Gasket system for recessed mounting
  • Power handling
  • Rated power 750 W RMS
  • Maximum power 2250 W
  • Frequency response: 24 Hz - 200 Hz

Dimensions:

  • Mounting depth: 162 mm
  • Mounting diameter: 275 mm
  • Displacement: 0.10 cu. ft.
  • Added volume: 0.09 cu. ft. (reverse mounting, magnetic output)
Discontinued
