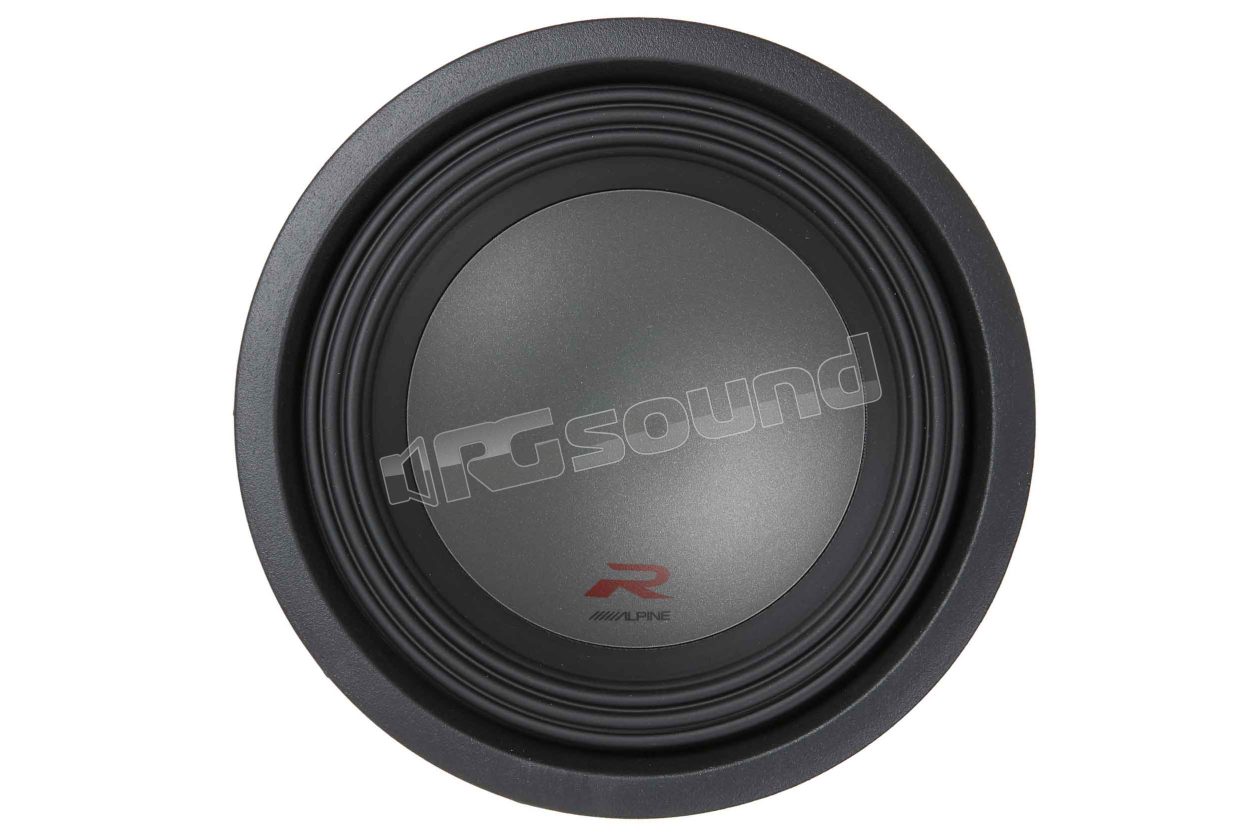

R-W10D4 25 cm dual voice coil sub 4 + 4 Ohm

Alpine

Discontinued

Your price:
€ 215,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
2250 Watt
RMS Power
750 Watt
Frequency Response
26 -200 Hertz
Sensitivity
82.4 dB
Impedance
4 + 4 Ohm
Installation Depth
149 mm
Woofer Material
Cellulosa rinforzata in Kevlar

Alpine R-W10D4 subwoofer 25 cm (10") new R Series, with dual 4 Ohm voice coil

This subwoofer features a mica pulp cone with a parabolic shape that maintains its rigidity and resistance for exceptional response and accuracy. The rubber surround supports the cone in the aluminum die-cast frame, while Alpine's latest technology allows the X-W10D4 to move an incredible amount of air without overheating the voice coil thanks to the new ventilation circuit.

The new R Series has been built on the characteristics of the Type R that over the years has received numerous positive reviews. Thanks to the key design selected and improvements made to construction, the new subwoofers are able to produce greater extension and control of even deeper bass.

The R-W10D4 is equipped with a Kevlar cone for increased durability. The combination of this cone with the Santoprene surround allows the subwoofer to deliver 19 mm of X-max, for incredible and punchy bass. A new method for connecting the spider and cone to the voice coil ensures not only rigidity throughout the motor structure, but helps increase the accuracy of the subwoofers.

Talc, a common mineral used in products such as baby powder and paint, has proven to have incredible damping properties while being less dense than the traditional Mica filler used in dust caps. By adding a calculated amount of talc to the mica polypropylene in the dust cap of the R-W10D4, Alpine has increased the vibration absorption of the cap while reducing density. The resulting lighter dust cap contributes to faster attack and more accurate reproduction of low frequencies.

Alpine R-W10D4 Technical Features

Oversized Poly Mica Dustcap with Talc

Kevlar reinforced paper cone

Santoprene surround molded by injection

Dual voice coil with high temperature resistant wire 180°

Optimized FEA design with composite radius polar geometry

Radial vented VC radiator and air flow management system (patent no. 7,634,101)

Aluminum die-cast frame

Flush mount gasket system

Power management

Rated power 750 W RMS

Maximum power 2250 W

Frequency response: 26Hz - 200 Hz

Dimensions:

Mounting depth: 149 mm

Mounting diameter: 231 mm

Displacement: 0.10 cu. ft.

Added volume: 0.09 cu. ft. (reverse mounting, magnetic output)

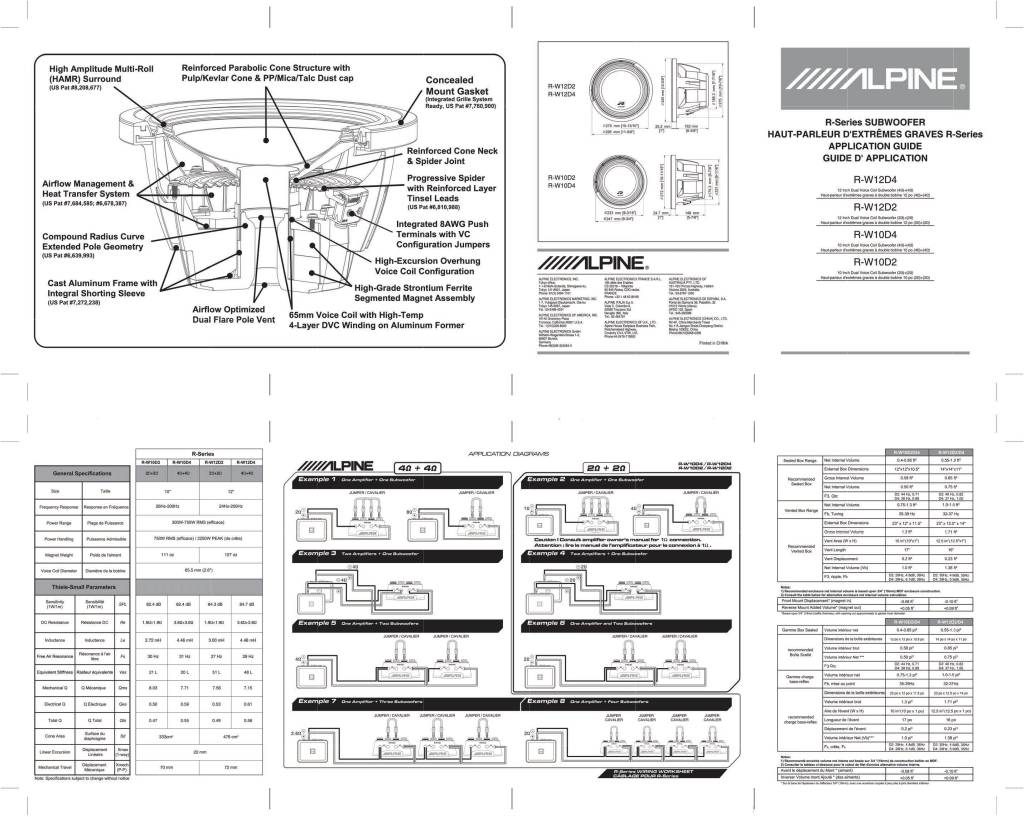

Manuale utente

n-20180126170452-om-r-w10d4-r-w10d2-r-w12d4-r-w12d2-en.pdf
