R-W10D2 25 cm dual voice coil sub 2 +2 Ohm

Alpine

Discontinued

Your price:
€ 219,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
2250 Watt
RMS Power
750 Watt
Frequency Response
26 -200 Hertz
Sensitivity
82.4 dB
Impedance
2 + 2 Ohm
Installation Depth
149 mm
Woofer Material
Cellulosa rinforzata in Kevlar

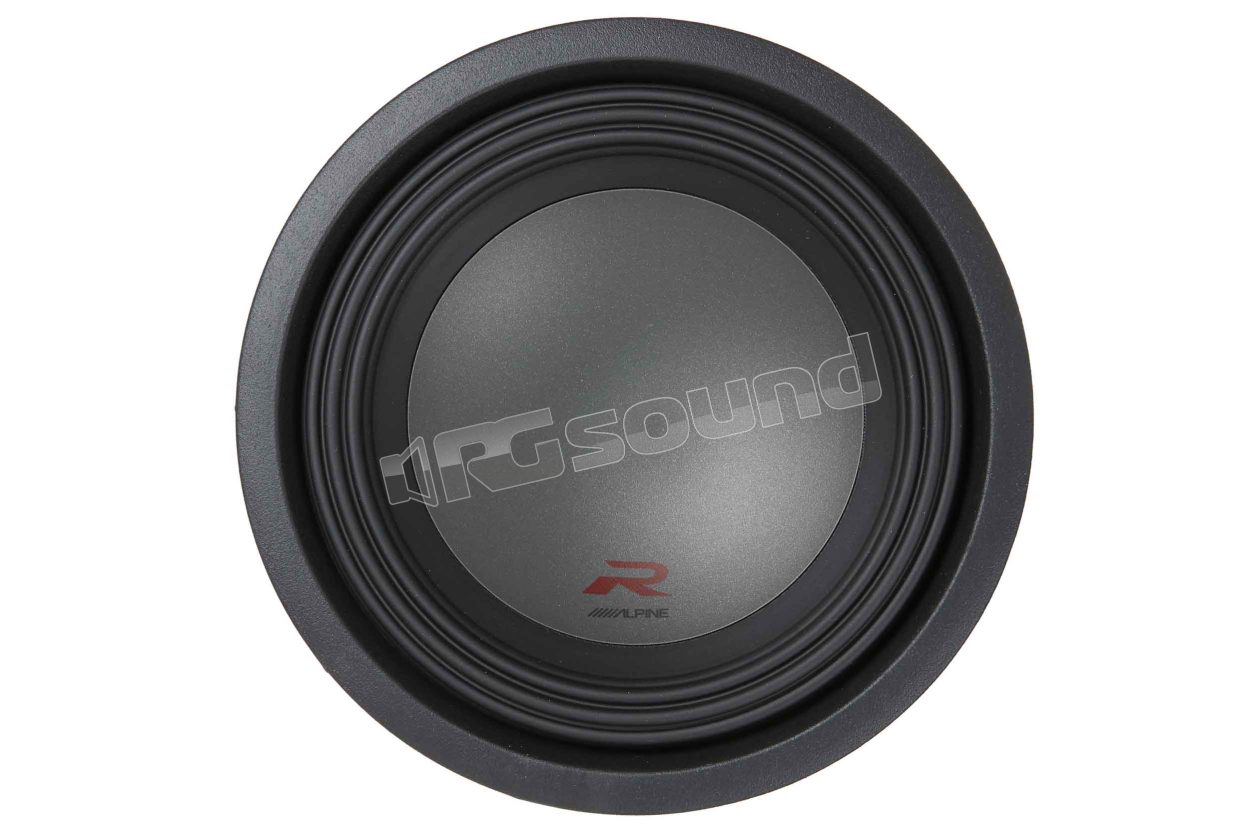

Alpine R-W10D2 subwoofer 25 cm (10") new Series R, with dual 2 Ohm voice coil

This subwoofer features a mica pulp cone with a parabolic shape that maintains its rigidity and strength for exceptional response and accuracy. The rubber surround supports the cone in the aluminum die-cast frame, while Alpine's latest technology allows the X-W10D2 to move an incredible amount of air without overheating the voice coil thanks to the new ventilation circuit.

The new Series R was built on the characteristics of the Type R which has received numerous positive reviews over the years. Thanks to the key design selected and improvements made to the construction, the new subwoofers are able to produce greater extension and control of even deeper bass.

R-W10D2 is equipped with a Kevlar cone for increased durability. The combination of this cone with the Santoprene surround allows the subwoofer to offer 19 mm of X-max, for incredible and punchy bass. A new method for connecting the spider and cone to the voice coil ensures not only rigidity across the entire motor structure, but helps increase the precision of the subwoofers.

Talc, a common mineral used in products such as baby powder and paint, has been shown to have incredible damping properties while being less dense than the traditional mica filler used in dust caps. By adding a calculated amount of talc to the mica polypropylene in the dust cap of the R-W10D2, Alpine increased the vibration absorption of the cap while reducing density. The resulting lighter dust cap contributes to faster attack and more accurate reproduction of low frequencies.

Alpine R-W10D2 technical specifications

Oversized Poly Mica dust cap with talc

Kevlar reinforced paper cone

Injection molded Santoprene surround

Dual voice coil high temperature resistant wire 180°

Optimized FEA design with compound radius polar geometry

Radial vented radiator VC and air flow management system (patent no. 7.634.101)

Aluminum die-cast frame

Gasket system for flush mount

Power management

Nominal power 750 W RMS

Maximum power 2250 W

Frequency response: 26Hz - 200 Hz

Dimensions:

Mounting depth: 149 mm

Mounting diameter: 231 mm

Displacement: 0.10 cu. ft.

Added volume: 0.09 cu. ft. (reverse mount, magnetic output)

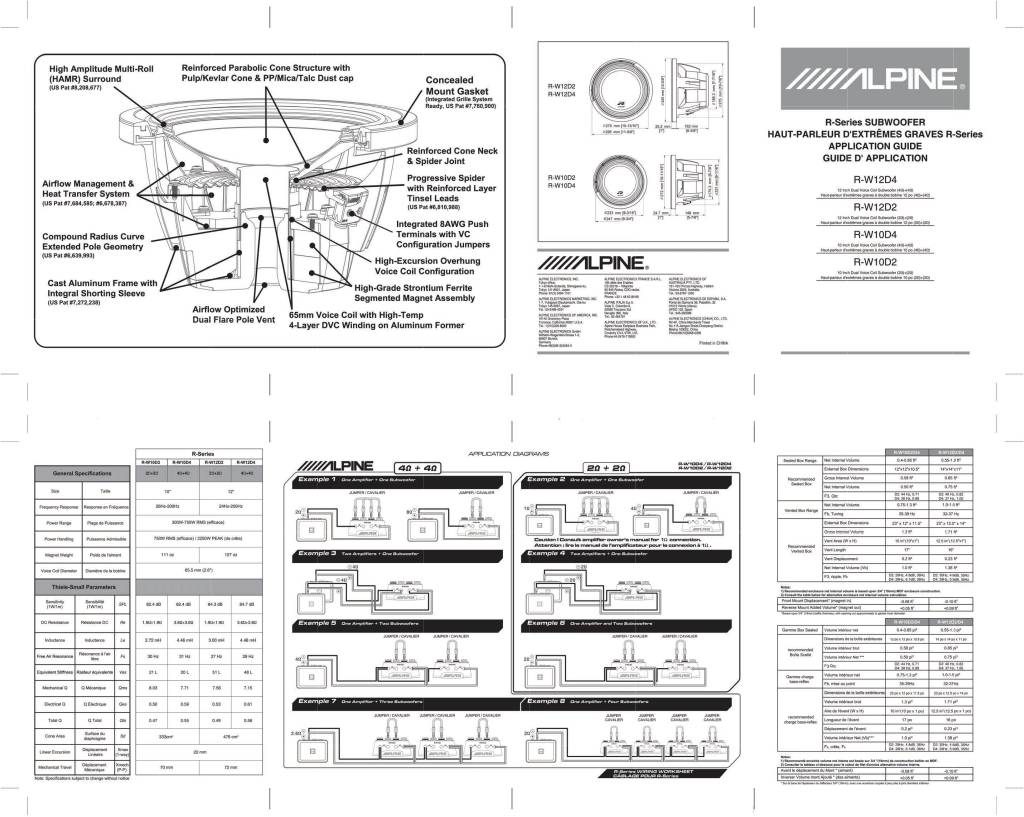

Manuale utente

n-20180126170452-om-r-w10d4-r-w10d2-r-w12d4-r-w12d2-en.pdf
