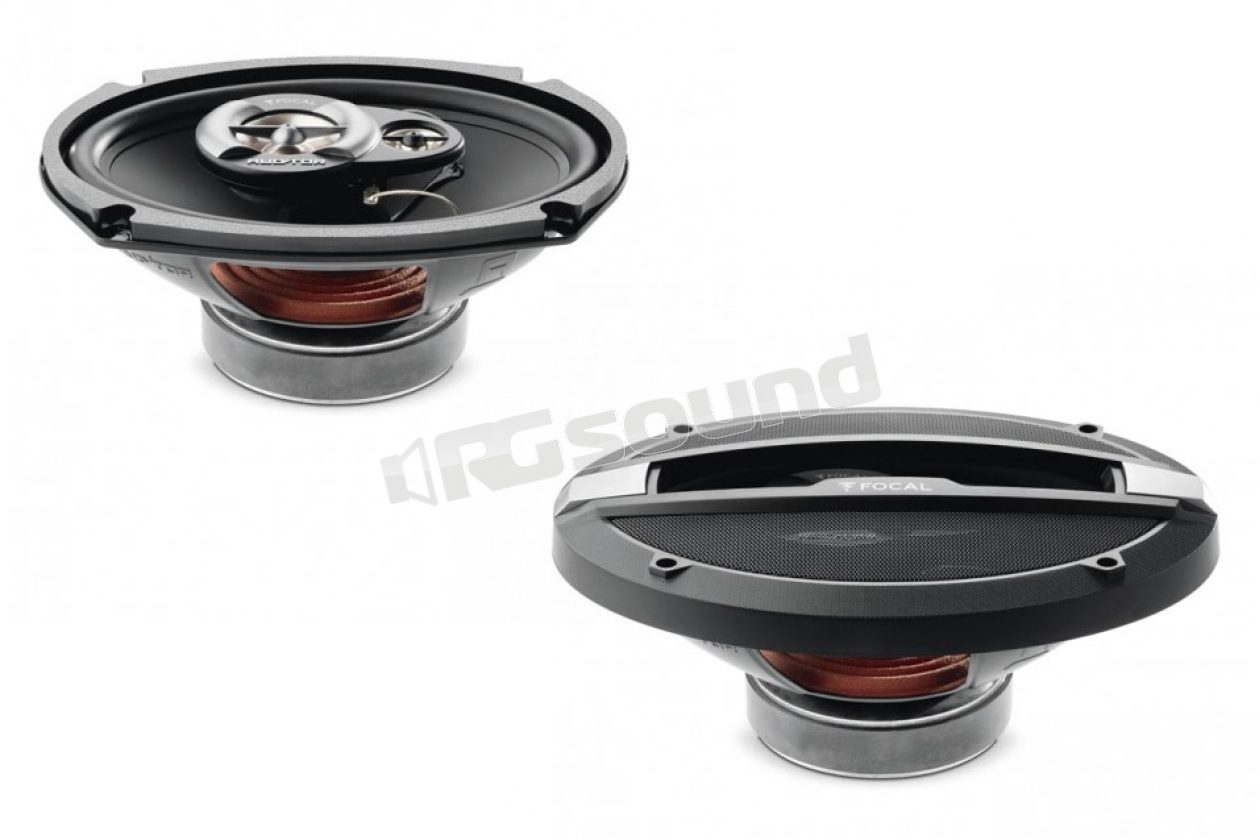

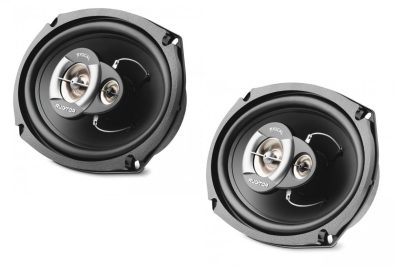

R-690 C 6x9 three-way coaxial speakers

Focal

Discontinued

Your price:
€ 75,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
3-way
Frequency Response
50 - 20.000 Hertz
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Polipropilene
Tweeter Material
Mylar

Focal R-690 C 3-way coaxial kit 6x9" diameter from the Auditor line. Natural and dynamic sound, good power enclosed in compact dimensions. Grilles included.

FOCAL Technologies

The R-690C kit is composed with the exclusive Focal technologies used for the Auditor line: special rubber suspension for high resistance, polypropylene cone renowned for its robustness and mylar tweeter.

R-690 C Specifications

Nominal power 80W RMS
Maximum power 160W
Sensitivity (2.83V/1m) 92dB
Cone Polypropylene
Surround Rubber
Nom. impedance 4 Ω
DC resistance 3.4 Ω
VC diameter 35mm
VC height 8mm
Former Kapton
Layers 2
Wire Copper
Xmax ± 3.5mm
Magnet d x h 110mm x 20mm
Flux density 1.3T
Gap height 4mm
Net weight 1800g

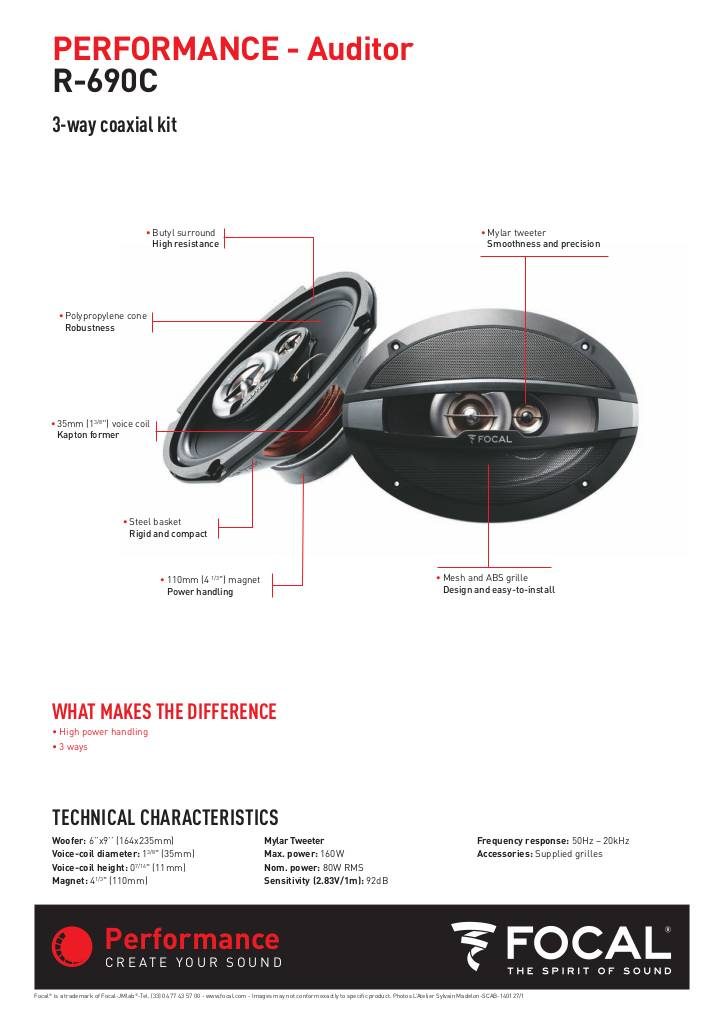

20150914112407-r-690c-scheda.pdf
