QXS6.3C Dedicated speaker system for Mercedes Sprinter

ESX
Your price:
€ 287,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
80 millimetri
Tweeter Size
25 millimetri
MAX Power
180 Watt
RMS Power
90 Watt
Frequency Response
50 - 24.000 Hertz
Impedance
3 Ohm

ESX QXS6.3C Speaker system dedicated to Mercedes-Benz Sprinter

  • 2-way system 16 cm + dedicated center speaker for Mercedes-Benz Sprinter model W907 from 2018
  • Power 2 x 90 + 1 x 25 W RMS / 2 x 180 + 1 x 50 W max • Impedance 3 Ohm
  • 25 mm fabric tweeter • 160 mm bass with reinforced fiber membrane
  • 6 dB in-line crossover included with cable
  • Mounting dimensions and adapter cables specific to the vehicle
  • Center speaker with dual voice coil for emergency call function
  • Installation depth 59 mm
  • Installation hole 143 mm

Compared to original Mercedes speakers, the improvement is clearly noticeable and ensures relaxation on every trip. The lightweight ESX drivers for midrange-bass with ABS baskets fit perfectly into the original door openings without needing additional adapter rings. The 16 cm woofers offer powerful bass down to 50 Hz.

The baskets are equipped with integrated connectors to accommodate the speaker connectors factory-mounted in the vehicle. With a surprising efficiency of 93dB/2.83V/1m and a load impedance of 3 ohms, the 2-way ESX Quantum component set is a feast for the eyes.

The center speaker has the same high-quality reinforced fiber membrane as the woofer and, compared to the original center speaker, has significantly improved voice reproduction in the midrange, particularly important for speech and singing. Of course, the ESX center speaker is equipped with the SOS function built into the vehicle. In the high frequency range, 25 mm neodymium tweeters with silk dome are used. They sound very clean and with high resolution up to 24,000 Hz. Integrated in the connecting cable is a 6 dB crossover that ensures very clean separation at 3500 Hz.

Scheda Tecnica

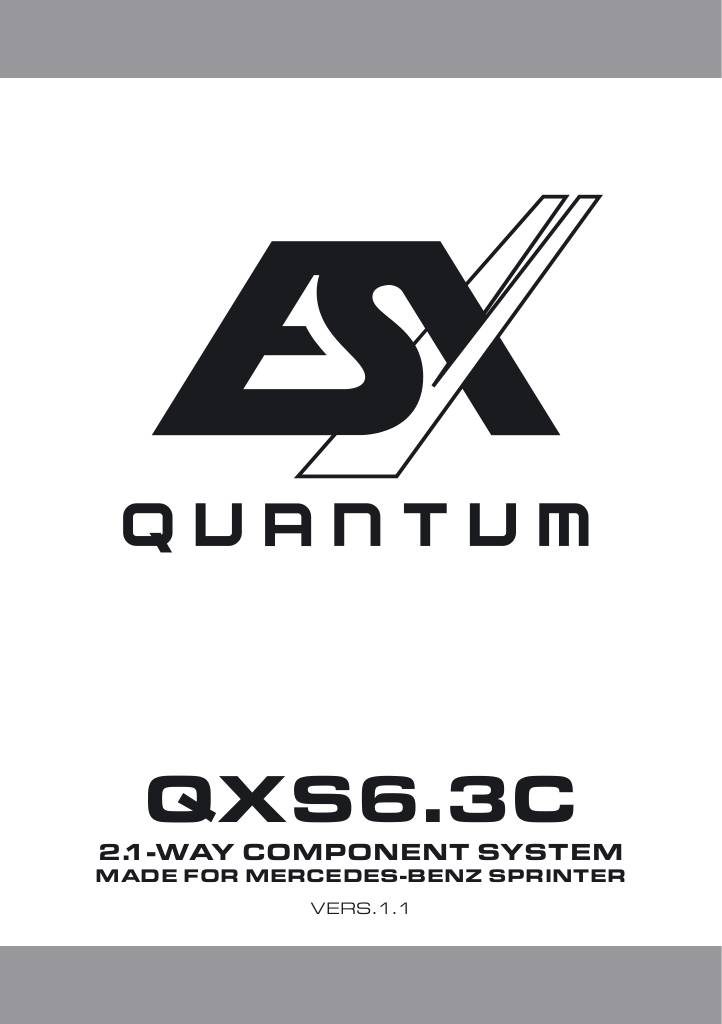

n-20240522173005-qxs6-3c.pdf

ESX QXS6.3C Technical Specifications

  • 2.1-way component system 16 cm (6") + 8 cm (3")
  • 90 Watt/RMS, 180 Watt/Max., Impedance 3 Ω
  • Frequency range 50 - 24000 Hz
  • 2 midbass speakers 160 mm with fiber-reinforced cone
  • 2 neodymium tweeters with silk dome 25 mm
  • 2 crossover cables 6 dB
  • 1 center speaker 80 mm (3") with SOS function
  • 1 cable crossover for center speaker (audio signal)
  • 25 Watt/RMS, 50 Watt/Max., Impedance 3 Ω
  • Plug+Play connectors
€ 287,00 Price incl. VAT
